Description
Electronic water stop - to protect against water damage (no interruption of water supply in case of power failure). Ball valve with external thread M 1" for combined size ¾" +1" and M 1 ½" for combined size 1 ¼" and 1 ½". (*max. distance to BWT Perla 30 m).
1. Intended use

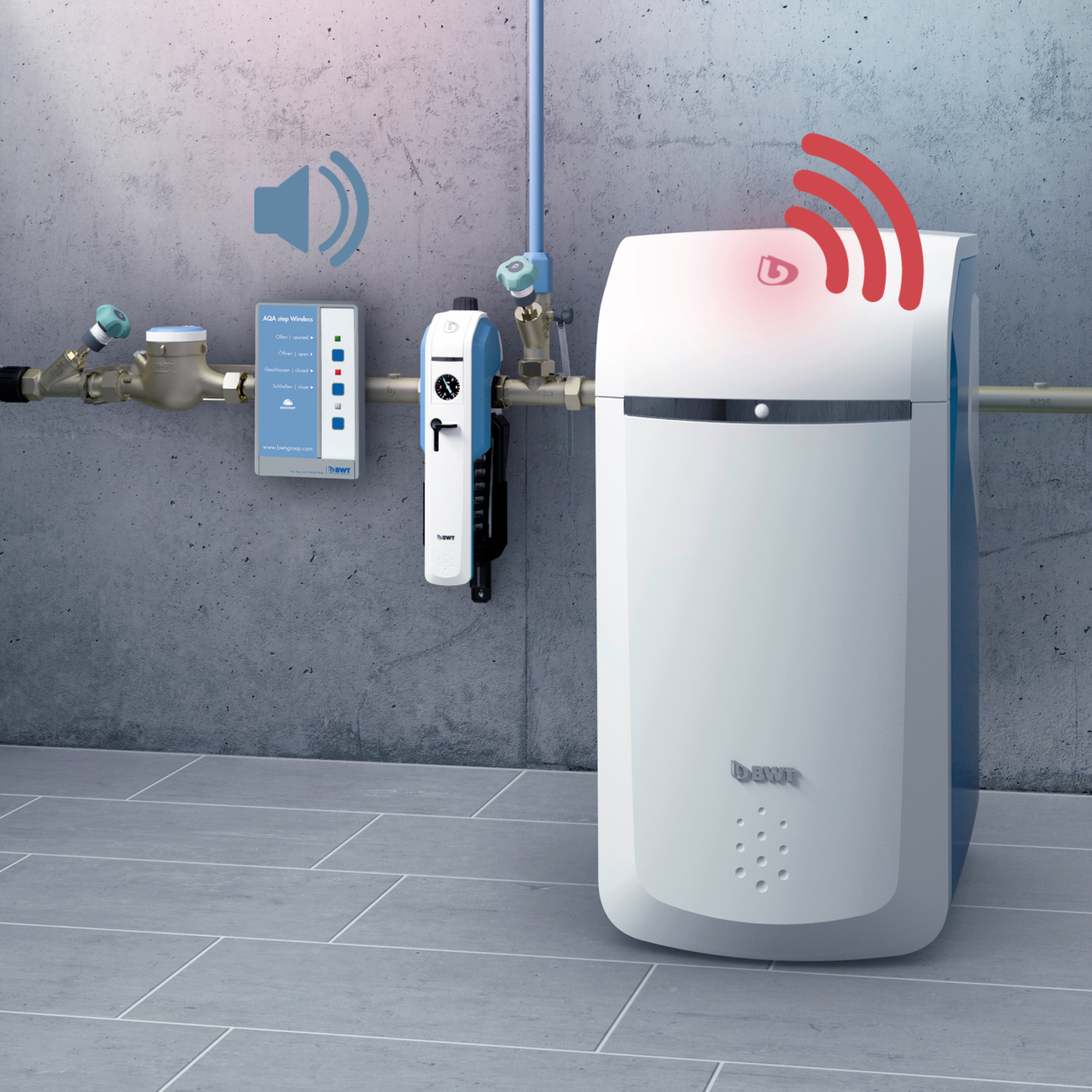

For opening and closing a water-carrying line in buildings manually or through remote control after an event is reported by the floor sensor(s). AQA stop Wireless comprises a shut-off valve and control unit with a power supply and EnOcean® wireless module. The shut-off valve comprises a ball valve that is certified for use with drinking water and includes an electric motor that is integrated into the water-carrying line. Four designs with suitable connections are available for a variety of line diameters: G ¾", G 1", G 1¼" and G 1½" connection thread. The shut-off valve for the water-carrying line can be opened and closed in three different ways: – By mechanically opening and closing the shut-off valve using the control lever – By electrically opening and closing the shut-off valve using buttons on the control unit – By closing the shut-off valves via the floor sensors The control unit is in constant contact with the programmed floor sensors. An event message is triggered if a leakage is detected by the floor sensors (for example, due to leaking household devices or a burst pipe in a water line). The water line is then closed by the AQA stop Wireless to prevent any more water from escaping.
2. Function
If the floor sensor comes into contact with water, the AQA stop Wireless cuts off the water supply after about 6 minutes. This minimizes water damage that can occur due to pipe bursts and pipe cracks.
3. List of supplied parts

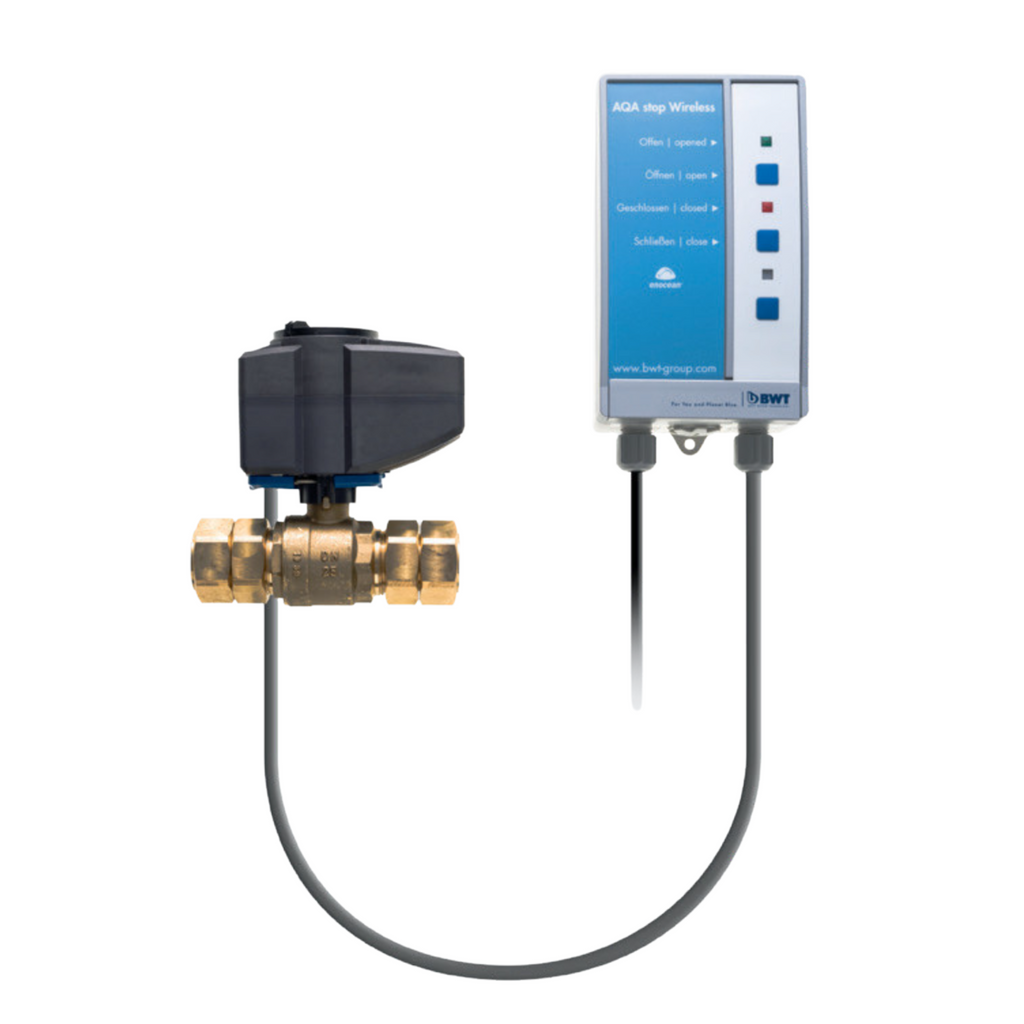

AQA stop Wireless comprising:
- Brass shut-off valve with drinking water certification.
- Control unit with power supply and EnOcean wireless module and 0.9 m mains cable.

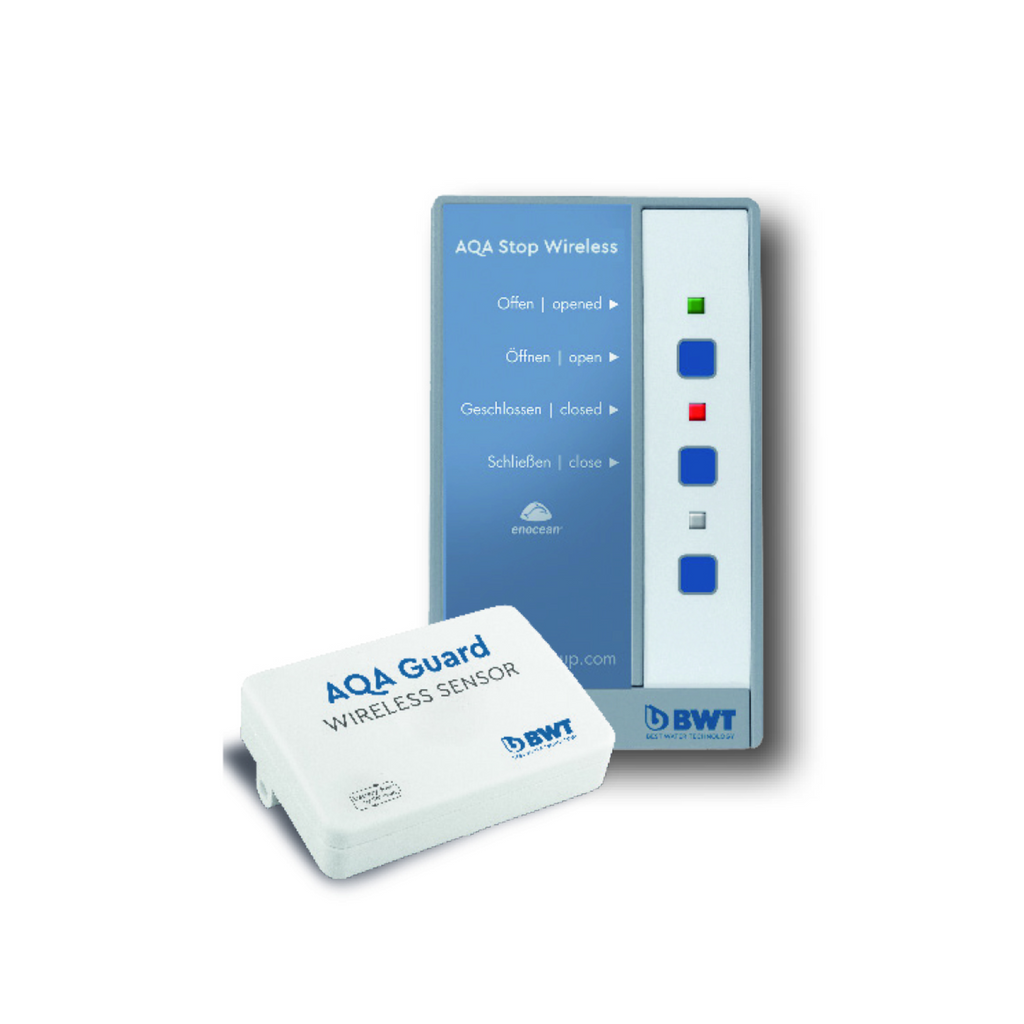

- Floor sensor with EnOcean technology.
4. Installation conditions
The range of the floor sensor depends on the materials installed in the building. The unit requires a constant power supply. Observe all applicable installation regulations, general guidelines and technical specifications. An earthed power socket is required for the electrical connection.
5. Functional and warranty conditions
This BWT product requires regular functional monitoring, maintenance and replacement of important parts after certain intervals. See the installation and operating instructions for the maintenance intervals.
6. Technical data
| Parameters | Value |
| General data | |
| Housing dimensions (W x H x D) | 100 x 188 x 65 mm |
| Weight | 430 g |
| Mains cable length | 1.35 m |
| Housing material | ABS |
| Intended temperature range | |
| Environment | -10° C to +50° C |
| Storage | -10° C to +80° C |
| Power supply | |
| Rated voltage | 100 to 240 V AC ± 10%, 50 to 60 Hz, 0.1 A |
| Nominal output | Motor at standstill: < 2 VA |
| Motor running | < 5 VA |
| Electrical safety | |
| Tested in accordance with | EN 60730-1: 2012-10 |
| Protection class | II EN 60730-1 |
| Protection class | IP 40 EN 60529 |
| Attachment method for permanently connected lines | Type M |
| Operating principle | Type 1 |
| Pollution degree | PD II |
| Rated surge voltage | 2500 V |
| Temperature for ball pressure test | 100° C |
| Electromagnetic compatibility (EMC) | |
| Interference emission | EN 61000-6-4 |
| Interference resistance | EN 61000-6-2 |
| EnOcean® wireless technology | |
| Frequency | 868.3 MHz |
| Transmission power | Max. 10 mW |
| Range | See manual |
| EnOcean Equipment Profile (EEP) | D2-A0-01 |
| Directive 1999/5/EC on radio equipment and telecommunications terminal equipment | EN 301489-3, EN 300220-1, EN 300220-2, EN 50371 |
6.1. Spare parts and accessories
| Product/part name | Order no. |
| AQA stop Wireless G ¾" + G 1ʺ | 11775 |
| AQA stop Wireless G 1¼" + G 1½"ʺ | 11774 |
| AQA Guard Sensor | 11772 |
Technical data
| Parameters | G ¾" | G 1" | G 1¼" | G 1½" |
| General data | ||||
| Electric motor dimensions (W x H x D) | 108 x 188 x 59 mm | 108 x 188 x 59 mm | 108 x 188 x 59 mm | 108 x 188 x 59 mm |
| Dimensions of connections (Ø) | 2x ¾" internal thread | 2x 1" internal thread | 2x 1¼" internal thread | 2x 1½" internal thread |
| Installation length ± 5 mm | 144 | 156 | 184 | 184 |
| Weight | 1,2 kg | 1,3 kg | 1,9 kg | 2 kg |
| Connection cable length | 0.9 m | 0.9 m | 0.9 m | 0.9 m |
| Run time around 90° (s) | < 5 | < 5 | < 5 | < 5 |
| Power supply | 24 V DC | 24 V DC | 24 V DC | 24 V DC |
| Drinking water certification in accordance with | DVGW | DVGW | DVGW | DVGW |
| Intended temperature range | ||||
| In operation | 0° C to +50° C | |||
| Medium | 4° C to +80° C | |||
| Storage | -30° C to +85° C | |||
| Electrical safety | ||||
| Protection class |
III EN 60730-1 |
|||
| Protection class | IP 40 EN 60529 | |||
| Electromagnetic compatibility (EMC) | ||||
| Interference emission | EN 61000-6-4 | |||
| Interference resistance | EN 61000-6-2 |
*Precision of the overall system based on the filling level indicator in mm: < ±1.5% FSO, IEC 60770
