Description
AQUADIAL SOFTLIFE SERIES
THE PERFECT FEELING OF WELLNESS, PROTECTION AND COMFORT
Perfect softened water is great for the whole family. Tough on scale and scum, kitchen and bathroom cleaning time is reduced, leaving more free time for you and the family. Luxuriously silky water will bring a new dimension to washing, bathing and showering. Used shampoo, soaps and detergents wash away more easily leaving your hair clean and shiny and clothes soft to the touch. The BWT AQUADIAL softlife also protects your home and all your equipments from the damaging effects of limescale. Washing-machines, dishwashers and other similar appliances will be protected and continue to operate for many years.
KEY FEATURES
- Able to operate under low pressure conditions (>1.5 bar)
- Compact, solid design for high sediment conditions
- Smart computerized regeneration management for max. performance
How to calculate the PEARL water capacity?
Example Bewamat
| IN: | 20°dH / 356 ppm |
| OUT: | 5°dH / 89 ppm |
| Difference: | 15°dH / 267 ppm |
Bewamat 25A:
25.000* / 15 = 1.666 litre
Bewamat 75A:
75.000* / 15 = 5.000 litre
Example BWT Perla silk / Aquadial bio
| IN: | 20°dH / 356 ppm |
| OUT: | irrelevant |
| Difference: | irrelevant |
BWT Perla Silk S / Aquadial 10 Bio:
26.000* / 20 = 1.300 litre
BWT Perla Silk XL / Aquadial 25 Bio:
75.000* / 20 = 3.750 litre
* Nominal capacity according to EN 14743
Technical Specifications

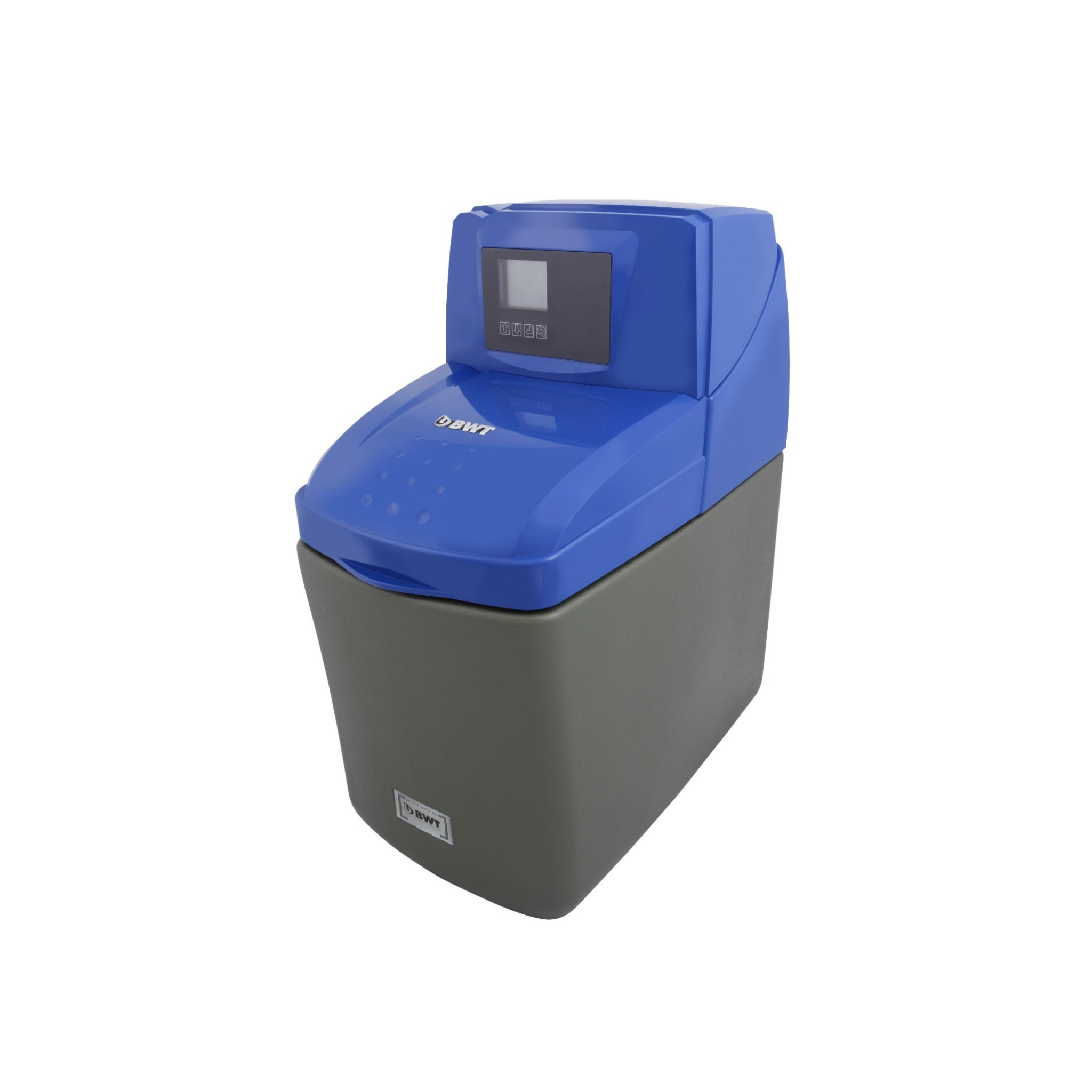

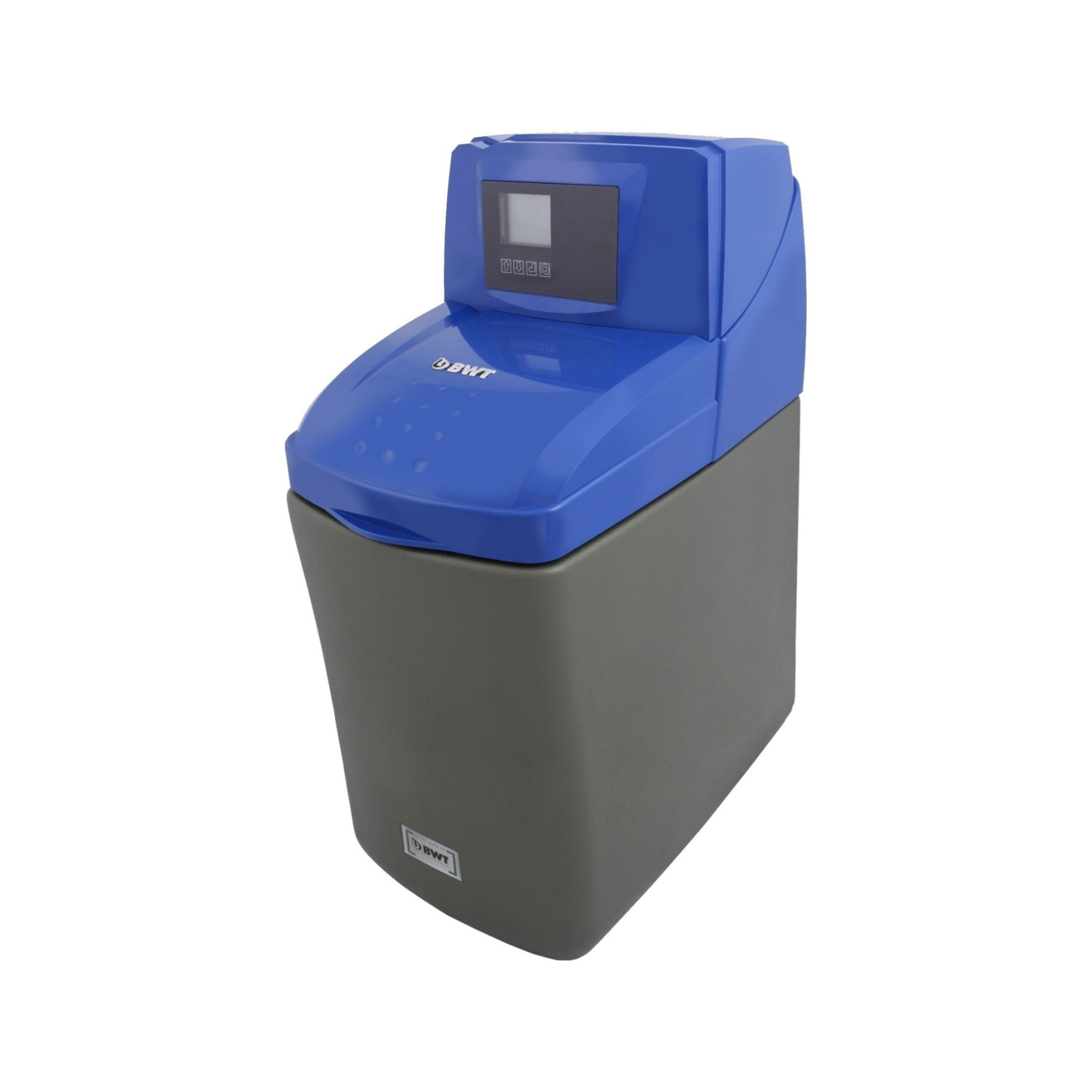

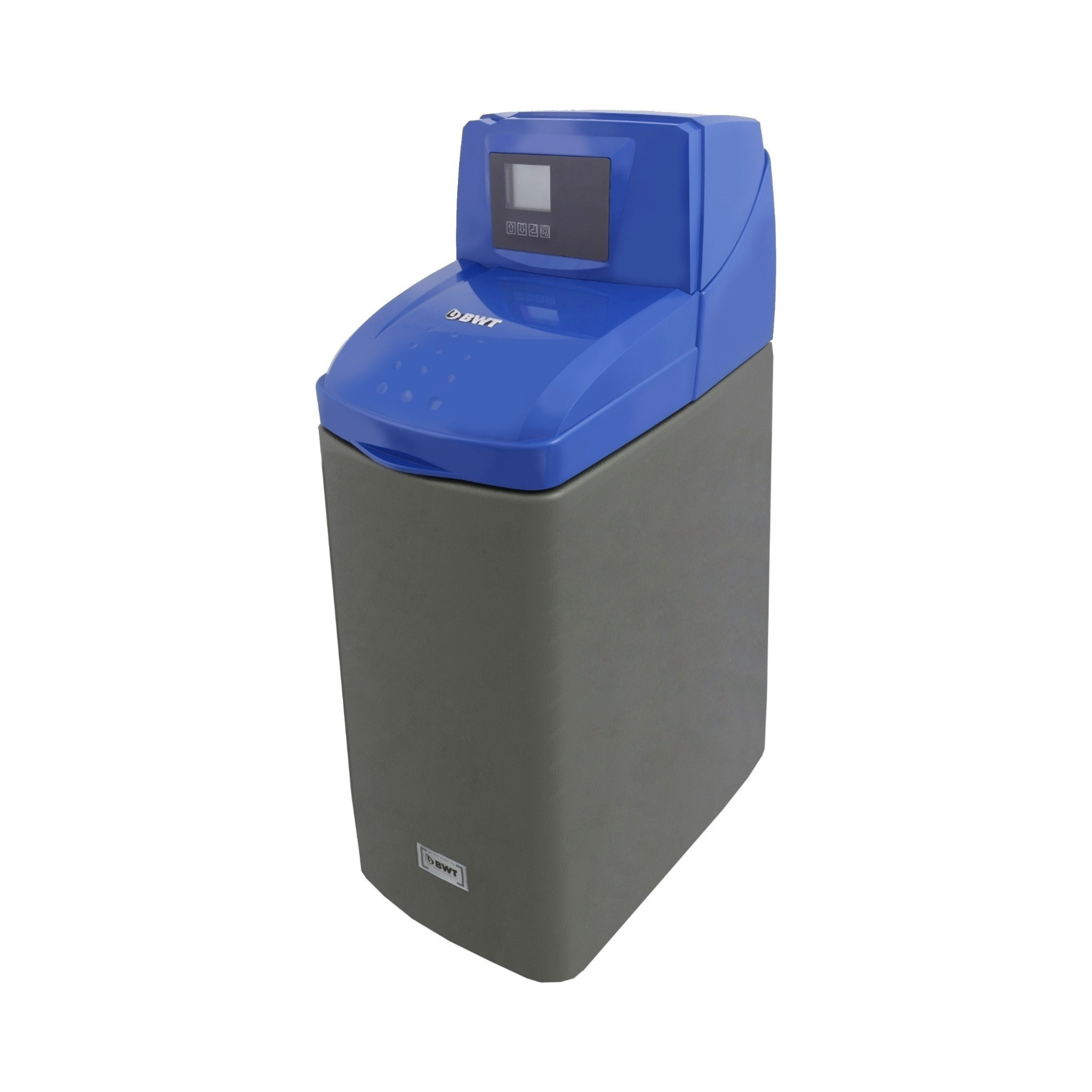

| BWT AQUADIAL softlife Bio | Type | 10 Bio | 15 Bio | 25 Bio |
| Product no. | 11360 | 11361 | 11362 | |
| Nominal connection (outside thread) | BSP | 3/4" (DN 20) |
3/4" (DN 20) |
3/4" (DN 20) |
| Nominal flow rate in accordance with EN 14743 | l/h | 1440 | 1560 | 1680 |
| Operating pressure EU (min.-max.) | bar | 1.0-8.0 | 1.0-8.0 | 1.0-8.0 |
|
Pressure drop down at nominal flow in accordance with EN 14743 |
bar | 1.0 | 1.0 | 1.0 |
|
Quantity of ion-exchange resin |
l | 10 | 15 | 25 |
|
Nominal capacity (EN 14743) / (CaCO3 mmol/l) |
m³x°dH / mol / ppm | 26 / 4.6 / 460 | 43 / 7.7 / 770 | 75 / 13.4 / 1340 |
|
Capacity salt reservoir |
kg | 12 | 16 | 24 |
|
Salt consumption per regeneration |
kg | 1.5 | 2.0 | 3.0 |
|
Water consumption per regeneration |
l | 85 | 105 | 145 |
|
Protection class |
IP | 51 | 51 | 51 |
|
Feed water temperature (min./max.) |
°C | 5 / 30 | 5 / 30 | 5 / 30 |
|
Ambient temperature (min./max.) |
°C |
5 / 40 |
5 / 40 |
5 / 40 |
|
Electrical connection |
V / Hz | 230 / 50 | 230 / 50 | 230 / 50 |
|
Dimensions: Width x depth x height (W x D2 x H) |
mm |
270 x 480 x 532 |
270 x 480 x 602 |
270 x 480 x 804 |
|
Connection height (A) / Overflow height (S) |
mm | 403 / 270 | 473 / 350 | 675 / 540 |
|
Operating weight, approx. |
kg | 40 | 50 | 70 |
*Tested with HiFlow connection available in option
AQUADIAL Softlife Bio including electrolysis cell as a standard
Downloads
BWT AQUADIAL Softlife Bio Fitting and Operating Instructions
