Description
The laboratory experts
- Special multi-stage filter for fully demineralising water
- Compliant with DIN EN 13060 and DIN EN 285
- For production of demineralised water for laboratories
- For pressurised steam autoclaves used for sterilisation in the medical and dental industries
- Easy to install with universal BWT besthead FLEX connection technology
- Space-saving design and very simple handling
Product details

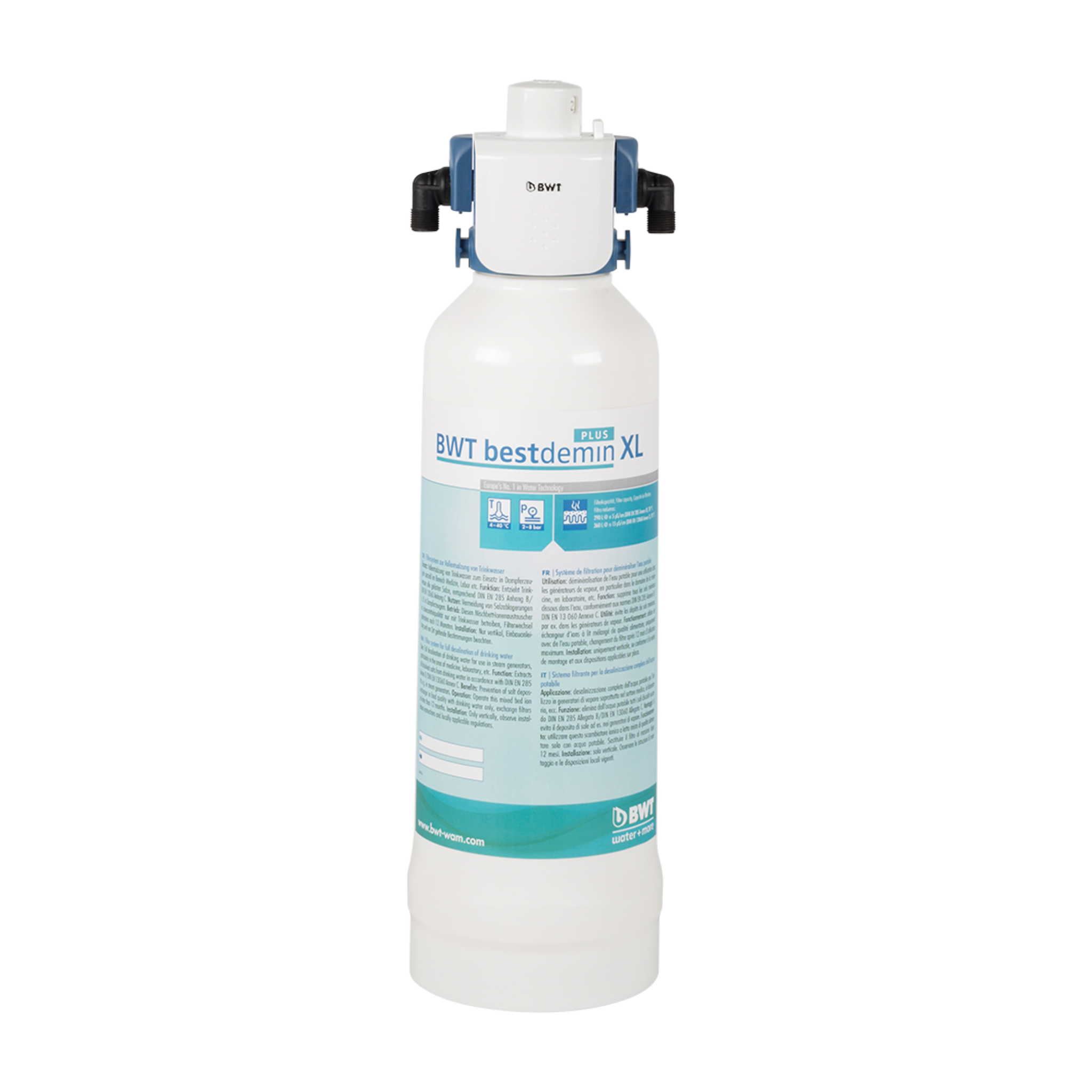

BWT bestdemin PLUS is a filter system for producing demineralised water by simple means. This multi-stage filter features a mixed-bed ion exchanger that removes all dissolved salts from the in-flowing raw water.
The resulting demineralised water complies with DIN EN 13060 and DIN EN 285 requirements, and is perfectly suited for laboratory use to correctly prepare reagents or to clean equipment, leaving devices free of any residue. BWT bestdemin PLUS delivers demineralised water for pressurised steam autoclaves in medical and dental sterilisation applications as well as for professional steam ironing systems in laundries and dry cleaners.
Technical advantages of BWT bestdemin PLUS at a glance
- 4-stage filtration
- Integrated particle pre-filtration
- Activated carbon fleece to protect the ion exchanger
- Mixed-bed ion exchanger technology
- Filtrate compliant with DIN EN 13060 and DIN EN 285
- Highly efficient compact demineralisation
- Ease of handling when replacing the filter
EFFECTIVE REVERSE OSMOSIS SYSTEMS FOR LABORATORY TECHNOLOGY
BWT bestaqua 14 ROC
Unwanted substances can be removed from even the most tainted of feed water using the reverse osmosis effect. Use the experience and the technology from BWT water+more to efficiently supply your operation and your processes with the best possible water.
Technical details
| BWT bestdemin PLUS type | V |
M |
XL |
| Filter head | besthead FLEX | besthead FLEX | besthead FLEX |
| Connection thread (in/out) |
variable | variable | variable |
| Inlet pressure, min. – max. in bar |
2-8 | 2-8 | 2-8 |
| Water temperature, min. – max. in °C |
4-30 | 4-30 | 4-30 |
| Ambient temperature, min. – max. in °C |
4-40 | 4-40 | 4-40 |
| Total height without bracket in mm, approx. | 410-420 |
492-502 | |
| Total height with bracket in mm, approx. | 445 |
527 | |
| Connection height in mm | 366 |
448 | |
| Distance to floor in mm | 65 | 65 | 65 |
| Installation length in mm | 125 | 125 | 125 |
| Ø filter cartridge in mm | 110 | 147 | |
| Weight in kg, approx. (dry/wet) | 2.1/3.2 | 3.9/5.6 | |
| Volume flow max. in l/h | 100 | 100 | 100 |
| Cartridge no. | FS23D10A00 | 125505654 | FS28D10A00 |
SETTINGS AND CAPACITIES/L(1)
Steam sterilisers / Steam ironing / Steam generators
| Conductivity of demineralised water (2) | V | M | XL |
| ≤ 5 µS/cm(3) | 85 | 290 | |
| ≤ 15 µS/cm(4) | 110 | 360 |
(1) Capacities may vary by up to ±5 % depending on the local water quality and volume flow. (2) at a raw water conductance of 500 µS/cm. (3) DIN EN 285. (4) DIN EN 13060. Subject to change.
