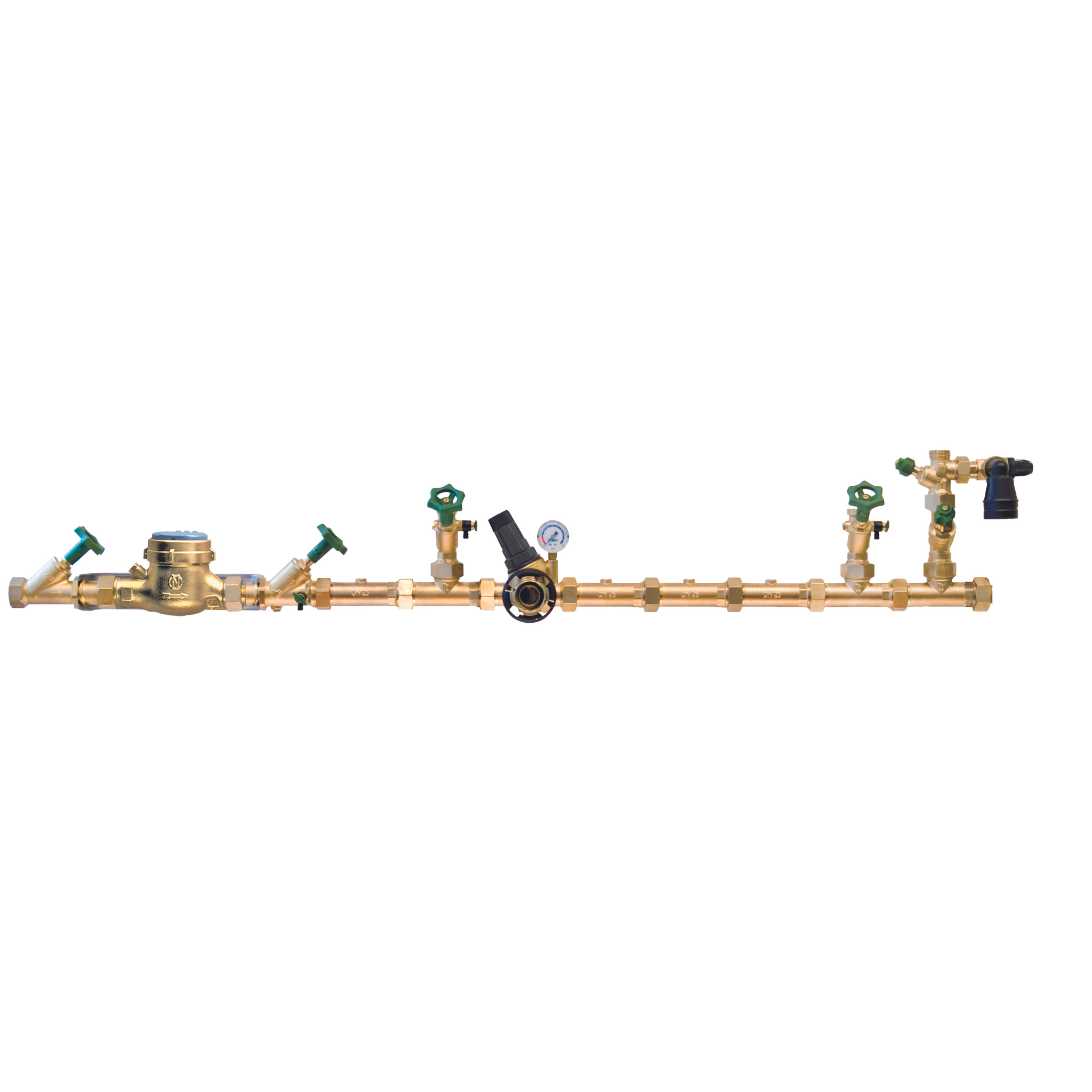

BWT connection technology


Size: EHF Connection module DN 20 | 10866
Price:
Sale price€100,46

Description

Ingenious connection technology

DOCK - TWIST - SECURE

Installation in DN 20 / DN 25 / DN 32 with DR/HWS connection module

Installation in DN 40 / DN 50 with four-hole flange DR/HWS

CONNECTION MODULE

For the rapid connection of water treatment units such as filters, softeners and dosing units. For Infinity size 1, E1 HydroMODUL size 1. Can be installed horizontally or vertically. Top quality brass part, seal, union nut, locking ring, connecting union.

 TYPE DN 20 DN 25 DN 32
Nominal pressure bar 16 16 16
Installation length inc. screw connection mm 210 210 238
Installation length without screw connection mm 122 122 142
Order no. 10866 10874 10868



CONNECTION MODULE DR / HWS

If you want a filter with pressure reducer, select the connection module Dr/HWS sound-proofed with integrated pressure reducer and pressure gauge. For Infinity size 1, E1 HydroMODUL size 1. The connection module DR can be installed vertically or horizontally. High-quality brass head connection equipment with spring, seal, cap nut, locking ring and connection unions.

 TYPE DN 20 DN 25 DN 32
Nominal pressure bar 16 16 16
Installation length inc. screw connection mm 210 210 238
Installation length without screw connection mm 122 122 142
Order no. 20860 20862
20861

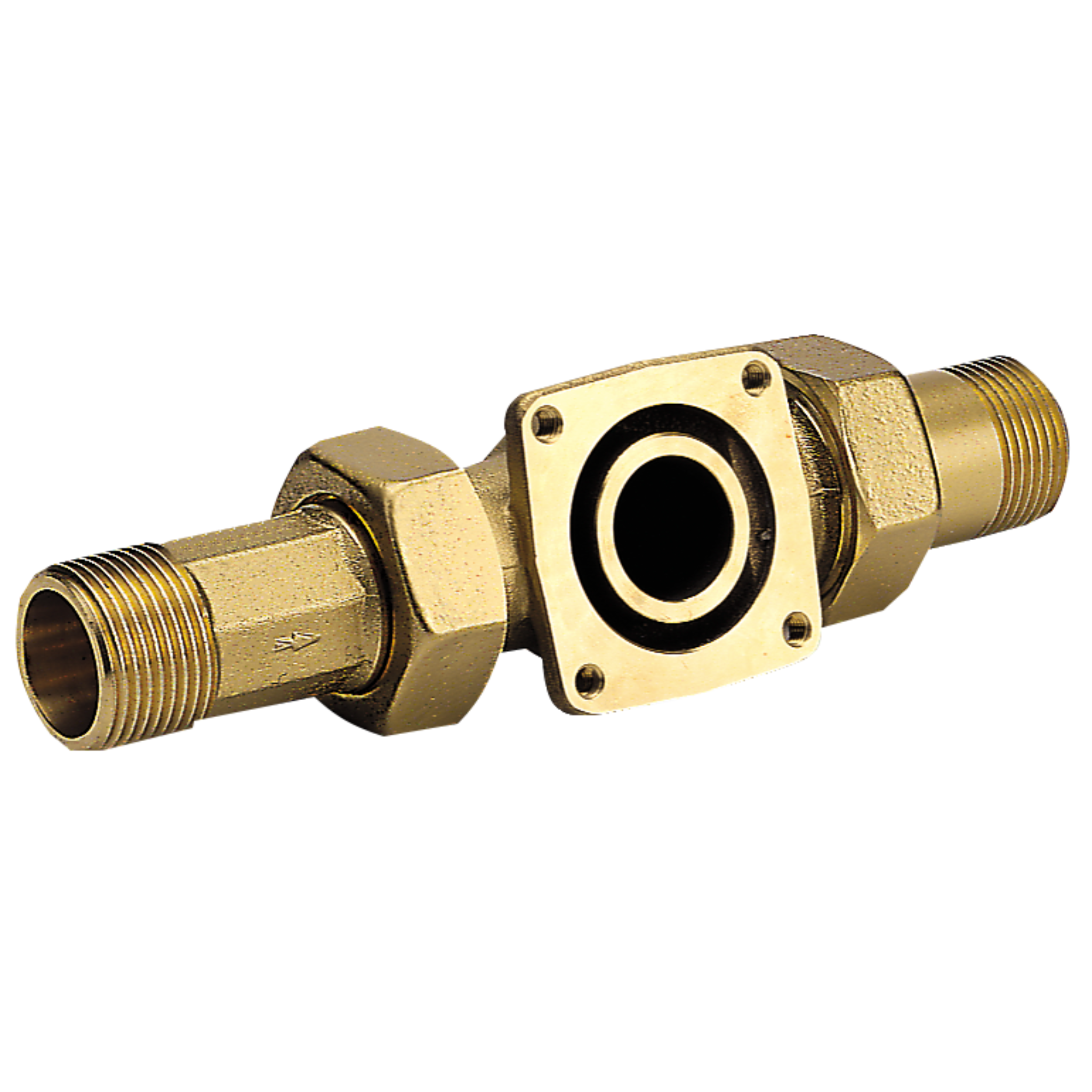

CONNECTION PIECE BASIC

For filter unit Infinity size 2. The 4-hole connection piece can be mounted horizontally or vertically. High quality brass fitting with 4 screws, seals and connection threads.

 TYPE DN 40 DN 50
Nominal pressure bar 16 16
Installation length inc. screw connection mm 240 260
Installation length without screw connection mm 125
125
Order no. 50961
50962

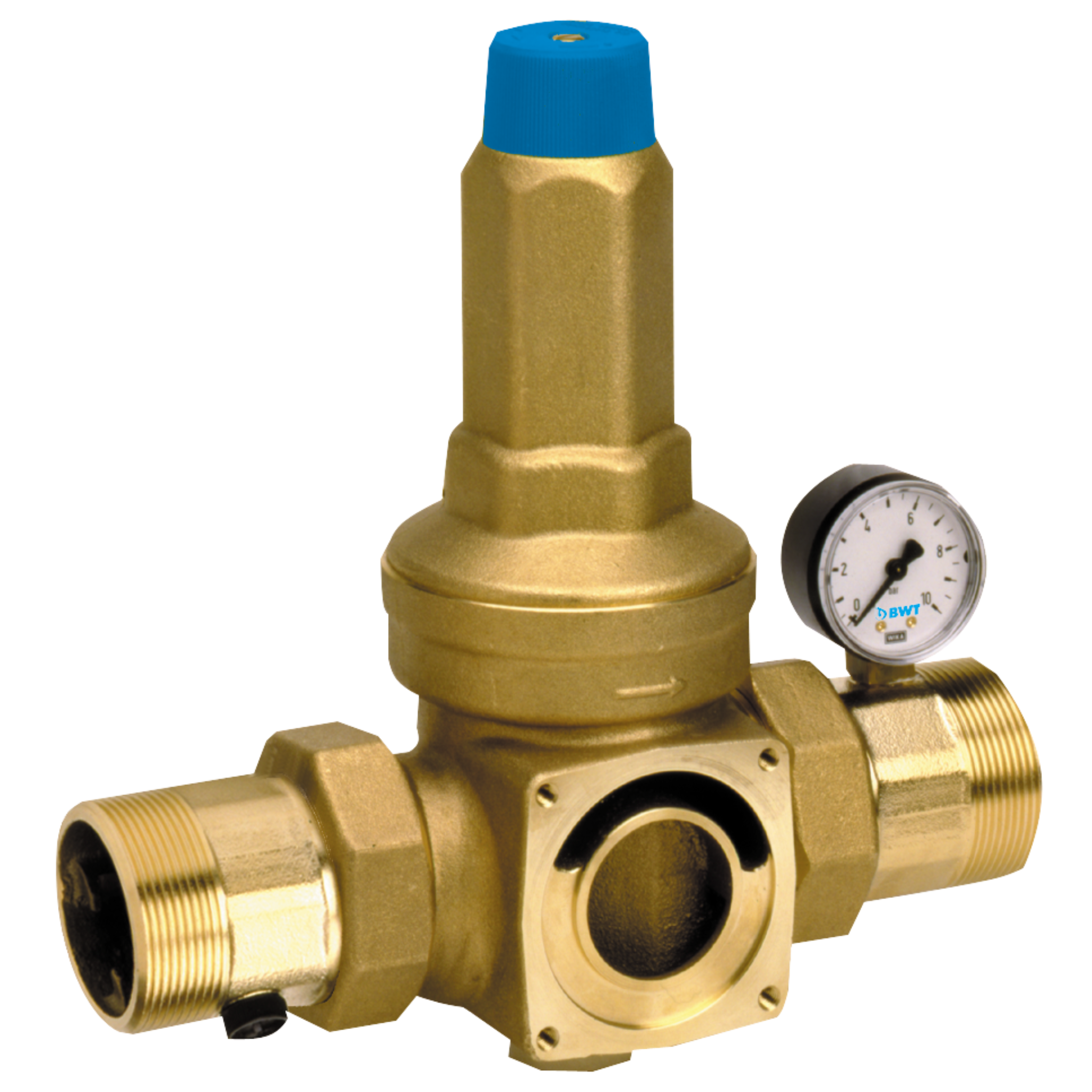

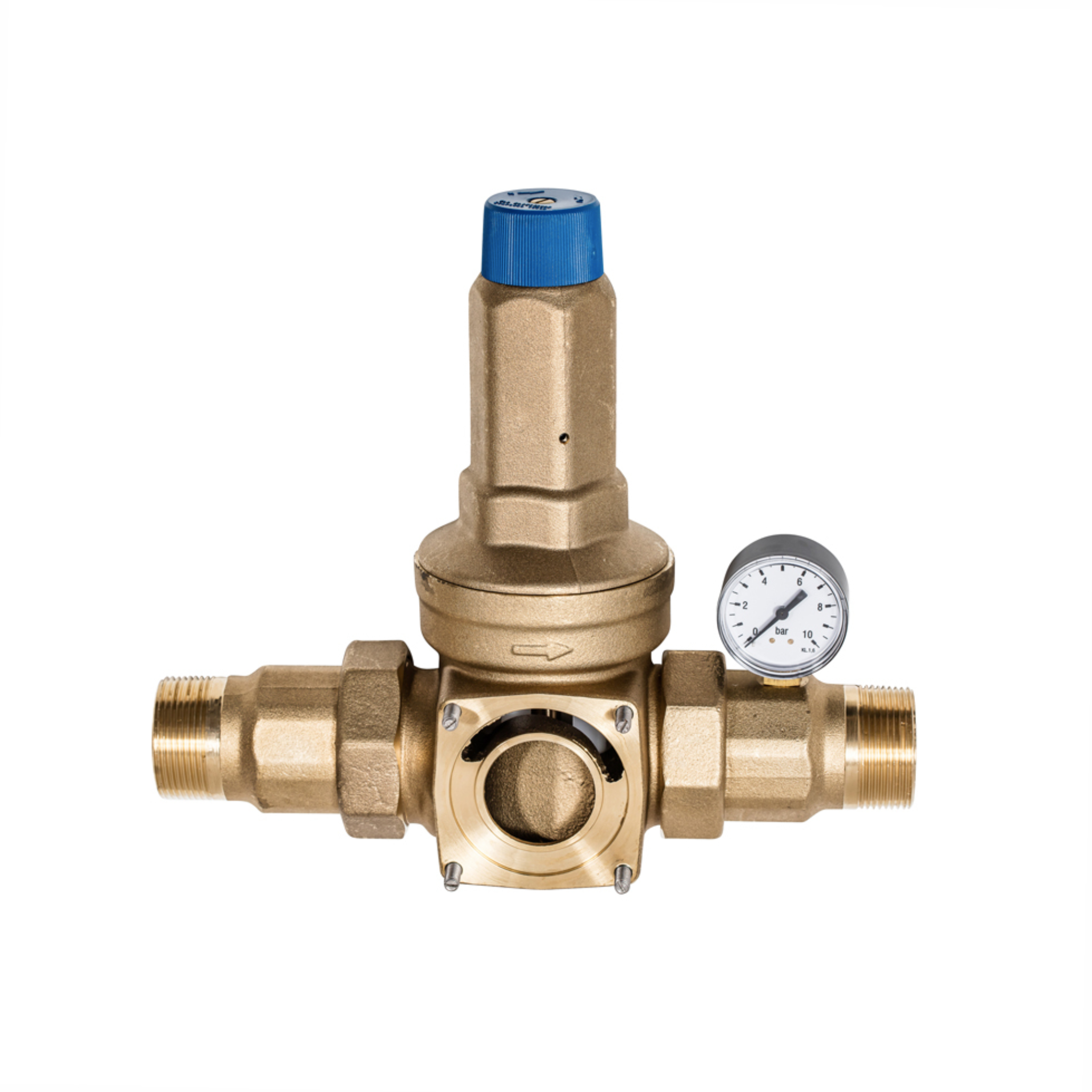

CONNECTION PIECE HWS

For filter unit Infinity size 2. The 4-hole connection piece can be mounted horizontally or vertically. High quality brass fitting with 4 screws, seals and connection threads. The connection piece HWS also includes an integrated pressure reducer, pressure gauge and non-return valve.

 TYPE DN 40 DN 50
Nominal pressure bar 16 16
Installation length inc. screw connection mm 295 260
Installation length without screw connection mm 125
125
Order no. 50954
50955


Downloads

Installation and operating manual connection piece DR / HWS
