BWT Infinity M / A / AP | DN20-DN32

High-​Comfort backwash filters for technical building equipment

• Filter and connection technology proven millions of times
• High filter capacity due to large filter area
• Robust filter head made of brass
• Particularly intensive cleaning through 2-phase backwash technology
• Fast assembly thanks to HydroMODUL quick connection technology
• Made in Germany

Product description

BWT Infinity backwash filter system

Flexible and freely configurable - consisting of Infinity

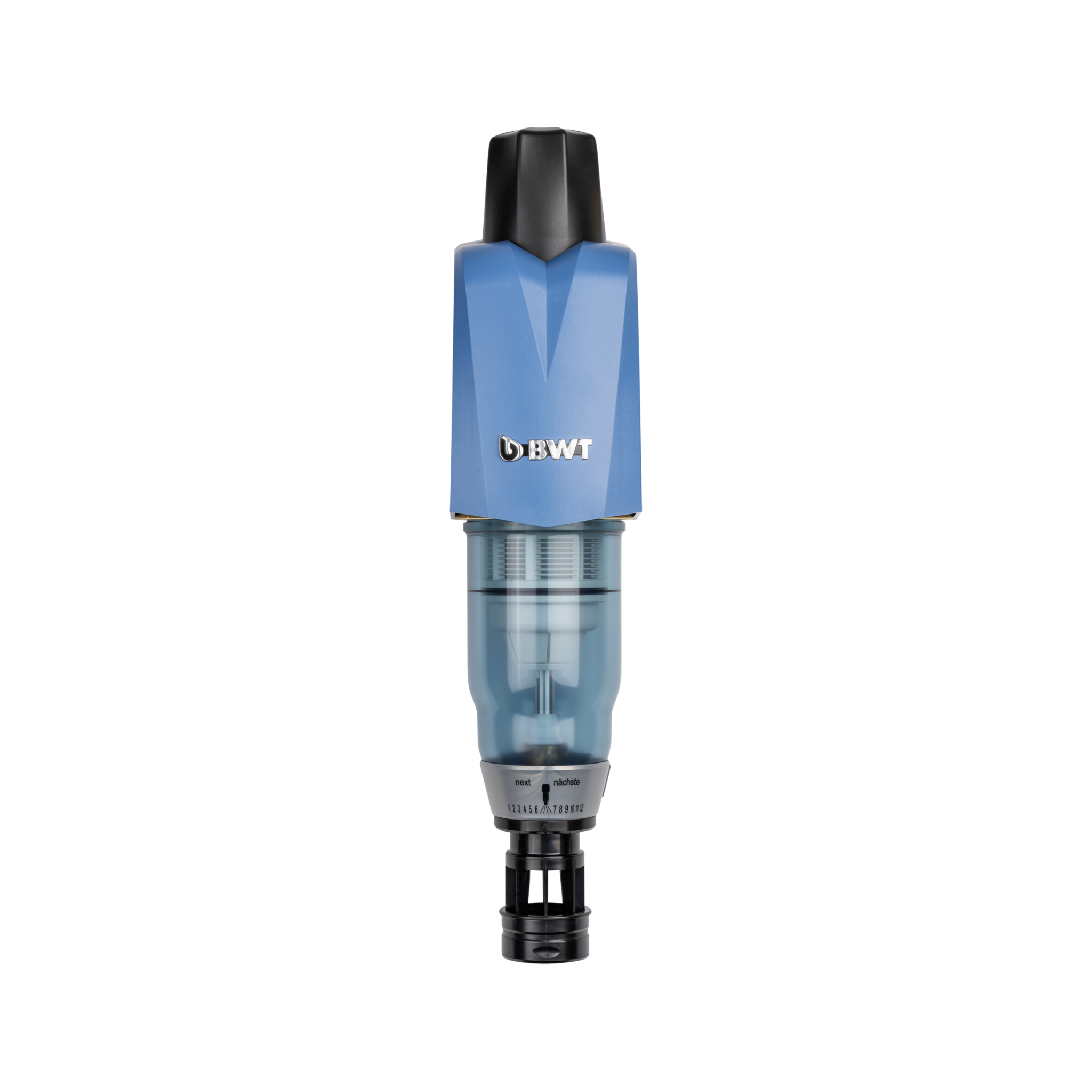

• M - Manual

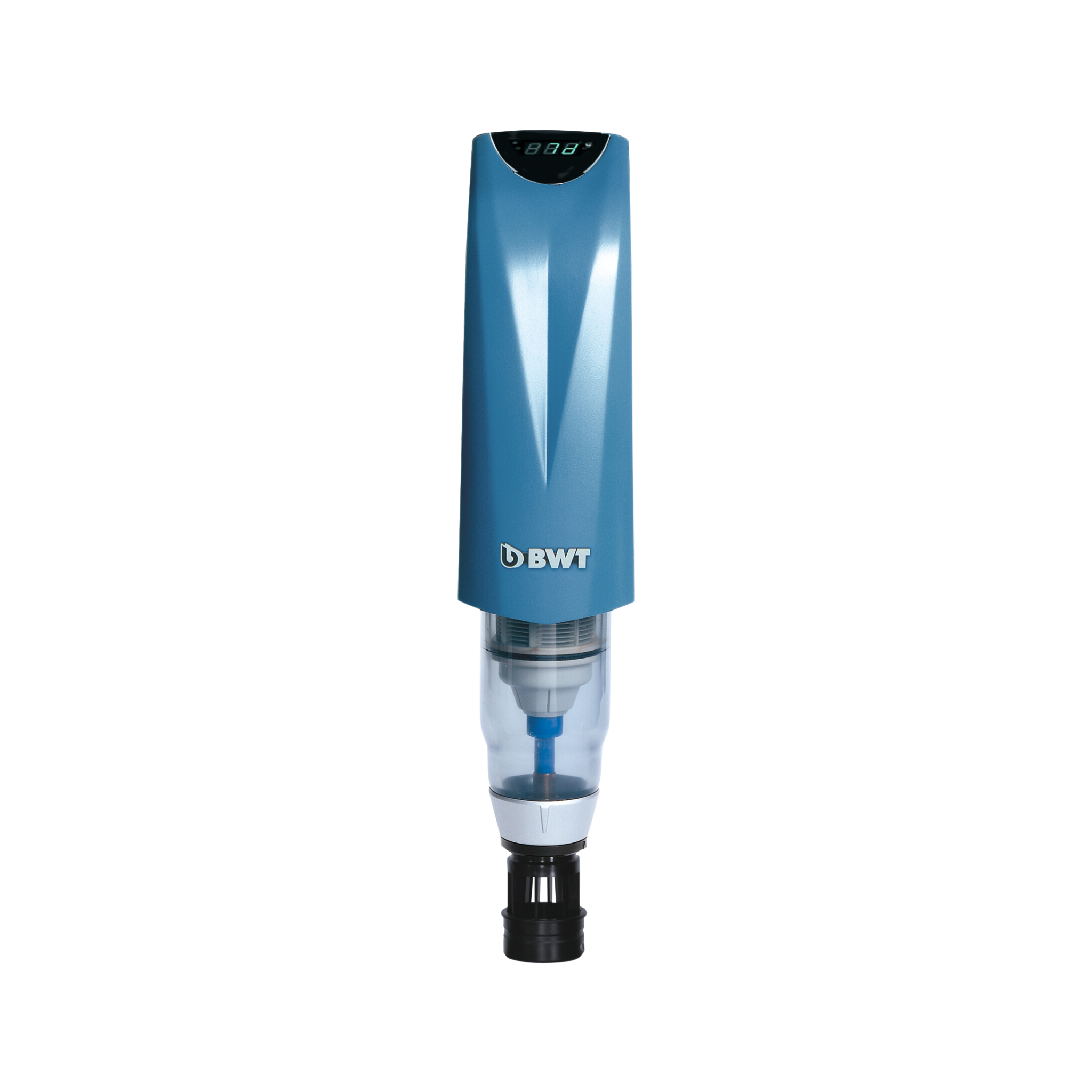

• A - Automatically timed
• P - Automatic differential pressure controlled

Module sizes

• Size I (3/4"-5/4")
• Size II (6/4"-2")
• And the desired (DR) connection module


6 connection options

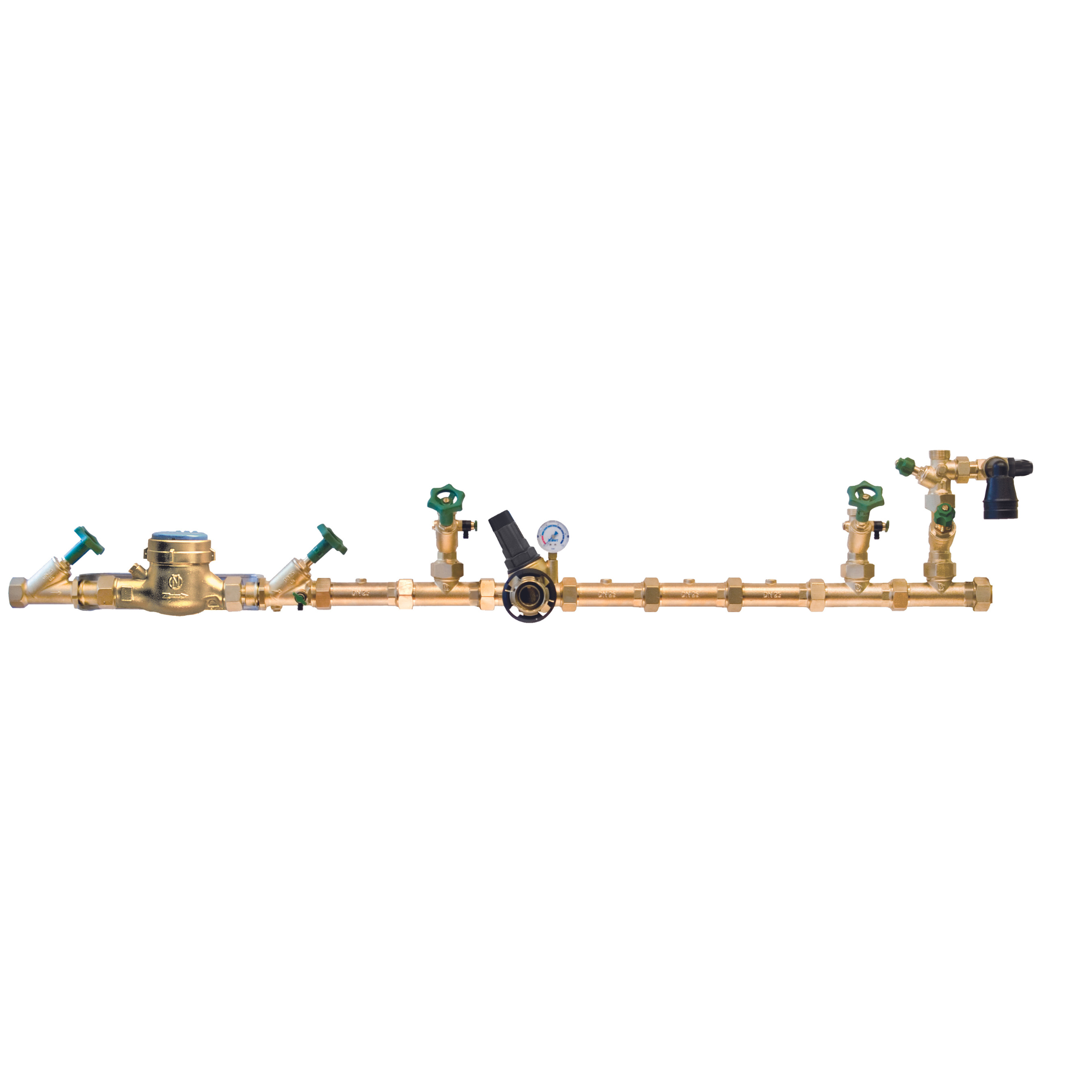

• in HydroMODUL distribution systems DN 25 or DN 32 with pressure reducer (DR module) or without pressure reducer (basic module)
• classic installation DN 20, DN 25, DN 32 with DR connection module or connection module
• classic installation DN 40 or DN 50 with four-hole flange with DR connection piece or connection piece

Installation possible vertically or horizontally.

Easy installation

In record time - without tools

Product overview

Device type	Infinity M	Infinity A / AP
How it works	manual backwash filter	automatic backwash filter
Dimensions	3/4" - 2"	3/4" - 2"
Nominal pressure PN (bar)	16	16
Connection method	HydroMODUL / 4-​hole connection	HydroMODUL / 4-​hole connection
Protection against damage to fittings and equipment caused by dirt particles	yes	yes
Protection against pitting corrosion caused by washed-in dirt particles	yes	yes



Technical data

Technical data Infinity M/A/AP		3/4"	1"	5/4"	6/4"	2"
Flow rate ∆p 0.2 bar*	m3/h	3.5	4.5	5.5	10.0	10.0
Operating pressure, min./max.	bar	2-16	2-16	2-16	2-16	2-16
Water & ambient temperature	max	30°C/40°C	30°C/40°C	30°C/40°C	30°C/40°C	30°C/40°C
Filter mesh size	µm	90	90	90	90	90
Total height (A**)	mm	550	550	550	550	550
Height (B**)	mm	315	315	315	315	315
Altitude (C**) Infinity A/AP	mm	295	295	295	295	295
Height (C**) Infinity M	mm	360	360	360	360	360
Minimum dimension (D**)	mm	670	670	670	670	670
Power supply	V/Hz	230/50/60 (unit operation at 24 V-	230/50/60 (unit operation at 24 V-	230/50/60 (unit operation at 24 V-	230/50/60 (unit operation at 24 V-	230/50/60 (unit operation at 24 V-

*according to DIN EN 13443–1, DIN 19628 and DIN EN 1567 for water up to 30 °C

** see graphic below

INGENIOUS CONNECTION TECHNOLOGY

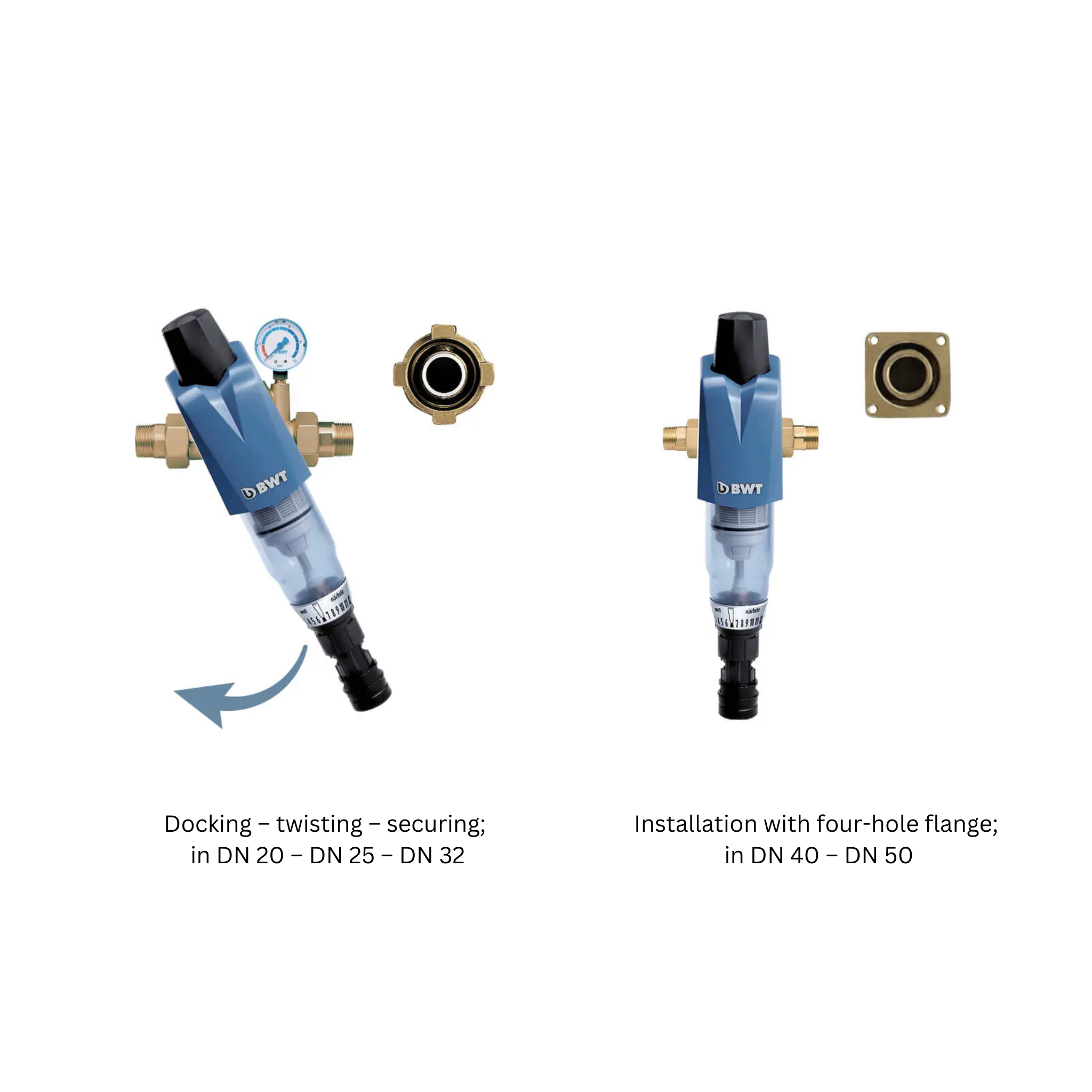

DOCK - TWIST - SECURE

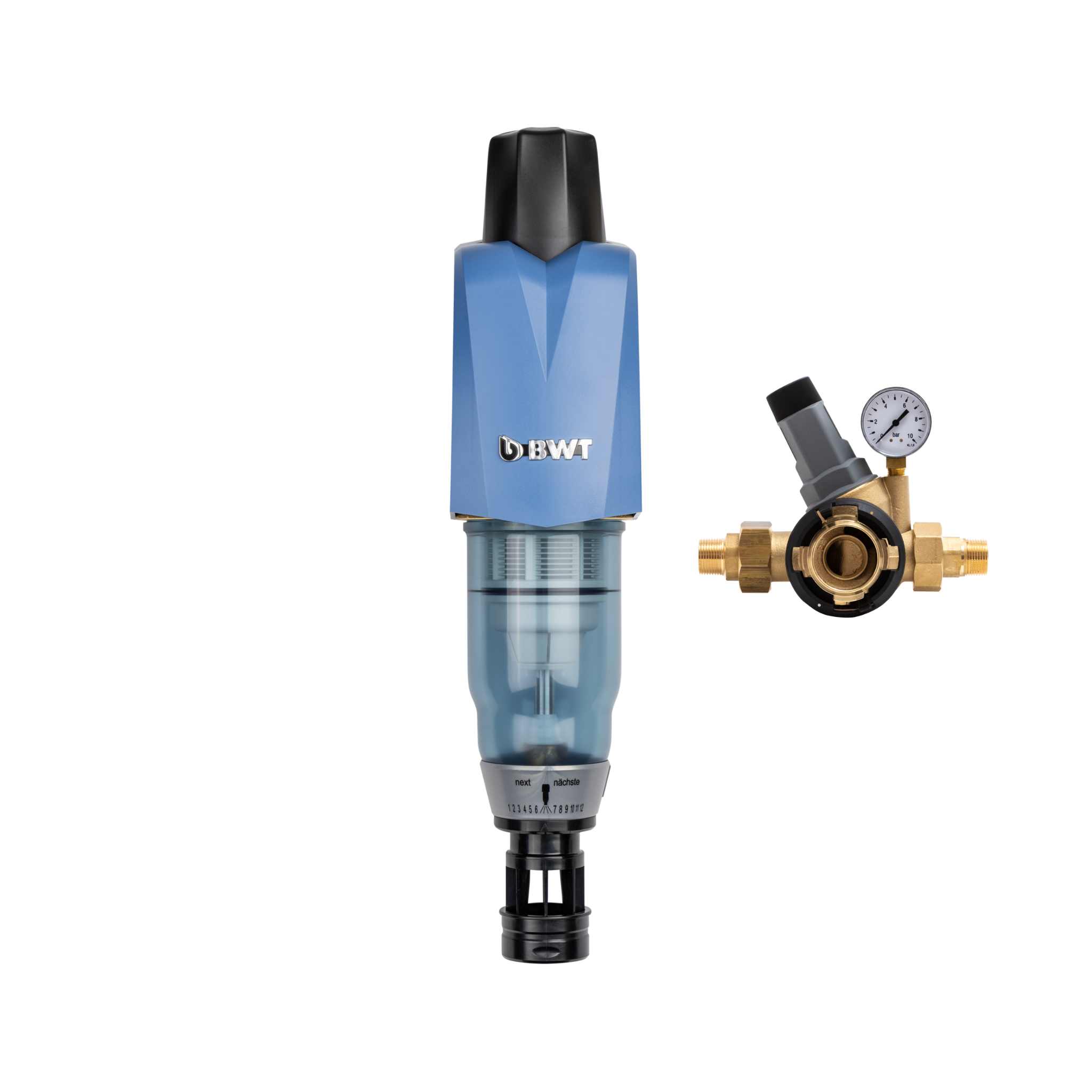

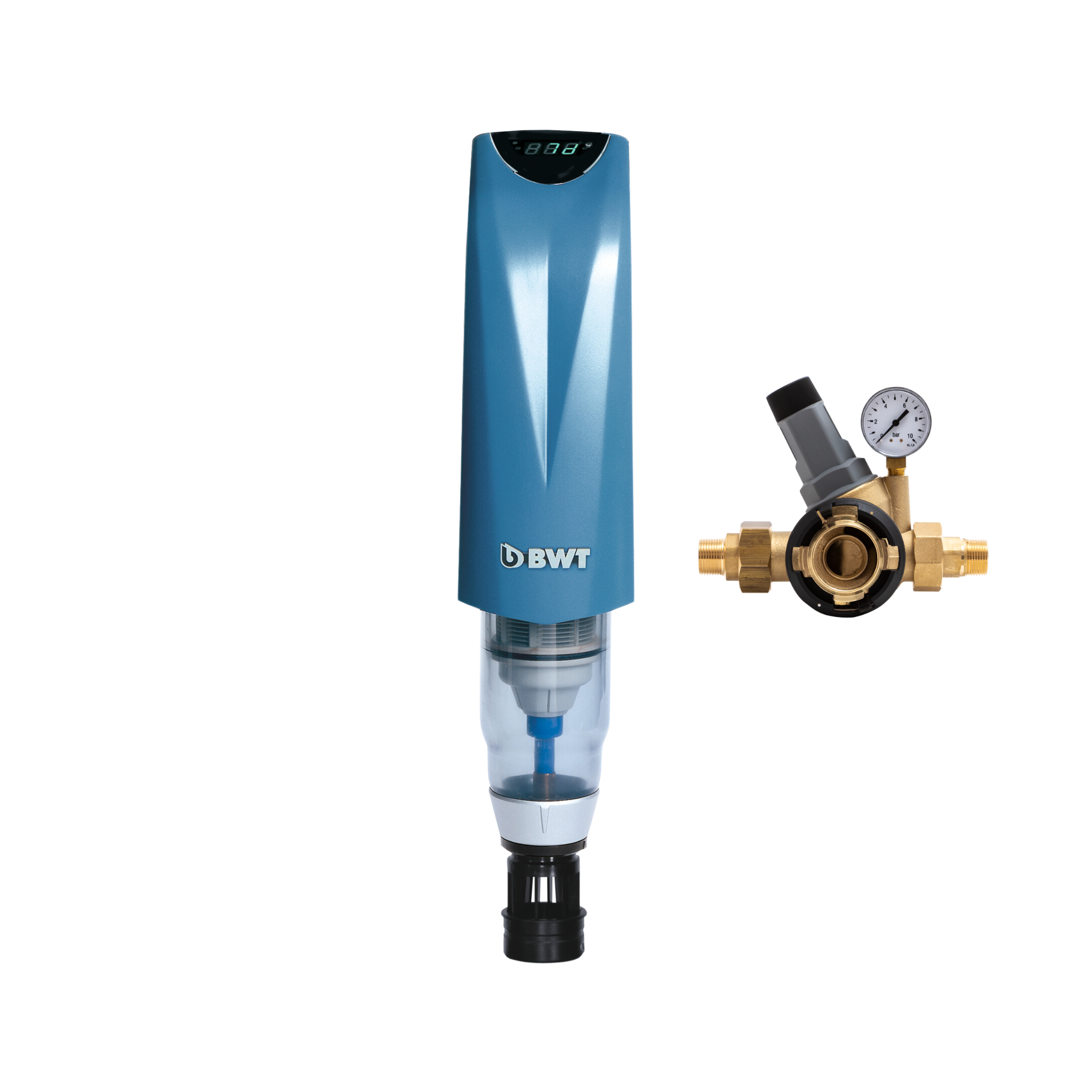

Installation in DN 20 / DN 25 / DN 32 with DR/HWS connection module

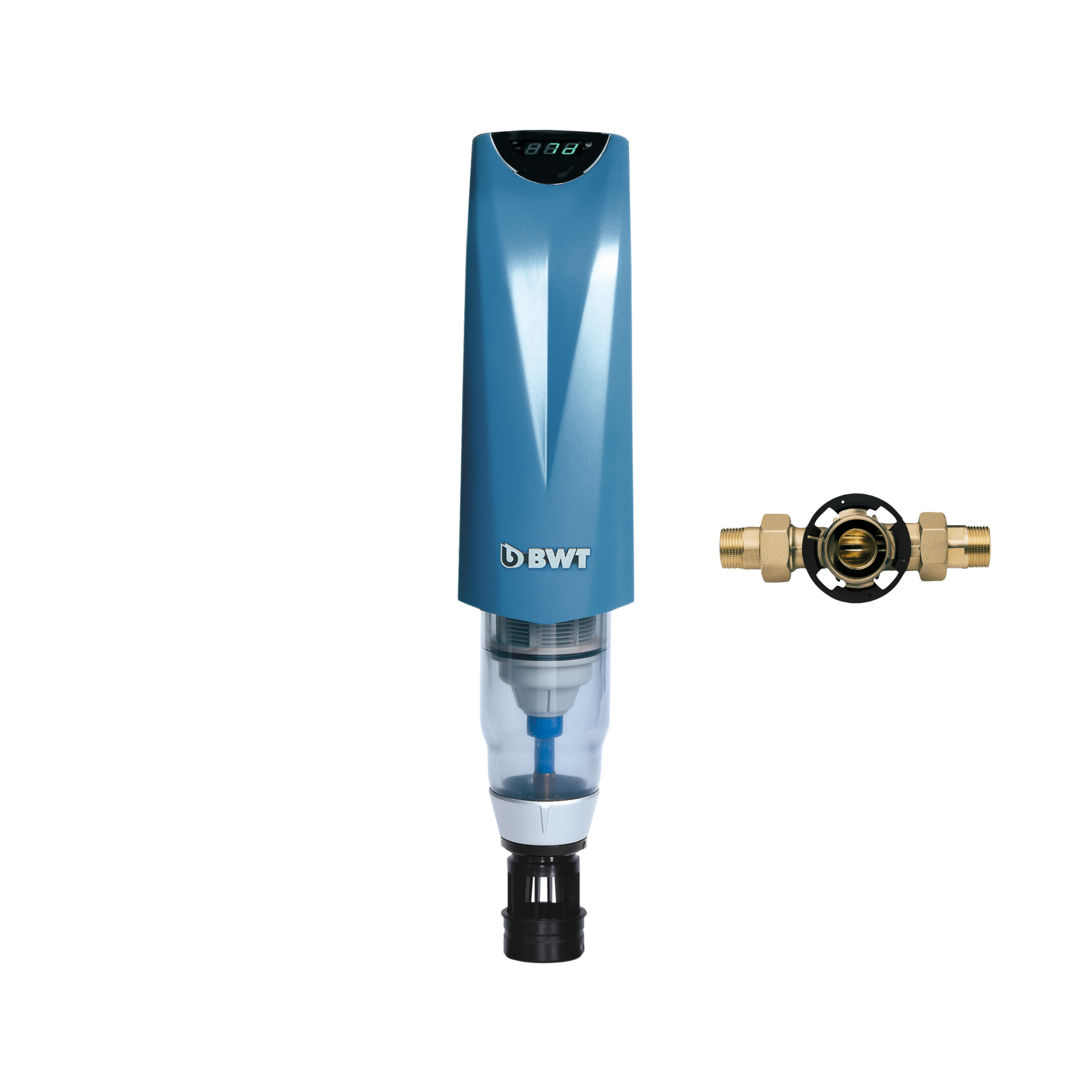

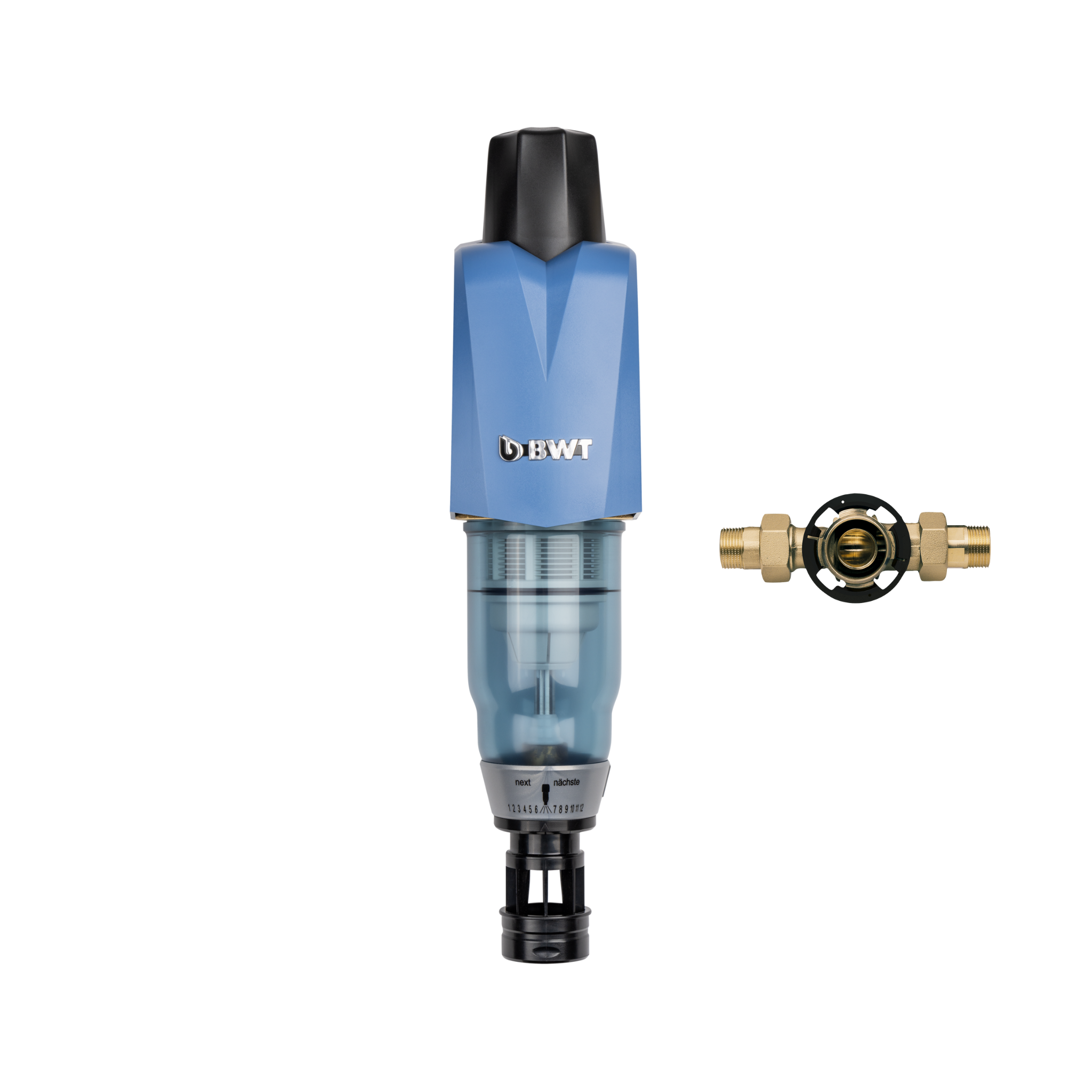

CONNECTION MODULE

For the rapid connection of water treatment units such as filters, softeners and dosing units. For Infinity size 1, E1 HydroMODUL size 1. Can be installed horizontally or vertically. Top quality brass part, seal, union nut, locking ring, connecting union.

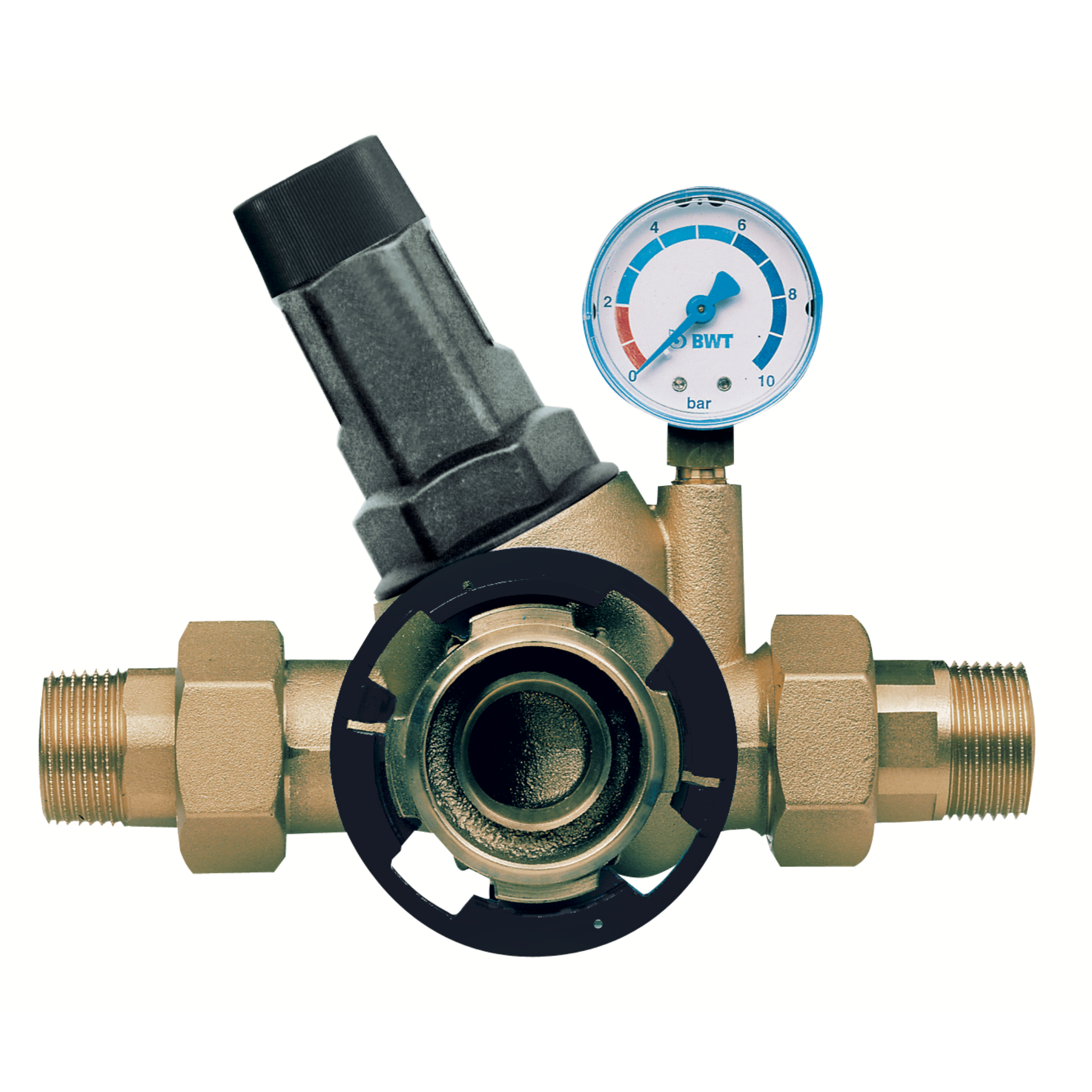

CONNECTION MODULE DR / HWS
