Description
High-Comfort backwash filters for technical building equipment
- Filter and connection technology proven millions of times
- High filter capacity due to large filter area
- Robust filter head made of brass
- Particularly intensive cleaning through 2-phase backwash technology
- Fast assembly thanks to HydroMODUL quick connection technology
- Made in Germany
Product description
BWT Infinity backwash filter system
Flexible and freely configurable - consisting of Infinity
- M - Manual
- A - Automatically timed
- P - Automatic differential pressure controlled
Module sizes
- Size I (3/4"-5/4")
- Size II (6/4"-2")
- And the desired (DR) connection module
6 connection options
- in HydroMODUL distribution systems DN 25 or DN 32 with pressure reducer (DR module) or without pressure reducer (basic module)
- classic installation DN 20, DN 25, DN 32 with DR connection module or connection module
- classic installation DN 40 or DN 50 with four-hole flange with DR connection piece or connection piece
Installation possible vertically or horizontally.
Easy installation
In record time - without tools
Product overview
| Device type | Infinity M | Infinity A / AP |
| How it works | manual backwash filter | automatic backwash filter |
| Dimensions | 3/4" - 2" | 3/4" - 2" |
| Nominal pressure PN (bar) | 16 | 16 |
| Connection method | HydroMODUL / 4-hole connection | HydroMODUL / 4-hole connection |
| Protection against damage to fittings and equipment caused by dirt particles | yes | yes |
| Protection against pitting corrosion caused by washed-in dirt particles | yes | yes |
Technical data
| Technical data Infinity M/A/AP | 3/4" | 1" | 5/4" | 6/4" | 2" | |
| Flow rate ∆p 0.2 bar* | m3/h | 3.5 | 4.5 | 5.5 | 10.0 | 10.0 |
| Operating pressure, min./max. | bar | 2-16 | 2-16 | 2-16 | 2-16 | 2-16 |
| Water & ambient temperature | max | 30°C/40°C | 30°C/40°C | 30°C/40°C | 30°C/40°C | 30°C/40°C |
| Filter mesh size | µm | 90 | 90 | 90 | 90 | 90 |
| Total height (A**) | mm | 550 | 550 | 550 | 550 | 550 |
| Height (B**) | mm | 315 | 315 | 315 | 315 | 315 |
| Altitude (C**) Infinity A/AP | mm | 295 | 295 | 295 | 295 | 295 |
| Height (C**) Infinity M | mm | 360 | 360 | 360 | 360 | 360 |
| Minimum dimension (D**) | mm | 670 | 670 | 670 | 670 | 670 |
| Power supply | V/Hz | 230/50/60 (unit operation at 24 V- | 230/50/60 (unit operation at 24 V- | 230/50/60 (unit operation at 24 V- | 230/50/60 (unit operation at 24 V- | 230/50/60 (unit operation at 24 V- |
*according to DIN EN 13443–1, DIN 19628 and DIN EN 1567 for water up to 30 °C
** see graphic below
Downloads
INGENIOUS CONNECTION TECHNOLOGY
DOCK - TWIST - SECURE
Installation in DN 40 / DN 50 with four-hole flange DR/HWS

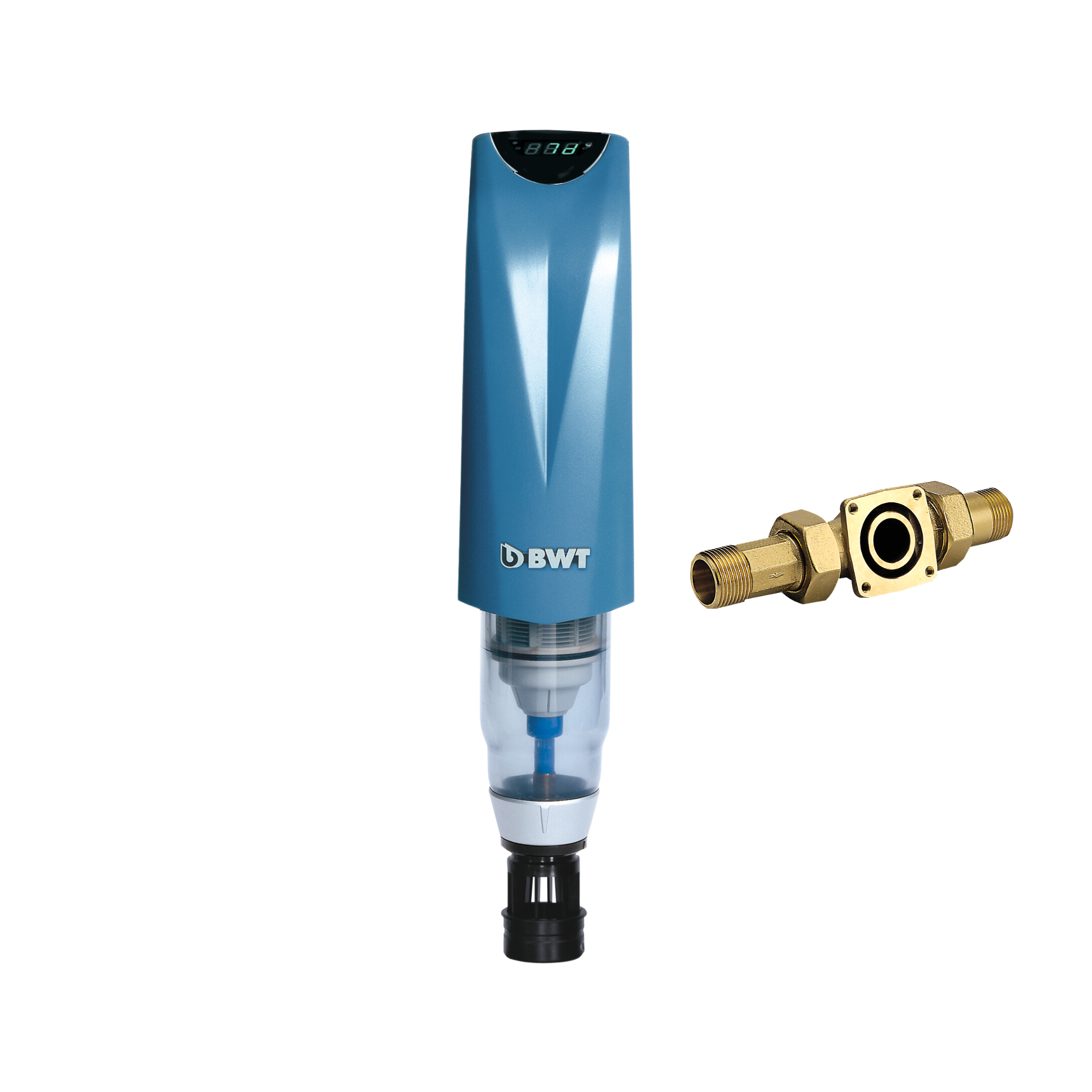

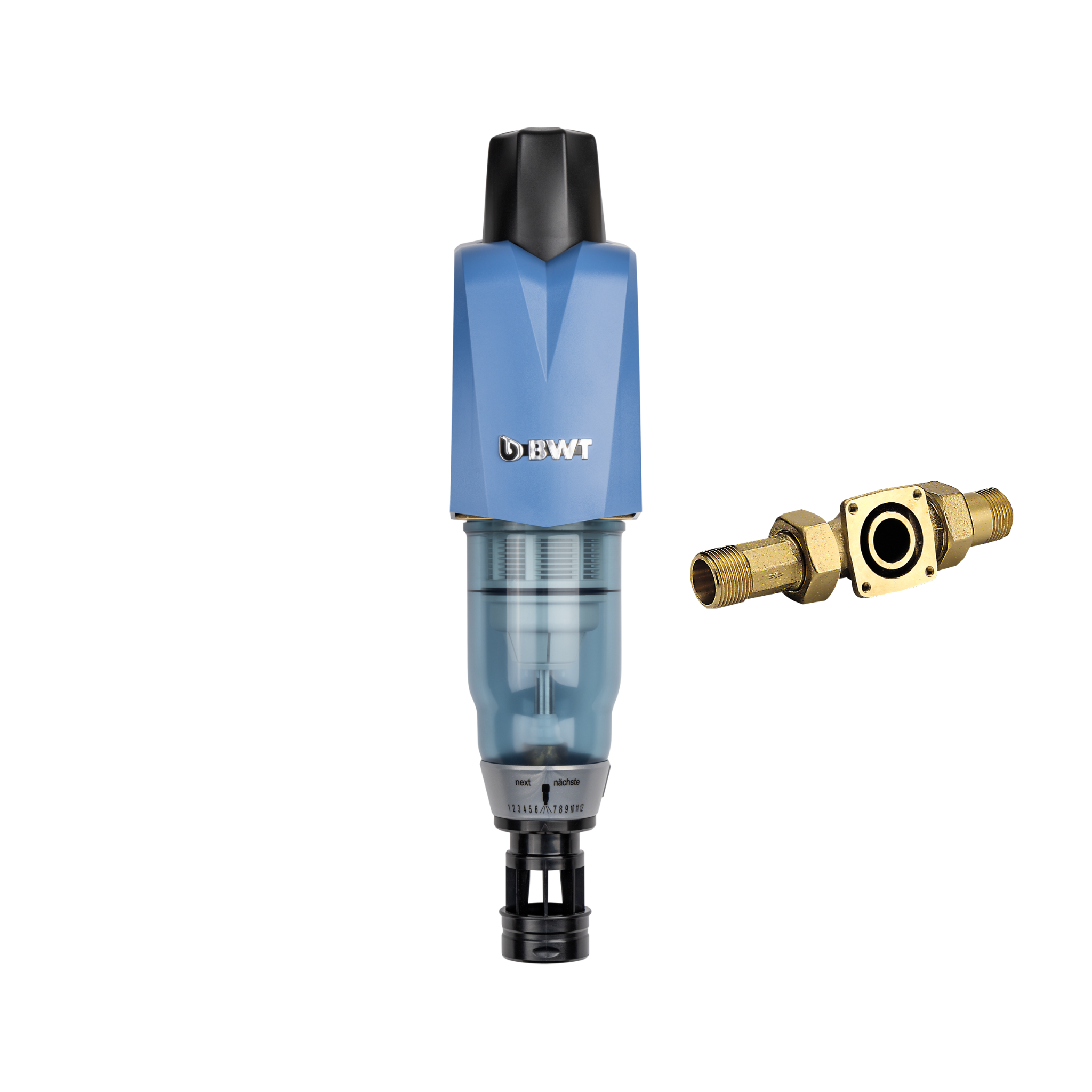

CONNECTION PIECE BASIC
For filter unit Infinity size 2. The 4-hole connection piece can be mounted horizontally or vertically. High quality brass fitting with 4 screws, seals and connection threads.
| TYPE | DN 40 | DN 50 | |
| Nominal pressure | bar | 16 | 16 |
| Installation length inc. screw connection | mm | 240 | 260 |
| Installation length without screw connection | mm | 125 |
125 |
| Order no. | 50961 |
50962 |

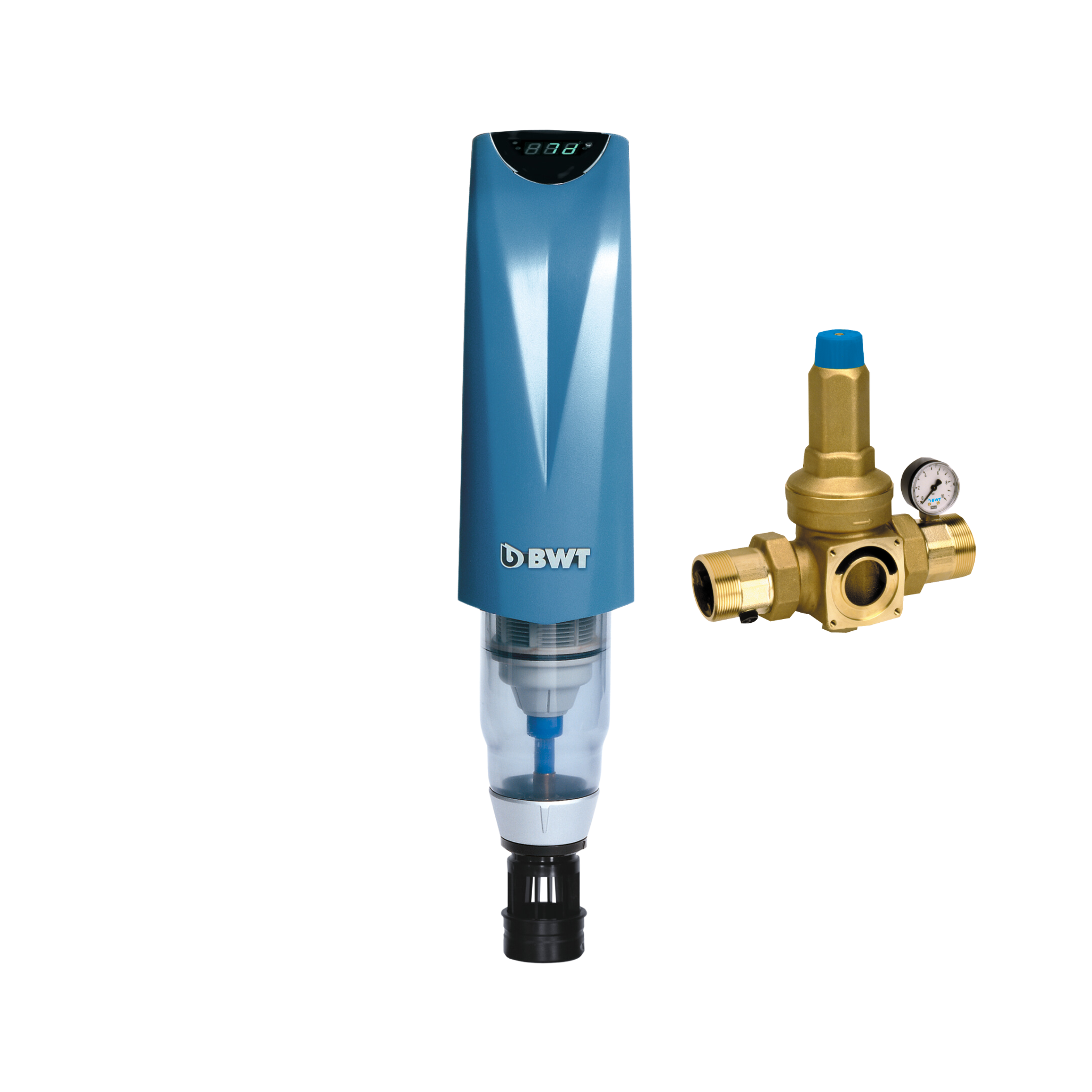

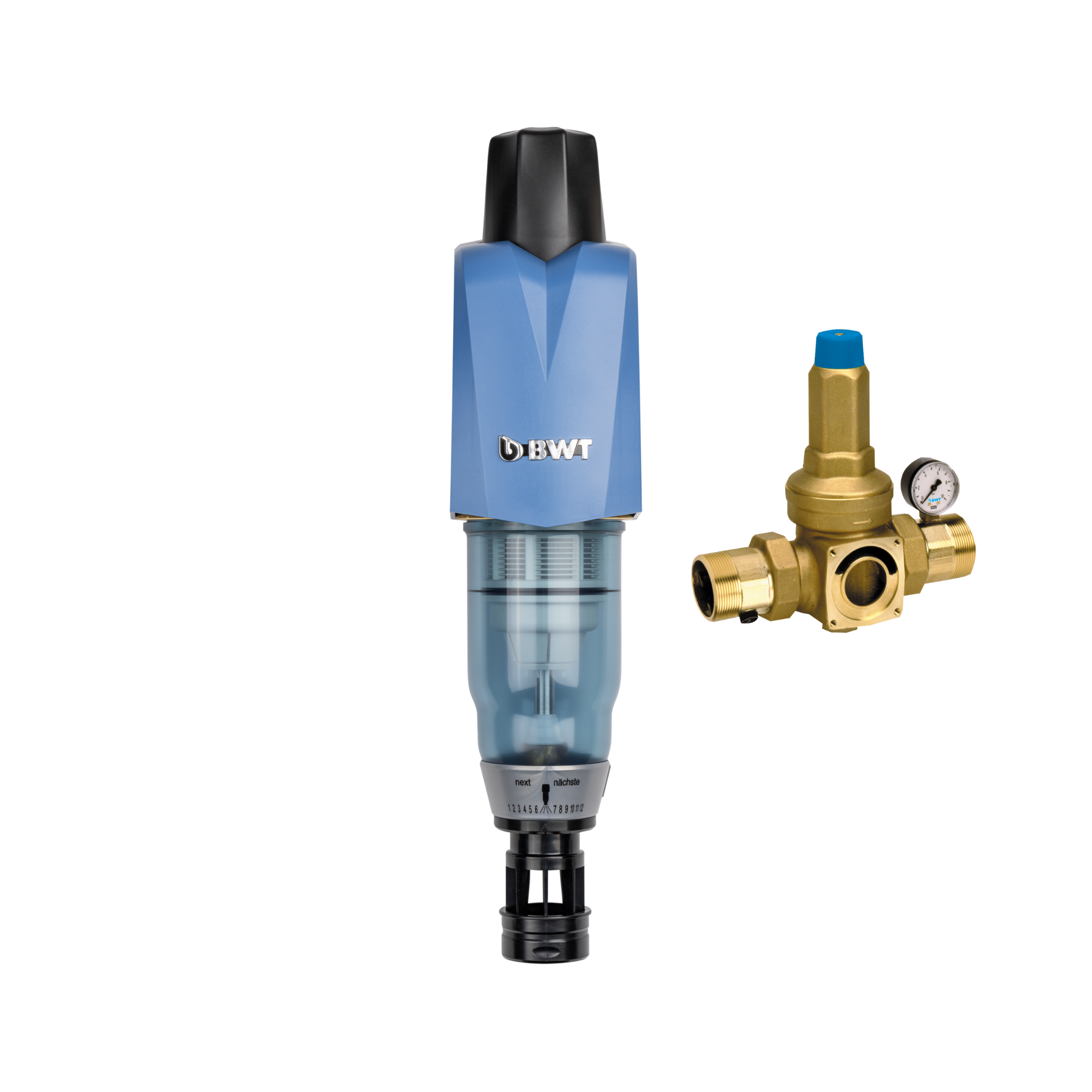

CONNECTION PIECE HWS
For filter unit Infinity size 2. The 4-hole connection piece can be mounted horizontally or vertically. High quality brass fitting with 4 screws, seals and connection threads. The connection piece HWS also includes an integrated pressure reducer, pressure gauge and non-return valve.
| TYPE | DN 40 | DN 50 | |
| Nominal pressure | bar | 16 | 16 |
| Installation length inc. screw connection | mm | 295 | 260 |
| Installation length without screw connection | mm | 125 |
125 |
| Order no. | 50954 |
50955 |
