Description
Indoor drinking fountains and bottle fillers are modern, safe and ecological units with wide variety of applications, such as: educational facilities, offices, factories, administration departments, medical centers, etc.
Made of highest quality materials they meet the hygienic requirements of PZH and NSF, and the wall mounted models also meet the requirements for barrier-free access for people with disabilities. In order to adapt them to the contemporary circumstances some models are equipped with motion detectors allowing touchless use. All this is to ensure the highest levels of hygiene and safety, as well as the greatest possible convenience in use.

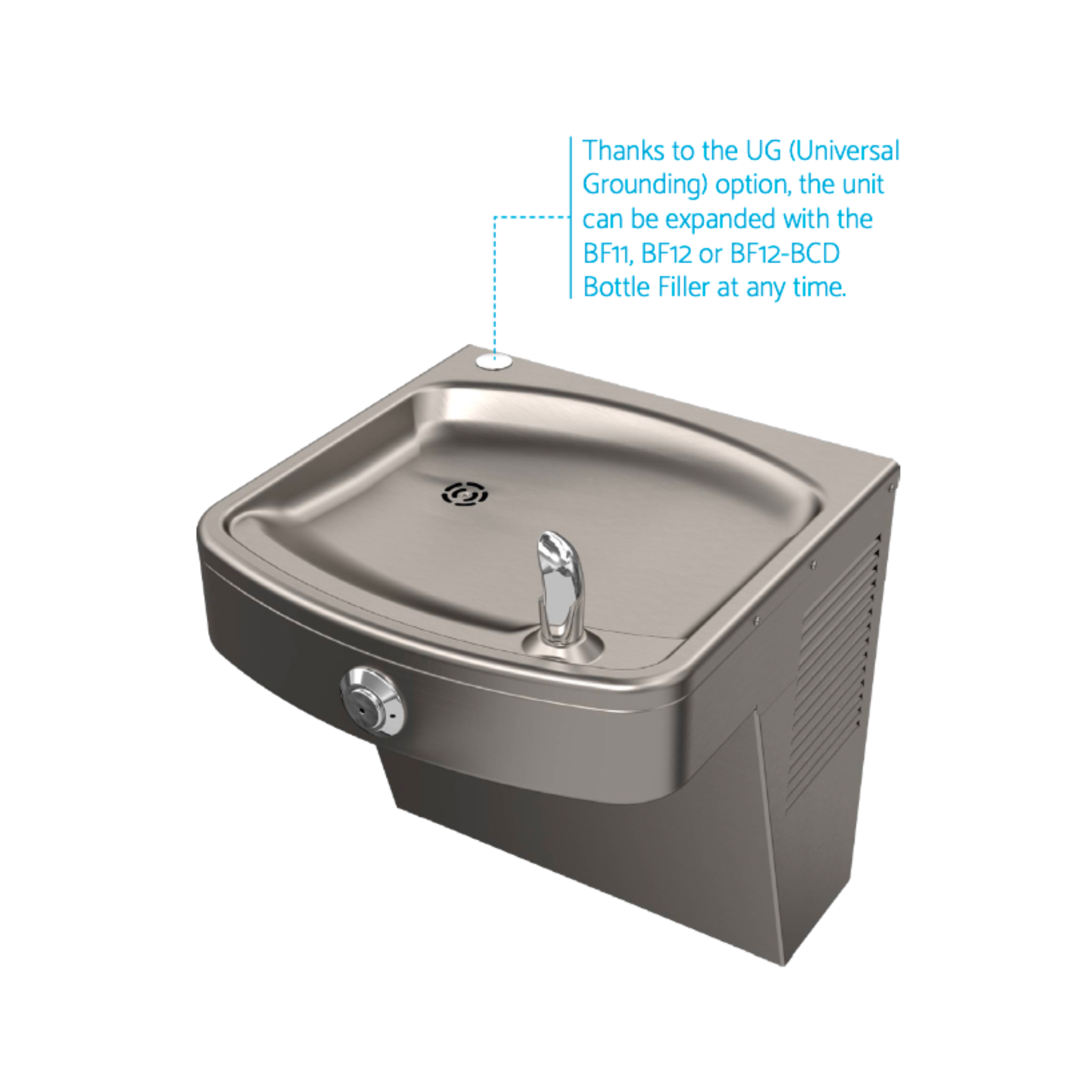

MODEL A171 (A171400S-UG-VR-IPL) Drinking fountain
- Ideal for schools, customer service offices, hospitals and medical centrs. Provides unlimited access to drinking water for all who need it.
- Allows drinking water without using a cup or bottle. Special design of the bowl and bubbler also allows convenient filling of bottles.
- Designed only for indoor applications.
- Activated by a self-closing activation button (a touchless, sensor activated version is also available).
- Equipped with a vandal-resistant, rugged bubbler.
- Meets requirements for barrier-free access for people with disabilities (ADA).
- Model A171.8 has built-in water cooler
H20 to go! overview
| Product code |
Bottle filler |
Drinking fountain |
Sensor activation |
Sensor power supply |
Bottle counter |
Water cooler |
|
|
A171 |
142.300.300 |
No |
1 |
No |
- |
No |
No |
|
A171.8 |
142.300.302 |
No |
1 |
No |
- |
No |
Yes |
|
A172 |
142.300.314 |
No |
2 |
No | - |
No |
No |
|
A172.8 |
142.300.310 |
No |
2 | No | - |
No |
Yes |
|
A171-BF11 |
142.300.304 |
Yes |
1 | No | - |
No |
No |
|
A171-BF12 |
142.300.308 |
Yes |
1 | Yes | 220V |
No |
No |
|
A171-BF12-BCD |
142.300.303 |
Yes |
1 | Yes | 220V | Yes | No |
|
A171.8-BF11 |
142.300.305 |
Yes |
1 | No | 220V |
No |
Yes |
|
A171.8-BF12 |
142.300.309 |
Yes |
1 | Yes | 220V |
No |
Yes |
|
A171.8-BF12-BCD |
142.300.306 |
Yes |
1 | Yes | 220V | Yes | Yes |
|
BF15 |
142.300.204 |
Yes |
- | No | - | No | No |
|
BF16 |
142.300.201 |
Yes |
- | Yes | 220V | No | No |
|
BF16-BAT |
142.300.206 |
Yes |
- | Yes | 6xAA | No | No |
|
BF16-BCD |
142.300.203 |
Yes |
- | Yes | 220V | Yes | No |
|
BF158 |
142.300.211 |
Yes |
- | No | 220V | No | Yes |
|
BF168 |
142.300.209 |
Yes |
- | Yes | 220V | No | Yes |
|
BF168-BCD |
142.300.210 |
Yes |
- | Yes | 220V | Yes | Yes |
|
A910 |
142.700.003 |
No |
- | No | 220V | No | Yes |
Downloads
Submittal A171-UG-VR Drink Fountain
Installation Instructions Manual A171-UG, A171-UG-SO, A171-UG-VR Drink
