Description
Indoor drinking fountains and bottle fillers are modern, safe and ecological units with wide variety of applications, such as: educational facilities, offices, factories, administration departments, medical centers, etc.
Made of highest quality materials they meet the hygienic requirements of PZH and NSF, and the wall mounted models also meet the requirements for barrier-free access for people with disabilities. In order to adapt them to the contemporary circumstances some models are equipped with motion detectors allowing touchless use. All this is to ensure the highest levels of hygiene and safety, as well as the greatest possible convenience in use.

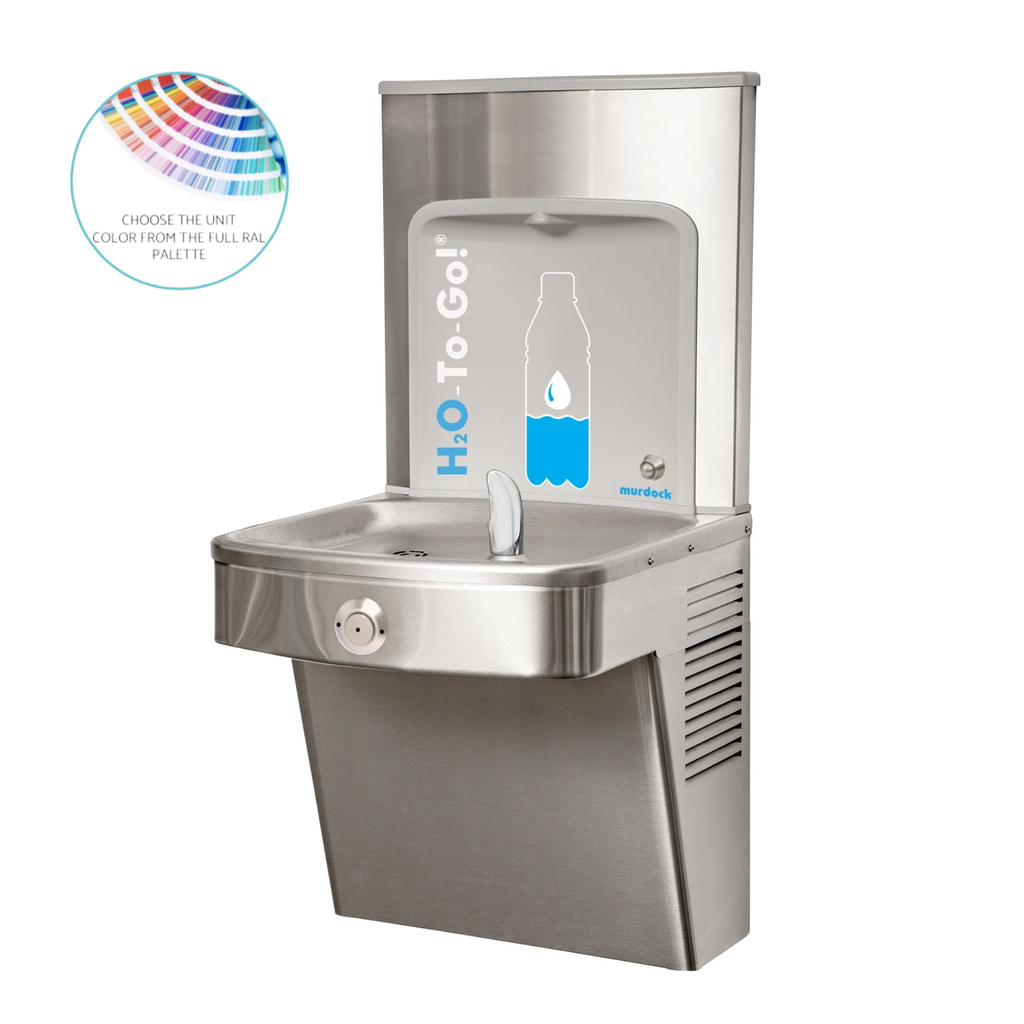

MODEL A171.8-BF11 Indoor drinking water station, water cooler, button
This unit is ideal for administration offices, customer service offices, workplaces and schools. Provides access to drinking water to all who need it and allows filling of bottles, containers, carafes and jugs.
- The drinking fountain and the bottle filler are activated by separate self-closing buttons or by sensors, allowing touchless operation of the unit.
- Unit designed only for indoor applications.
- Meets requirements for barrier-free access for people with disabilities when installed at a specific height.
- Models with -BCD option are equipped with a bottle counter, displaying the number of saved 0.5 liter plastic bottles.
H20 to go! overview
| Product code |
Bottle filler |
Drinking fountain |
Sensor activation |
Sensor power supply |
Bottle counter |
Water cooler |
|
|
A171 |
142.300.300 |
No |
1 |
No |
- |
No |
No |
|
A171.8 |
142.300.302 |
No |
1 |
No |
- |
No |
Yes |
|
A172 |
142.300.314 |
No |
2 |
No | - |
No |
No |
|
A172.8 |
142.300.310 |
No |
2 | No | - |
No |
Yes |
|
A171-BF11 |
142.300.304 |
Yes |
1 | No | - |
No |
No |
|
A171-BF12 |
142.300.308 |
Yes |
1 | Yes | 220V |
No |
No |
|
A171-BF12-BCD |
142.300.303 |
Yes |
1 | Yes | 220V | Yes | No |
|
A171.8-BF11 |
142.300.305 |
Yes |
1 | No | 220V |
No |
Yes |
|
A171.8-BF12 |
142.300.309 |
Yes |
1 | Yes | 220V |
No |
Yes |
|
A171.8-BF12-BCD |
142.300.306 |
Yes |
1 | Yes | 220V | Yes | Yes |
|
BF15 |
142.300.204 |
Yes |
- | No | - | No | No |
|
BF16 |
142.300.201 |
Yes |
- | Yes | 220V | No | No |
|
BF16-BAT |
142.300.206 |
Yes |
- | Yes | 6xAA | No | No |
|
BF16-BCD |
142.300.203 |
Yes |
- | Yes | 220V | Yes | No |
|
BF158 |
142.300.211 |
Yes |
- | No | 220V | No | Yes |
|
BF168 |
142.300.209 |
Yes |
- | Yes | 220V | No | Yes |
|
BF168-BCD |
142.300.210 |
Yes |
- | Yes | 220V | Yes | Yes |
|
A910 |
142.700.003 |
No |
- | No | 220V | No | Yes |
Downloads
Submittal A171.8-UG-VR-BF Water Cooler-Bottle Filler
Installation Instructions Manual A171.8-UG, A171.8-UG-SO, A171.8-UG-VR Water Coolers
