Description
STOP THE USE OF PLASTIC BOTTLES
The AQA drink PRO COMMERCIAL water dispenser, in every way supports BWT’s commitment, where each individual can refill their personal bottle as many times as they wish. Particularly large, with a stripped back design, the AQA drink PRO COMMERCIAL water dispenser will allow every visitor to the public to fill their reusable flasks and bottles. Featuring a generously proportioned service area, dispensing of chilled water is controlled by dual detection by infrared sensors, extremely intuitive and non-touch. To allow installation in any location, and notably to avoid the restrictive requirement for access to a waste water drain, the AQA drink PRO COMMERCIAL is fitted with an exceptionally large volume 5 l drip tray that is continuously monitored and very easy and safe to empty. The 100% epoxy steel cabinet was designed to ensure the excellent stability of the AQA drink PRO COMMERCIAL dispenser and to allow full, unhindered access to the technical components by fully opening the front of the machine.
→ Ideal for all locations open to the public
→ Cold water
→ Capacity: 80 l/h
The machine is delivered with a BWT filter head that allows the dispenser to be combined with BWTs extensive AQA drink mineralization and filtration solutions. In addition, periodic disinfection and cleaning can be performed using BWT’s EasyCare system.
→ TOUCHLESS FILLING OF ANY BOTTLE
→ ELECTRONICALLY MONITORED 5 L DRIP TRAY, EASY TO EMPTY
→ TECHNICAL ACCESS TO THE MACHINE BY OPENING IT FRONTALLY
| Item n° - WD | 125591855 |
| C - Cold | + |
| A - Ambient | - |
| S - Sparkling | - |
| H - Hot | - |
| Cooling capacity l/h (Δt= 10°C) | 80 |
| Number of people (approx.) | 10/50 |
|
Cooling technology |
Ice bank |
| Cooling control | +4 °C to +7 °C Thermostat |
| Recirculation pump/stirrer | Stirrer |
| Compressor power | 280 w |
| Refrigerant | R134a |
| Carbonator capacity | - |
| Power supply | 230 V - 50 Hz |
| Maximum power consumption | 310 W |
| Pump type | - |
| Ø water inlet pipe | 6,35 mm |
| Ø CO2 inlet pipe | - |
| Maximum CO2 inlet pressure | - |
| Water inlet pressure (min./max.) | 2 / 4,5 bar |
| Dimensions WD (WxDxH) mm | 550x550x1605 |
| Weight kg (approx.) | 71 |
| Material of construction | Powder coated steel |
| Water selection poinT | Touchless |
DESIGN

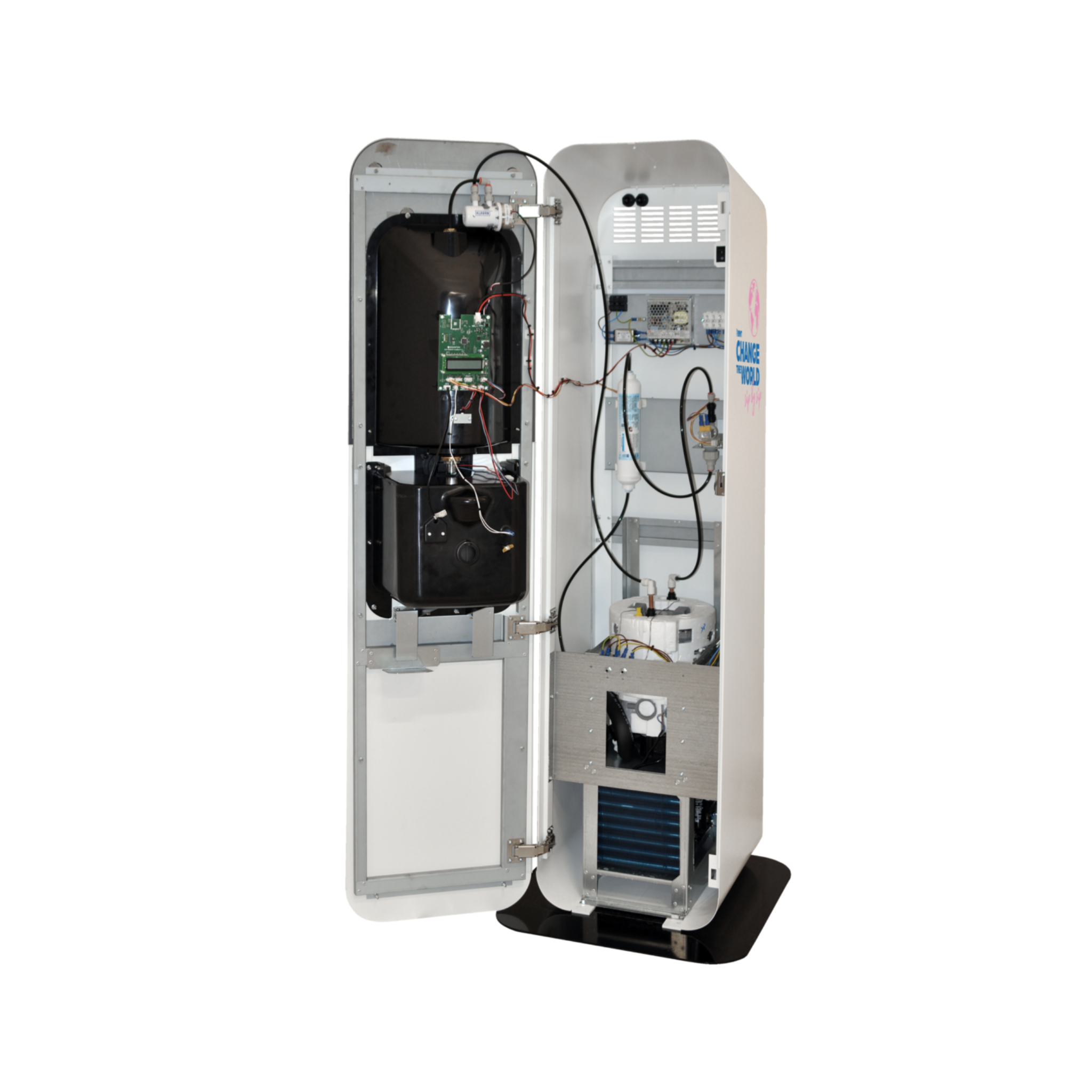

This water dispenser features real innovations. With an overall height of 1,60 m its dispensing area is generously proportioned and accessible to all. Made of epoxy painted sheet metal, it can be customized. Those in charge of maintenance will appreciate its rounded shape, while technicians can open the machine fully for unhindered access to all the technical components.
TECHNICAL FEATURES
Fitted with a reliable ice bank with a capacity of 4,6 l, the AQA drink PRO COMMERCIAL is designed to be supplied with water and electricity from a technical ceiling grid. Its epoxy steel cabinet is delivered assembled on a solid pedestal that may in turn be secured to the floor if necessary. The machine’s chilling function can be suspended during winter periods for added comfort and to save energy. A version that can be connected to a waste water drain will be released during 2023, as will a version offering ambient water, without chilling. In accordance with the more demanding ecodesign policy for these machines, all plastic parts of the machines are made of post consumer recycled plastic.
INSTALLATION
The installation is very easy: a simple connection to the water mains using the supplied kit is all that is needed.
