Description
Indoor drinking fountains and bottle fillers are modern, safe and ecological units with wide variety of applications, such as: educational facilities, offices, factories, administration departments, medical centers, etc.
Made of highest quality materials they meet the hygienic requirements of PZH and NSF, and the wall mounted models also meet the requirements for barrier-free access for people with disabilities. In order to adapt them to the contemporary circumstances some models are equipped with motion detectors allowing touchless use. All this is to ensure the highest levels of hygiene and safety, as well as the greatest possible convenience in use.

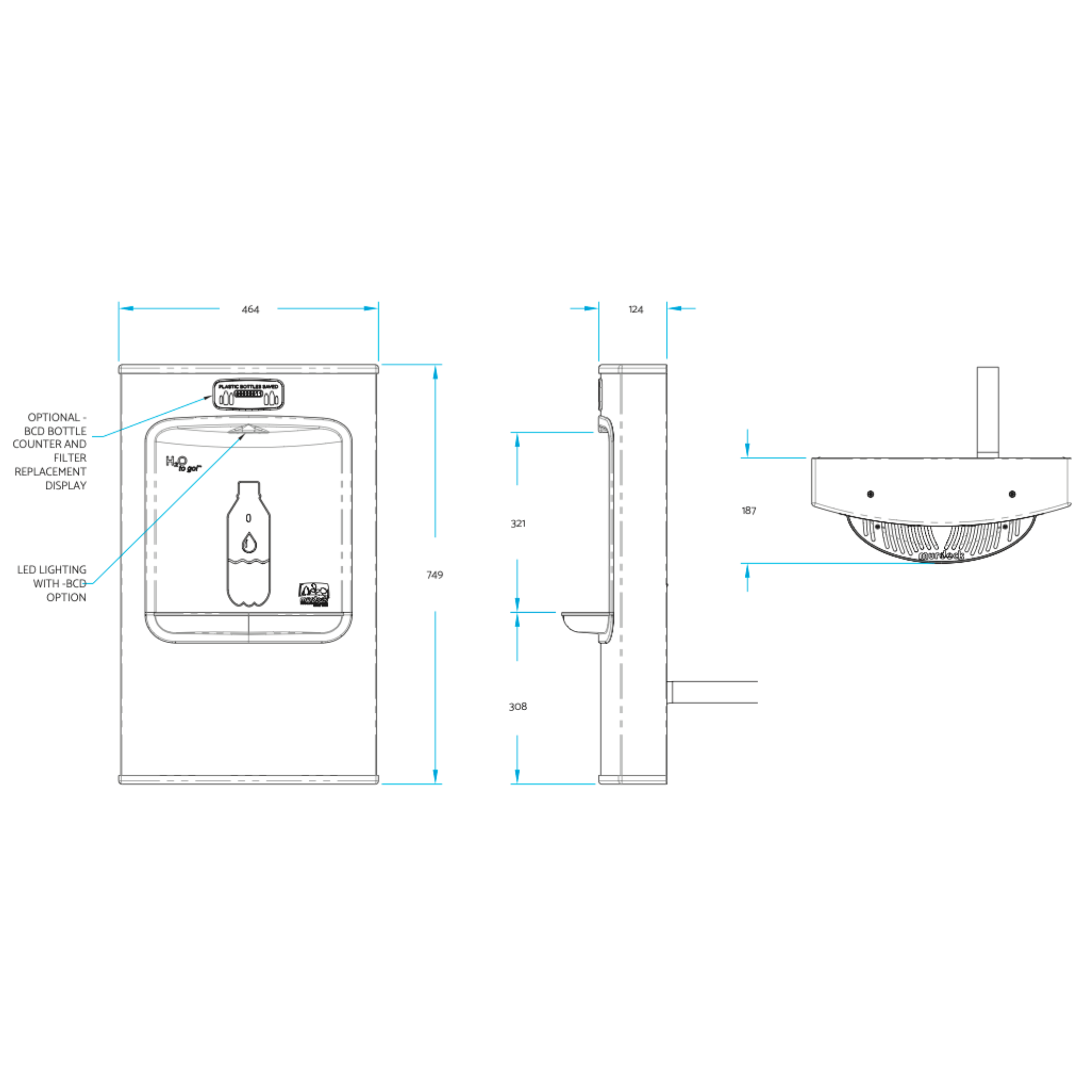

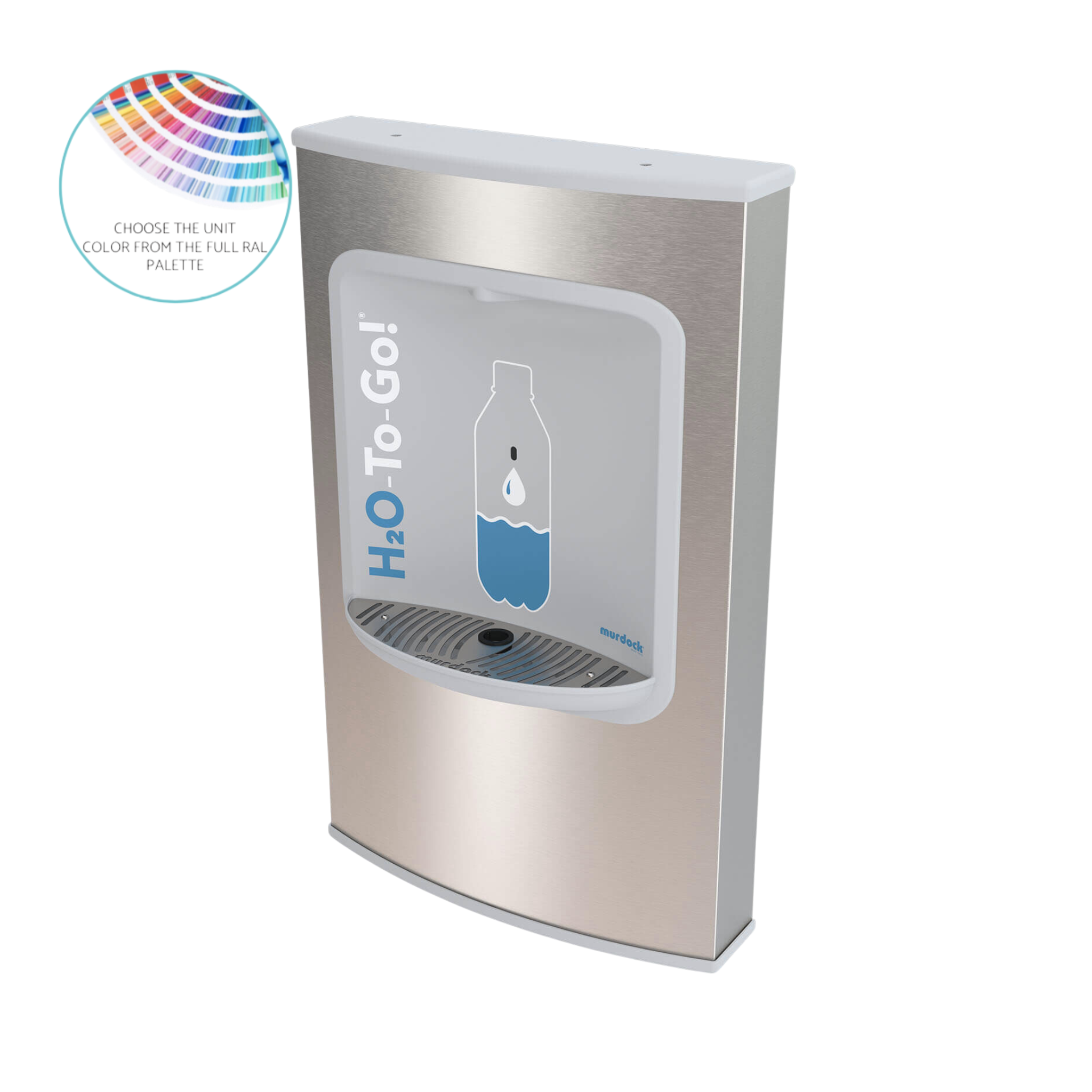

MODEL BF16 Wall mounted bottle filler activated by sensor
Provides convenient filling bottle, bottles and containers. The sensor activated version allows fully hygienic and touchless operation.
Models with -BCD option are equipped with a bottle counter, displaying the number of saved 0.5 liter plastic bottles. The small size of the unit and the highest quality of finish make this device attract attention, and perfectly blend into the various types of interior styles. An ideal solution for schools, workplaces, administration offices, shopping malls, museums, sports centers, etc.
H20 to go! overview
Product code |
Bottle filler |
Drinking fountain |
Sensor activation |
Sensor power supply |
Bottle counter |
Water cooler |
|
A171 |
142.300.300 |
No |
1 |
No |
- |
No |
No |
A171.8 |
142.300.302 |
No |
1 |
No |
- |
No |
Yes |
A172 |
142.300.314 |
No |
2 |
No | - |
No |
No |
A172.8 |
142.300.310 |
No |
2 | No | - |
No |
Yes |
A171-BF11 |
142.300.304 |
Yes |
1 | No | - |
No |
No |
A171-BF12 |
142.300.308 |
Yes |
1 | Yes | 220V |
No |
No |
A171-BF12-BCD |
142.300.303 |
Yes |
1 | Yes | 220V | Yes | No |
A171.8-BF11 |
142.300.305 |
Yes |
1 | No | 220V |
No |
Yes |
A171.8-BF12 |
142.300.309 |
Yes |
1 | Yes | 220V |
No |
Yes |
A171.8-BF12-BCD |
142.300.306 |
Yes |
1 | Yes | 220V | Yes | Yes |
BF15 |
142.300.204 |
Yes |
- | No | - | No | No |
BF16 |
142.300.201 |
Yes |
- | Yes | 220V | No | No |
BF16-BAT |
142.300.206 |
Yes |
- | Yes | 6xAA | No | No |
BF16-BCD |
142.300.203 |
Yes |
- | Yes | 220V | Yes | No |
BF158 |
142.300.211 |
Yes |
- | No | 220V | No | Yes |
BF168 |
142.300.209 |
Yes |
- | Yes | 220V | No | Yes |
BF168-BCD |
142.300.210 |
Yes |
- | Yes | 220V | Yes | Yes |
A910 |
142.700.003 |
No |
- | No | 220V | No | Yes |
Downloads
Installation Instructions (Manual BF15 (pushbutton) or BF16 (sensor) Bottle Filler)
