Description
Indoor drinking fountains and bottle fillers are modern, safe and ecological units with wide variety of applications, such as: educational facilities, offices, factories, administration departments, medical centers, etc.
Made of highest quality materials they meet the hygienic requirements of PZH and NSF, and the wall mounted models also meet the requirements for barrier-free access for people with disabilities. In order to adapt them to the contemporary circumstances some models are equipped with motion detectors allowing touchless use. All this is to ensure the highest levels of hygiene and safety, as well as the greatest possible convenience in use.

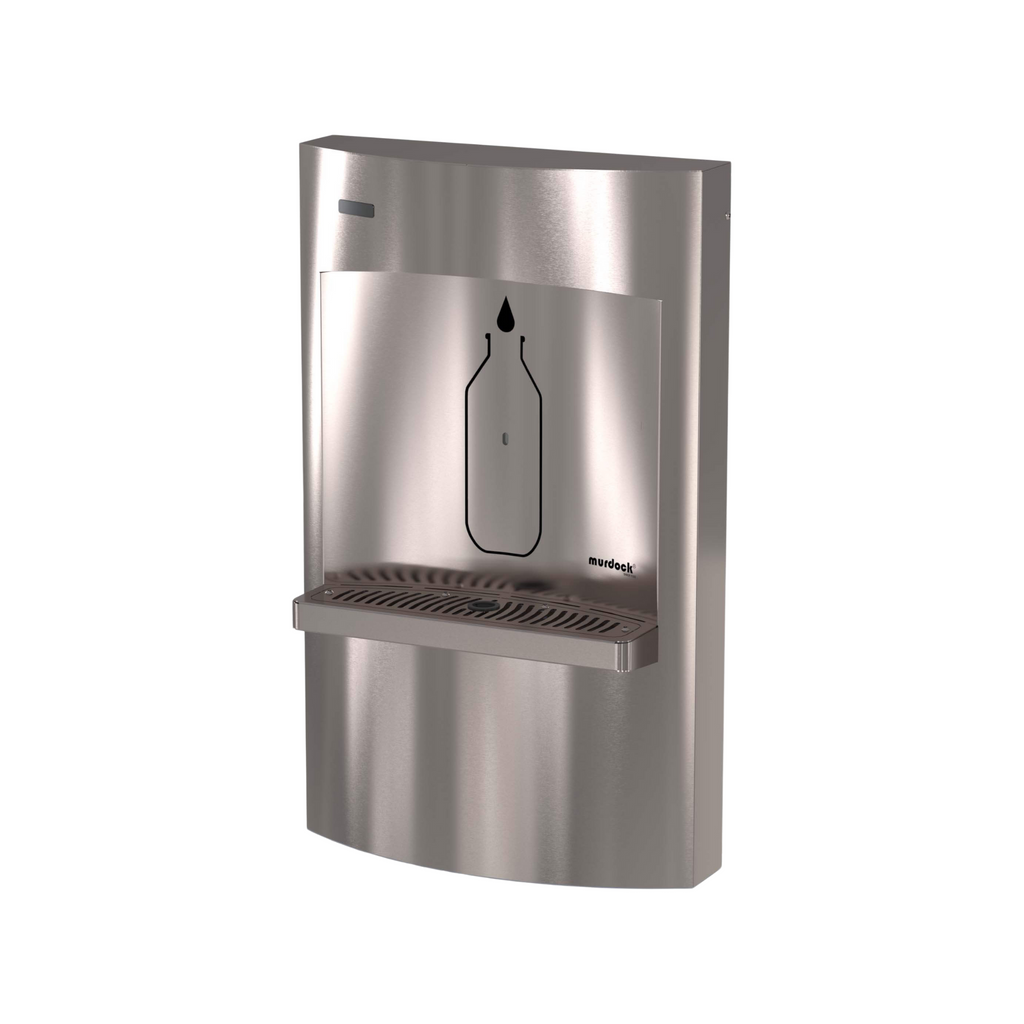

The SpringH20™ BF168S Bottle Filler is a standalone sensor-operated stainless steel bottle filler. This bottle filler effortlessly combines stylish good looks with key features sought by commercial builders, such as vandal resistance and easy maintenance.
Standard Features
- Heavy-gauge type 304 stainless steel polished to #4 satin finish
- Vandal resistant, seamless alcove
- ADA compliant
- Touchless sensor operation
- 120V AC/9V DC plug-in transformer
- 1.2 gallon (4.54 liters) per minute laminar flow nozzle
- 20 second maximum run time
- Bottle counter display with LED illumination and filter status lights (optional)
- Standalone unit
- Auto-Purge Sensor function shall activate Bottle Filler for 10 second duration 24 hours after last activation as standard and allow for purge cycle adjustment. (optional remote to change intervals available.)
- Rated for indoor and outdoor use
Option -BCD provides a digital Bottle Counter Display indicating the quantity of 16 oz (0.47 liters) disposable plastic bottles saved from a landfill. The option also displays the Water Filter Status and includes LED Light to illuminate and brighten the Bottle Fill area when a Bottle is detected.
H20 to go! overview
| Product code |
Bottle filler |
Drinking fountain |
Sensor activation |
Sensor power supply |
Bottle counter |
Water cooler |
|
|
A171 |
142.300.300 |
No |
1 |
No |
- |
No |
No |
|
A171.8 |
142.300.302 |
No |
1 |
No |
- |
No |
Yes |
|
A172 |
142.300.314 |
No |
2 |
No | - |
No |
No |
|
A172.8 |
142.300.310 |
No |
2 | No | - |
No |
Yes |
|
A171-BF11 |
142.300.304 |
Yes |
1 | No | - |
No |
No |
|
A171-BF11S |
142.300.600 |
Yes |
1 | No | - | No | No |
|
A171-BF12 |
142.300.308 |
Yes |
1 | Yes | 220V |
No |
No |
|
A171-BF12S |
142.300.601 |
Yes |
1 | Yes | 220V | No | No |
|
A171-BF12-BCD |
142.300.303 |
Yes |
1 | Yes | 220V | Yes | No |
|
A171-BF12S-BCD |
142.300.602 |
Yes |
1 | Yes | 220V | Yes | No |
|
A171.8-BF11 |
142.300.305 |
Yes |
1 | No | 220V |
No |
Yes |
|
A171.8-BF11S |
142.300.603 |
Yes |
1 | No | 220V | No | Yes |
|
A171.8-BF12 |
142.300.309 |
Yes |
1 | Yes | 220V |
No |
Yes |
|
A171.8-BF12S |
142.300.604 |
Yes |
1 | Yes | 220V | No | Yes |
|
A171.8-BF12-BCD |
142.300.306 |
Yes |
1 | Yes | 220V | Yes | Yes |
|
A171.8-BF12S-BCD |
142.300.605 |
Yes |
1 | Yes | 220V | Yes | Yes |
|
BF15 |
142.300.204 |
Yes |
- | No | - | No | No |
|
BF15S |
142.300.700 |
Yes |
- | No | - | No | No |
|
BF16 |
142.300.201 |
Yes |
- | Yes | 220V | No | No |
|
BF16S |
142.300.701 |
Yes |
- | Yes | 220V | No | No |
|
BF16-BAT |
142.300.206 |
Yes |
- | Yes | 6xAA | No | No |
|
BF16-BCD |
142.300.203 |
Yes |
- | Yes | 220V | Yes | No |
|
BF16S-BCD |
142.300.702 |
Yes |
- | Yes | 220V | Yes | No |
|
BF158 |
142.300.211 |
Yes |
- | No | 220V | No | Yes |
|
BF168 |
142.300.209 |
Yes |
- | Yes | 220V | No | Yes |
|
BF168-BCD |
142.300.210 |
Yes |
- | Yes | 220V | Yes | Yes |
|
A910 |
142.700.003 |
No |
- | No | 220V | No | Yes |
