Description

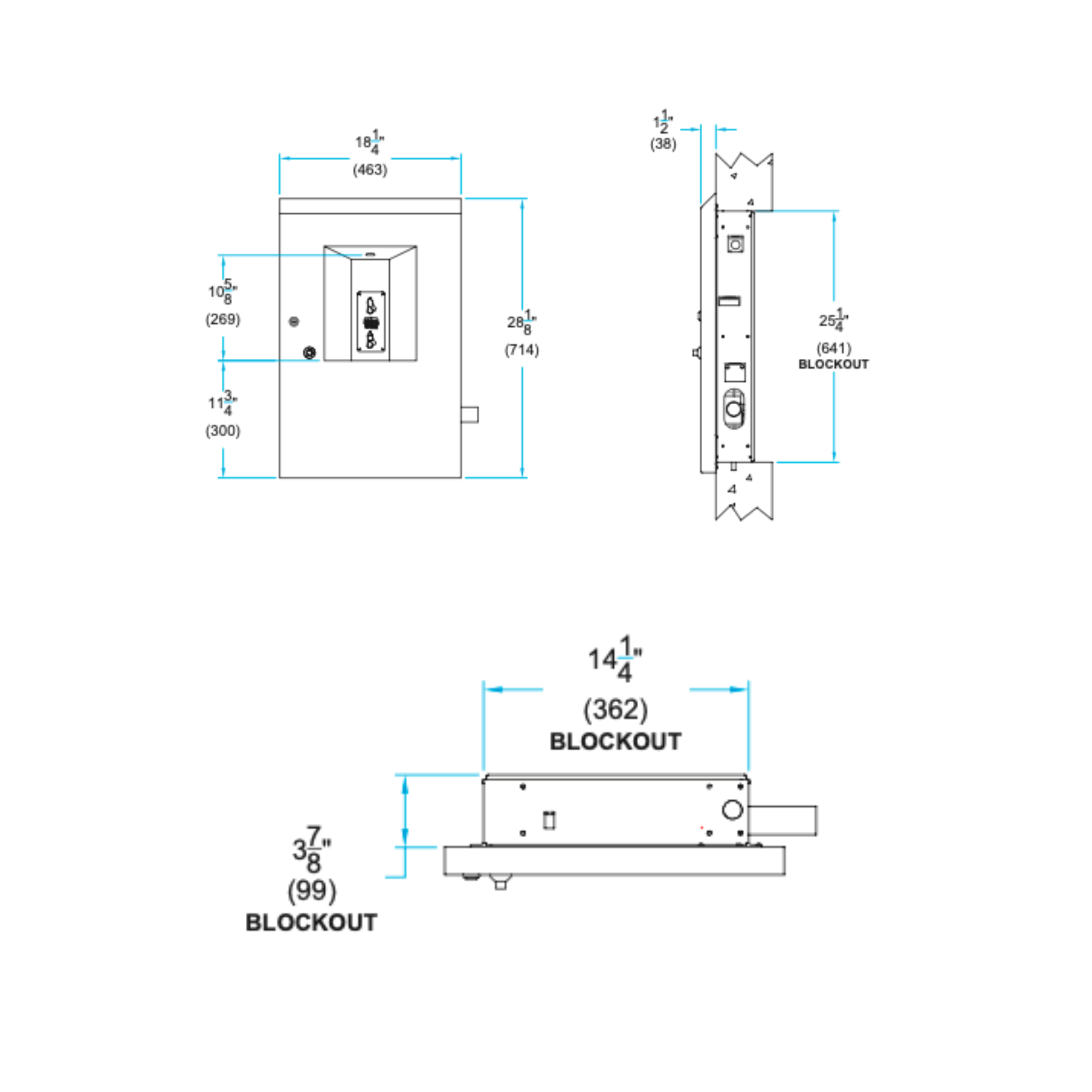

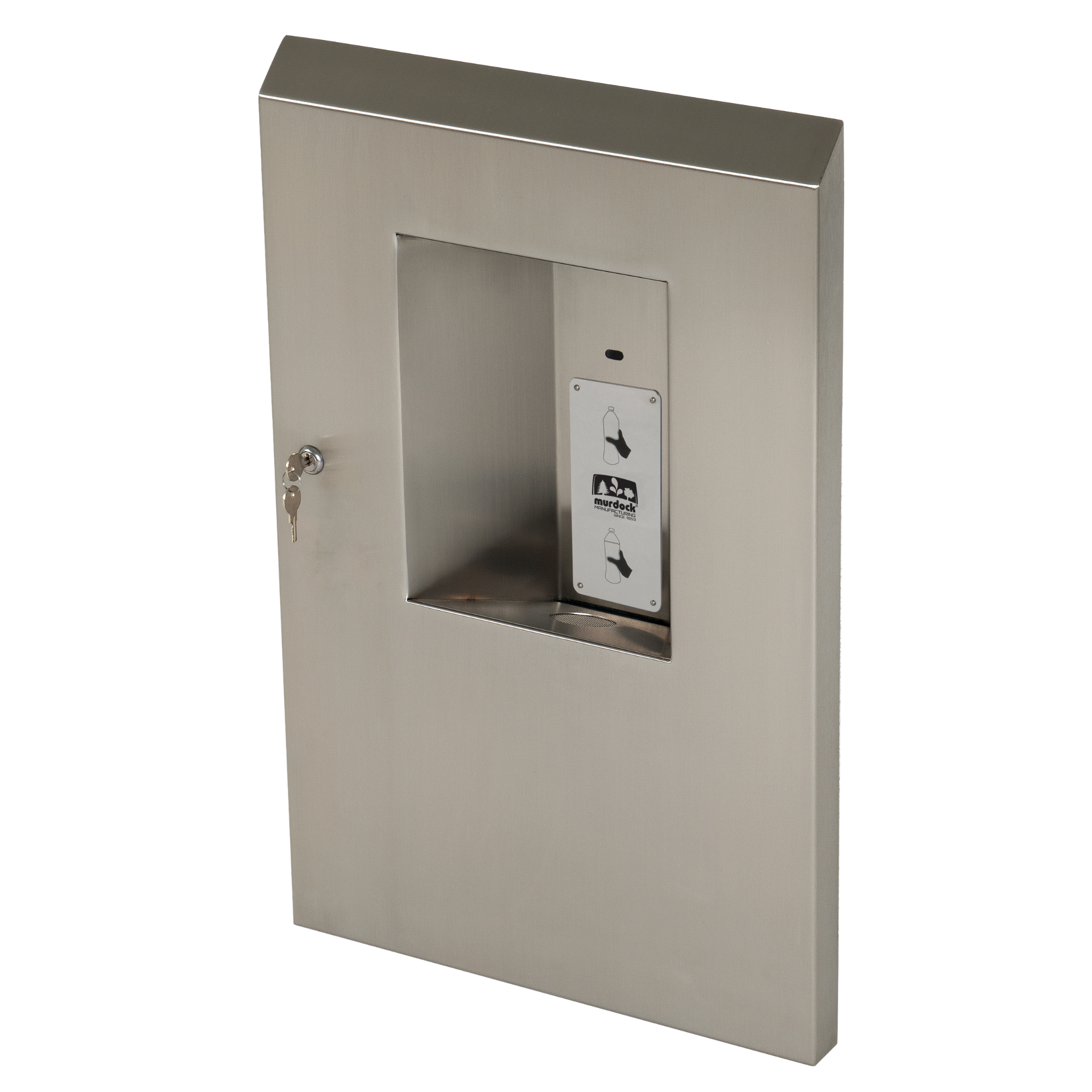

Semi-Recessed, Push Button (BF3) or Sensor Operated (BF4) Water Bottle Filling Station - Non Refrigerated, Steinless Steel - both models can be mounted in a 4” (102 mm) or larger wall space for simple installation virtually anywhere. Housing has a slim and trim look that blends into your environment.
- Unit also has a strong, ligature resistant, and vandal-resistant design for years of trouble-free service.
- When installed properly, the bottle filler complies with ADA forward and side reach requirements.
- Bottle filler is fabricated of type 304 stainless steel polished to a satin finish.
- Unit is certified to ANSI A117.1, Public Law 111-380 (NO-LEAD), CHSC 116875 and NSF/ANSI 61, Section 9.
GW Series overview
| Product code |
Housing material |
Activation |
Refrigerator |
ADA | Freeze-resistan | |
|
BF3 |
142.100.100 |
Stainless Steel |
Push Button |
No |
Yes |
No |
|
BF4 |
142.700.328 |
Stainless Steel |
Sensor |
No | Yes |
No |
|
M-OBR4 |
142.200.300 |
Stainless Steel |
Sensor, Push Button |
No | Yes |
Available Option |
Downloads
Installation Instructions Manual BF3 (pushbutton) or BF4 (sensor) Bottle Filler
