Description
Practical extension for your water filter system at home
- AQA Monitor with flow sensor: Counts the flow rate of filtered water and monitors the filter capacity of the filter medium
- Sends acoustic signals when filter change is required
- Consists of flow sensor and counter unit (display)
Description

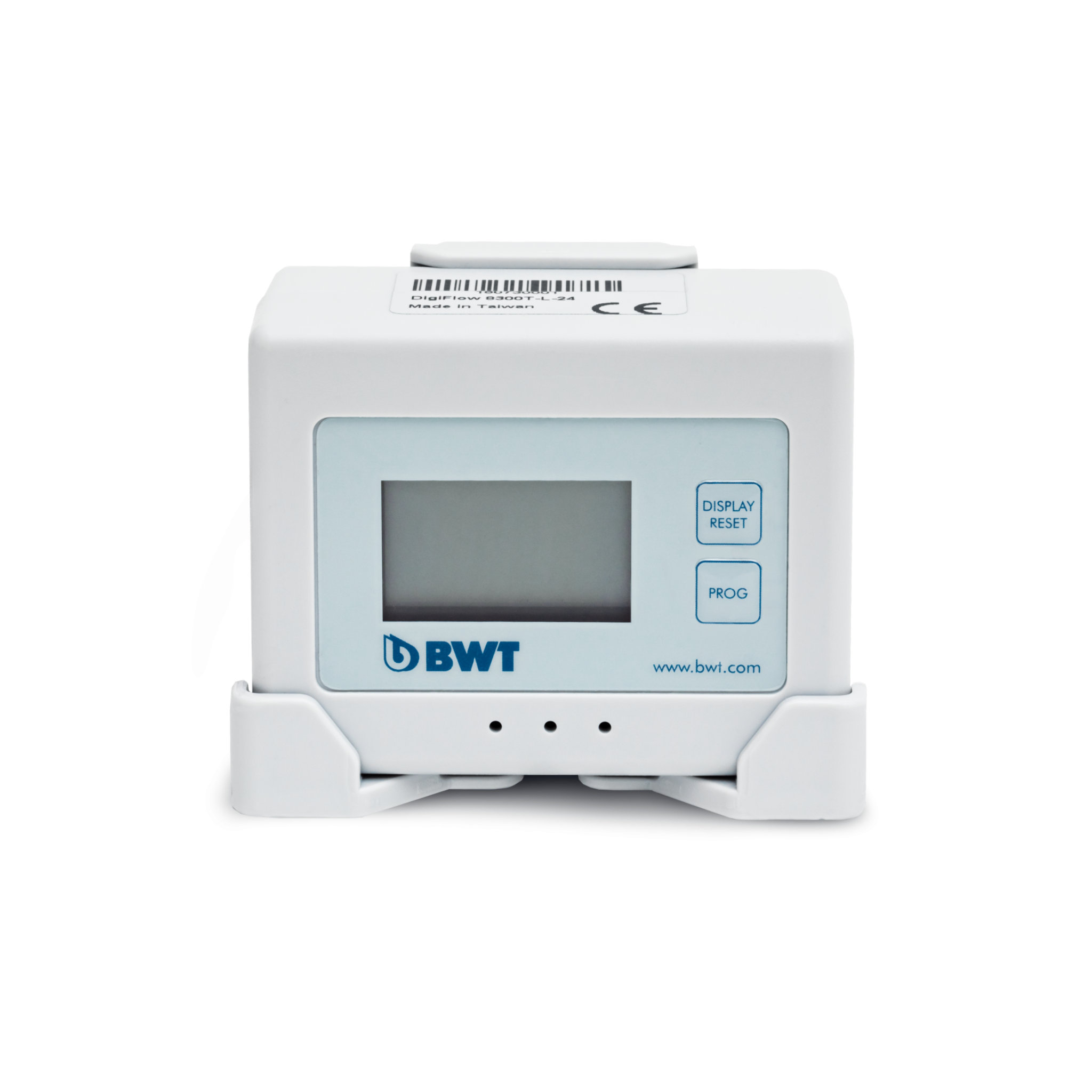

The AQA Monitor with flow sensor is used to monitor the filter capacity of your filter cartridge and gives an acoustic signal when the filter needs to be replaced. It counts the amount of water filtered through the filter.
The AQA Monitor consists of the flow sensor and the counter unit (=display), which displays the filter capacity and can be programmed.
Scope of delivery
- 1 x counter unit
- 1 x bracket for wall mounting
- 1 x flow sensor
- 2 x flat gaskets
- 2 x AA batteries
Technical Data
| Connection thread (IN/OUT) | 3/8” nut x 3/8” connection thread |
| Intake pressure (min/max) | 2 - 8 bar |
| Flow capacity | 0.8 – 15 l/min |
| Flow rate deviations | +/– 5 % |
| Water temperature (min/max) | +4 – +30 °C |
| Ambient temperature (min/max) | +4 – +40 °C |
| Dimensions (L x W x H) | 80 x 47 x 30 mm |
| Installation position | horizontal |
