Description
- Filling and refilling of heating systems according to the BWT Pure HEATING Commandment
- Heating water without chemicals for sustainable occupational safety, consumer protection and drinking water protection
- Protection against corrosion, deposits and microbiological corrosion
- Low-salt operation according to ÖNORM H 5195-1
- Complete package consisting of heating filling block AQA therm HFB, heating water softener station AQA therm HES and salt-reducing cartridge AQA therm SRC
Product description

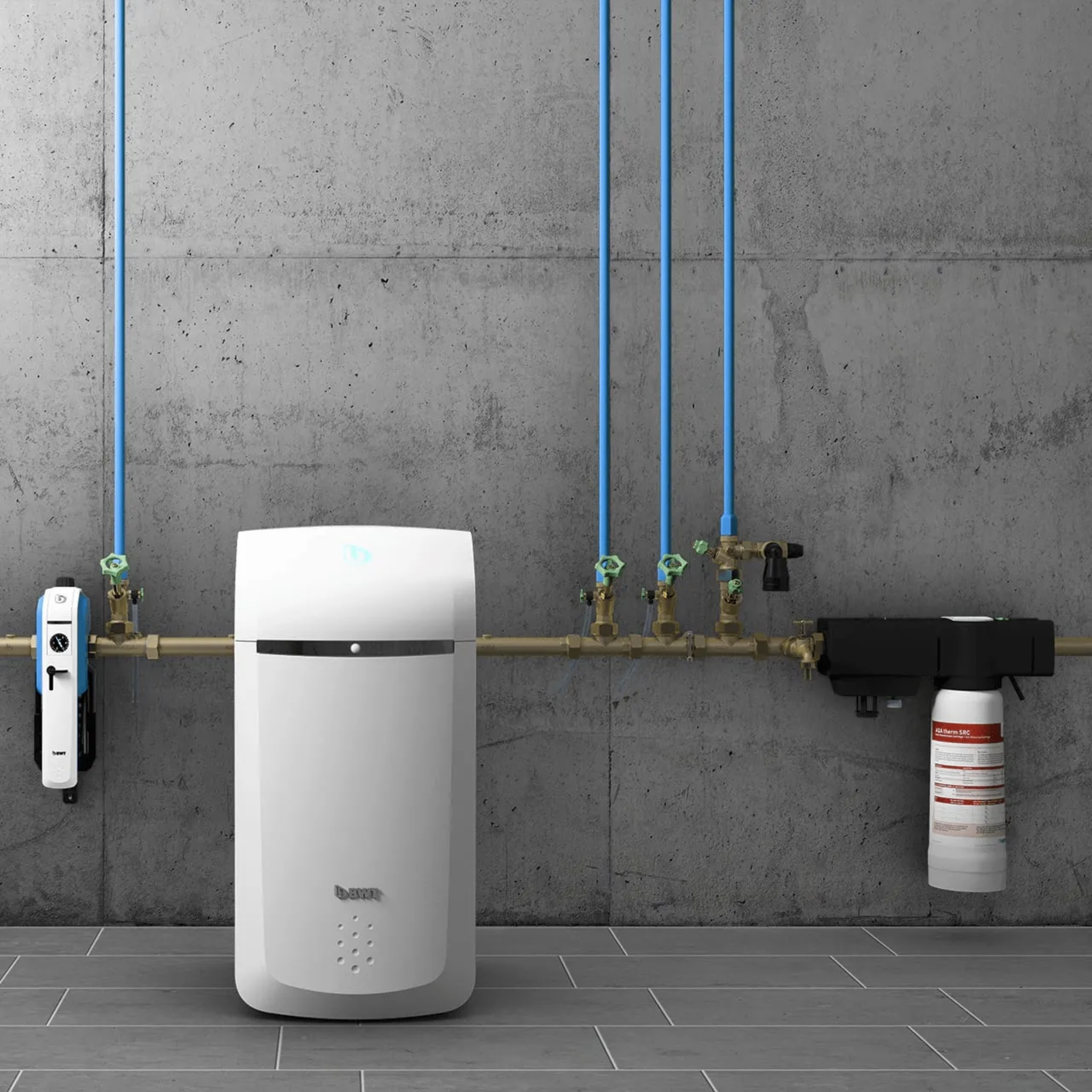

AQA therm HWG (heating water group)
With the AQA therm HWG you can easily refill your heating system with water that has been treated in accordance with standards at any time. Depending on the heating volume and the water composition, it can also be used for filling purposes.
- for filling and refilling systems
- System separator according to EN 1717: Protects drinking water from backflow and interference from the heating circuit
- electronic display for easy settings
- Capacity approx. 240 litres per SRC-L cartridge at 20 °dH
- Capacity approx. 488 litres per SRC-XL cartridge at 20 °dH
The AQA therm HWG consists of the components AQA therm HFB (heating filling block), AQA therm HES (heating station) and the disposable cartridge AQA therm SRC (salt-reducing cartridge).
An AQA therm HRC (hardness-reducing cartridge) can also be screwed onto the AQA therm HES (softening).

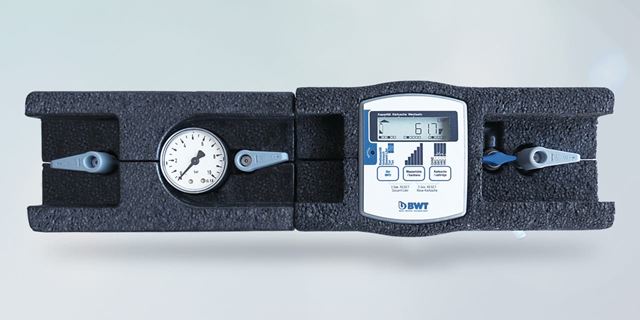

AQA therm HFB (heating filling block)
Only with this protection can the heating installation be connected permanently – and thus cleanly, neatly and hygienically – to the domestic water installation.
- Maintenance and filling shut-off
- System separator BA
- Pressure reducer adjustable up to 1.5-4 bar
- Ergonomically arranged pressure gauge for pressure display in the filling line
AQA therm HES (heating station)
- Installation: Horizontal with cartridge downwards
- Standard-compliant filling and refilling of heating systems
- Replaceable cartridge for low-salt (SRC) and hardness-reducing (HRC) operation
- Smart Setup - quick setting of all parameters
- smart operation - easy operation
- Alarm function for cartridge change

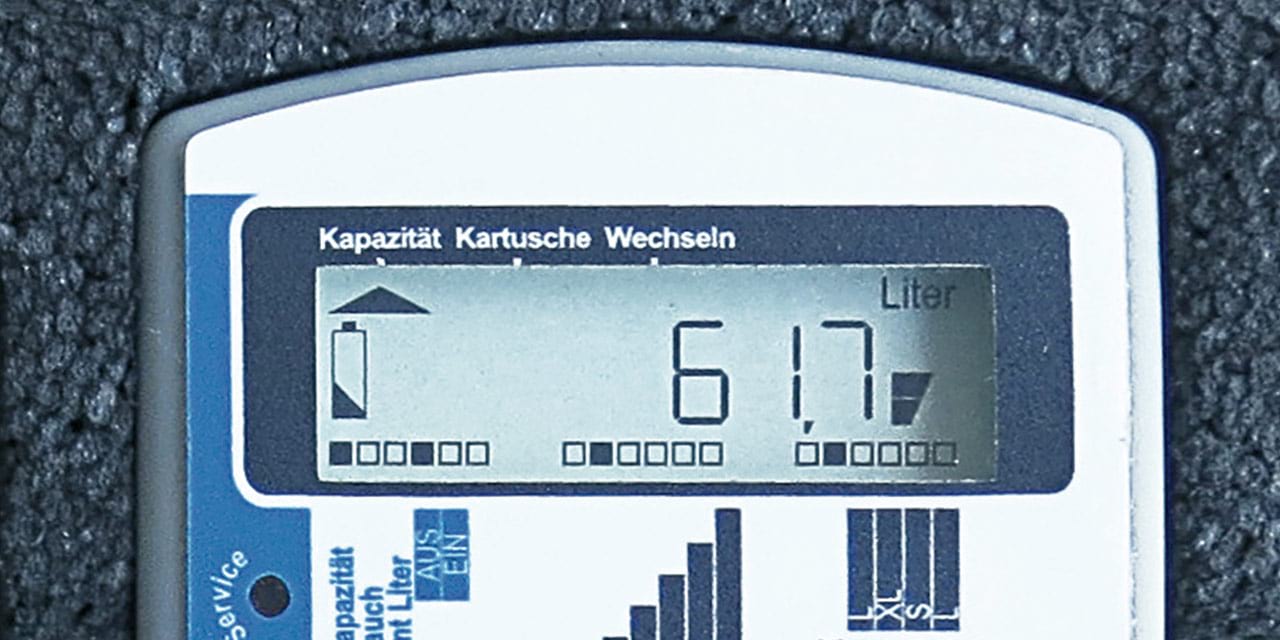

- Display with all important information

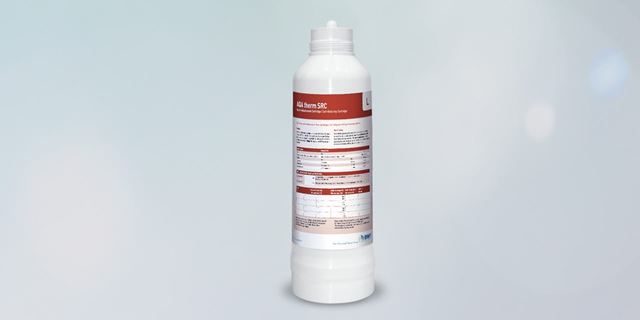

AQA therm SRC
The AQA therm SRC reduces the salt content in the filling and supplementary water, thereby reducing both limescale-forming and corrosion-causing water components. AQA therm SRC is available in two sizes:
- SRC-L : Capacity approx. 240 liters at 20° dH, max. flow rate: 5l/min
- SRC-XL : Capacity approx. 480 liters at 20° dH, max. flow rate: 15l/min
AQA therm HRC
The AQA therm HRC (hardness-reducing cartridge, not for use with aluminum!) can be used optionally. Only lime-forming water components are reduced. The addition of inhibitors is necessary to prevent corrosion. AQA therm HRC is available in the following sizes:
- HRC small: Capacity 3 m³ x °dH (for refilling), max. flow rate: 3l/min
- HRC large: Capacity 14 m³ x °dH (for filling and refilling), max. flow rate: 5l/min
The AQA therm cartridges are produced in the Mondsee plant in accordance with the strict HACCP guidelines.
AQA therm HFB 1717 BA with 25 µm sieve |
| Item no. | 820425 |
| form | max. 10.0 bar |
| Back pressure (preset to 1.5 bar) | Adjustable from 1.5–4 bar |
| Kvs value | 0.75 m³/h |
| Total length (including screw connection) | 217 mm |
| Distance center drain connection | 88 mm |
| Total height | 200 mm |
| Distance center axis | 142.5 mm |
| Installation position | horizontal with drain connection downwards |
| Operating temperature | max.65 °C |
| Pressure gauge connection | G ¼" |
| Drain connection | HT40 |
| Connection thread input | ½" external thread (¾" external thread without screw connection) |
| Connection thread output | ½" external thread (¾" external thread without screw connection) |
| Minimum distance to the wall | 80 mm |
AQA therm HES |
| Item no. | 820423 |
| form | max. 4.0 bar |
| dimension | G ½" |
| Connection thread input | ¾" union nut (¾" external thread without screw connection) |
| Filling water | 30 °C |
| Device temperature with shut-off ball valve (closed) due to temperature transfer of the heating system | max. 50 °C |
| Ambient temperature | max. 40 °C |
| Connection thread output | ¾" external thread flat sealing |
| Height with Cartridge L = Large | 519.4mm |
| Length including connection screw L | 228.1mm |
| Length center HRC – HES output | 128.1mm |
| Kvs value (flow rate at Δp1bar) | max. 0.75 m³/h |
