Description

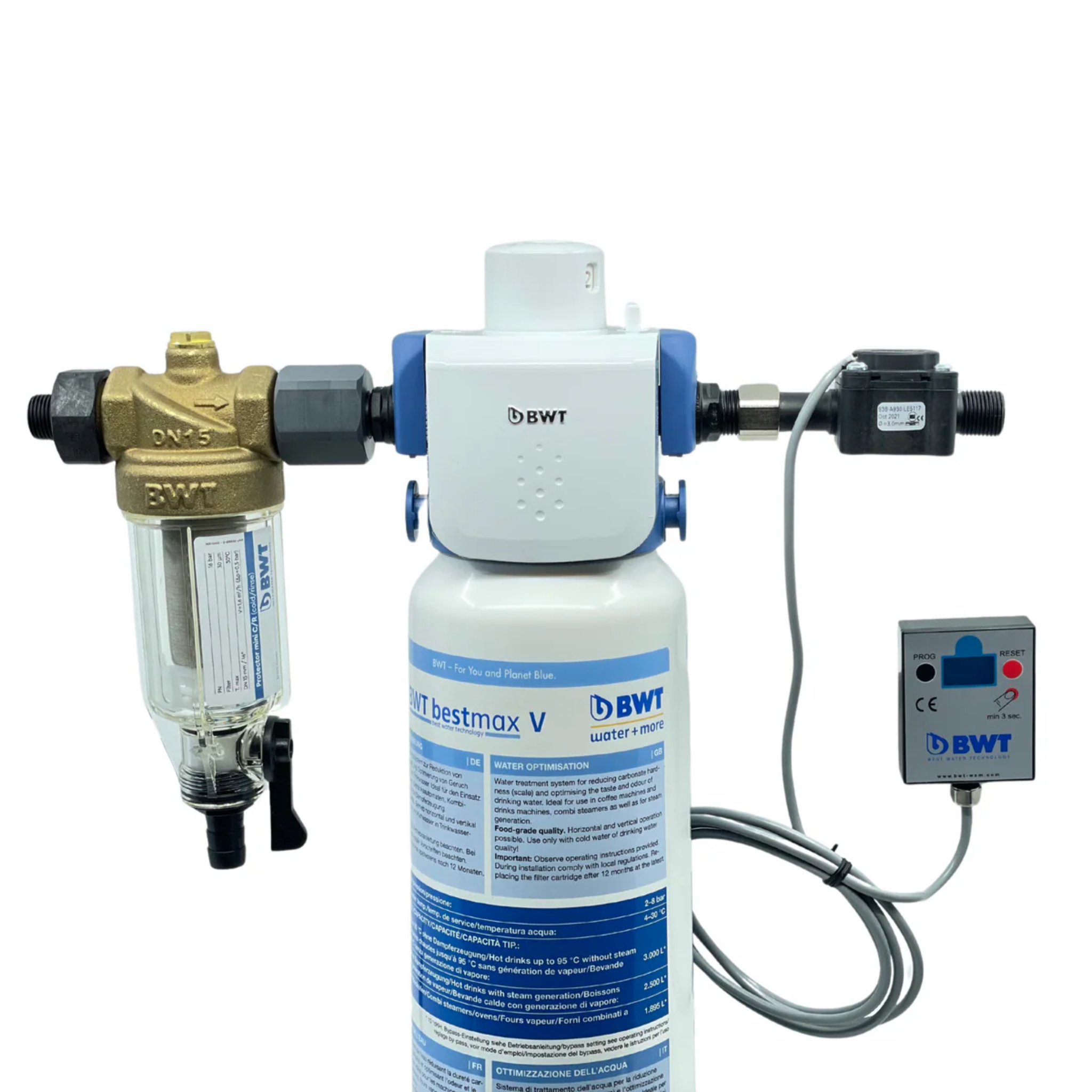

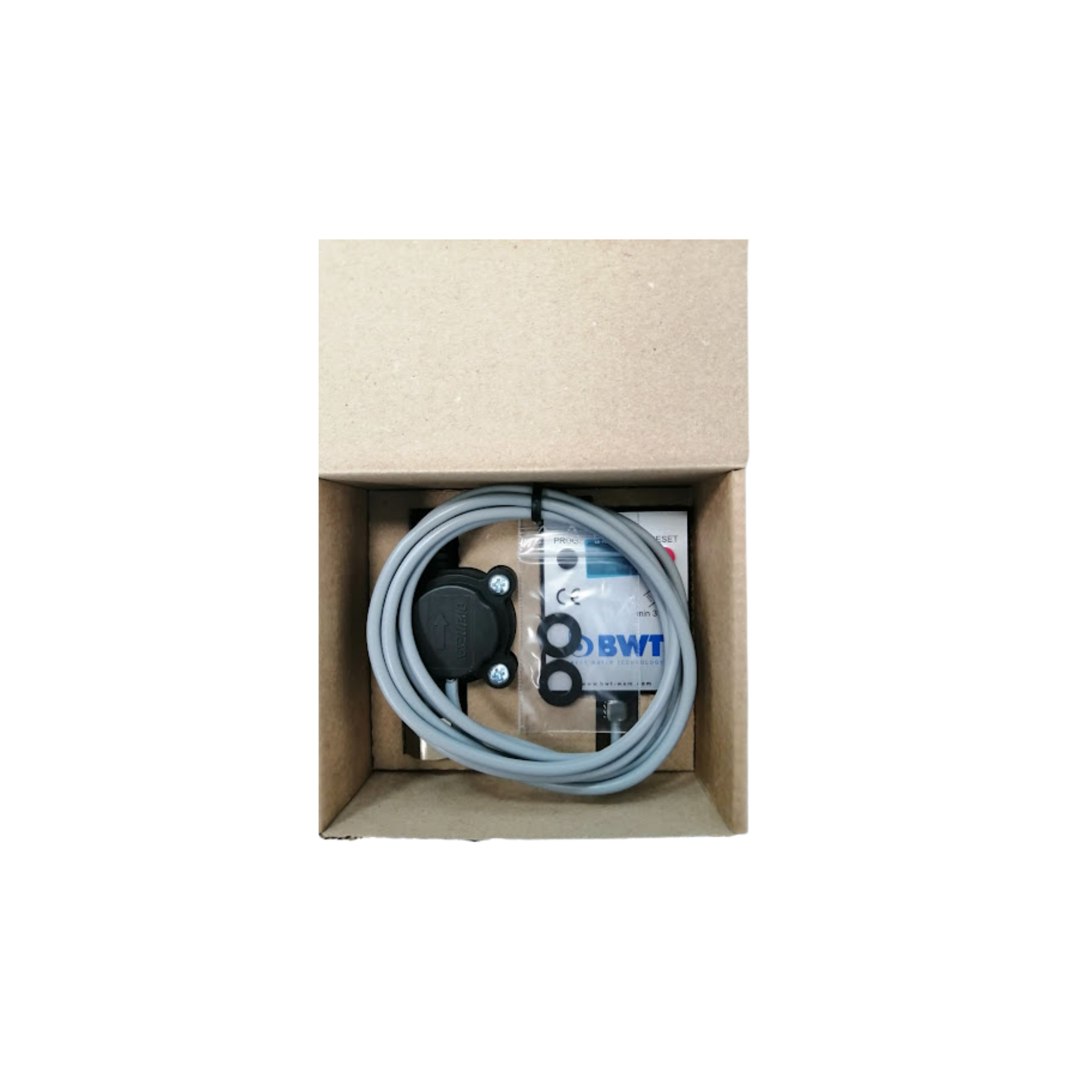

BWT Aquameter with LCD display FM 3/8“ thread connection incl. washers x M 3/8“ flow meter with external display
Scope of application
The BWT water+more Aquameter was developed to measure and monitor the residual capacity of water+more water filters. After entry of the respective filter capacity, the Aquameter calculates the relative residual capacity.This ensures timely replacement of the water+more water filter. The installed LCD indicator informs the user of the residual capacity of the water+more water filter.
Technical Data
Sensor Unit Technical Data:
| Connection thread (IN/OUT) | [inches] | 3/8" nut × 3/8" connection thread |
| Intake pressure (min/max) | [bar] | 2-8 bar |
| Flow capacity | [l/h] | 10-100 | 0.16-1.67 l/min |
| Pressure loss (up to 100 l/h flow rate) | [bar] | 0.2 |
| Flow rate deviations | [%] | +/- 5 |
| Water temperature (min/max) | [°C] | +4 to +40 |
| Ambient temperature (min/max) | [°C] | +4 to +30 |
| Dimensions (L×W×H) | [mm] | 77×43×46 |
| Installation position | Horizontal recommended |
External Display Technical Data:
| Splash water-proof | IP X4 | |
| Static memory | 5 most recent null positions | |
| Indicator | 5 digits | |
| Counter | [l/min] | Downwards from 99999 to -9999 |
| Installation position | Horizontal recommended | |
| Dimensions (L×W×H) | [mm] | 62×50×17 |
| Cable | 1.5 metres, PVC 2×0.25 mm² | |
| Aquameter order number | FS00Y03A00 |
