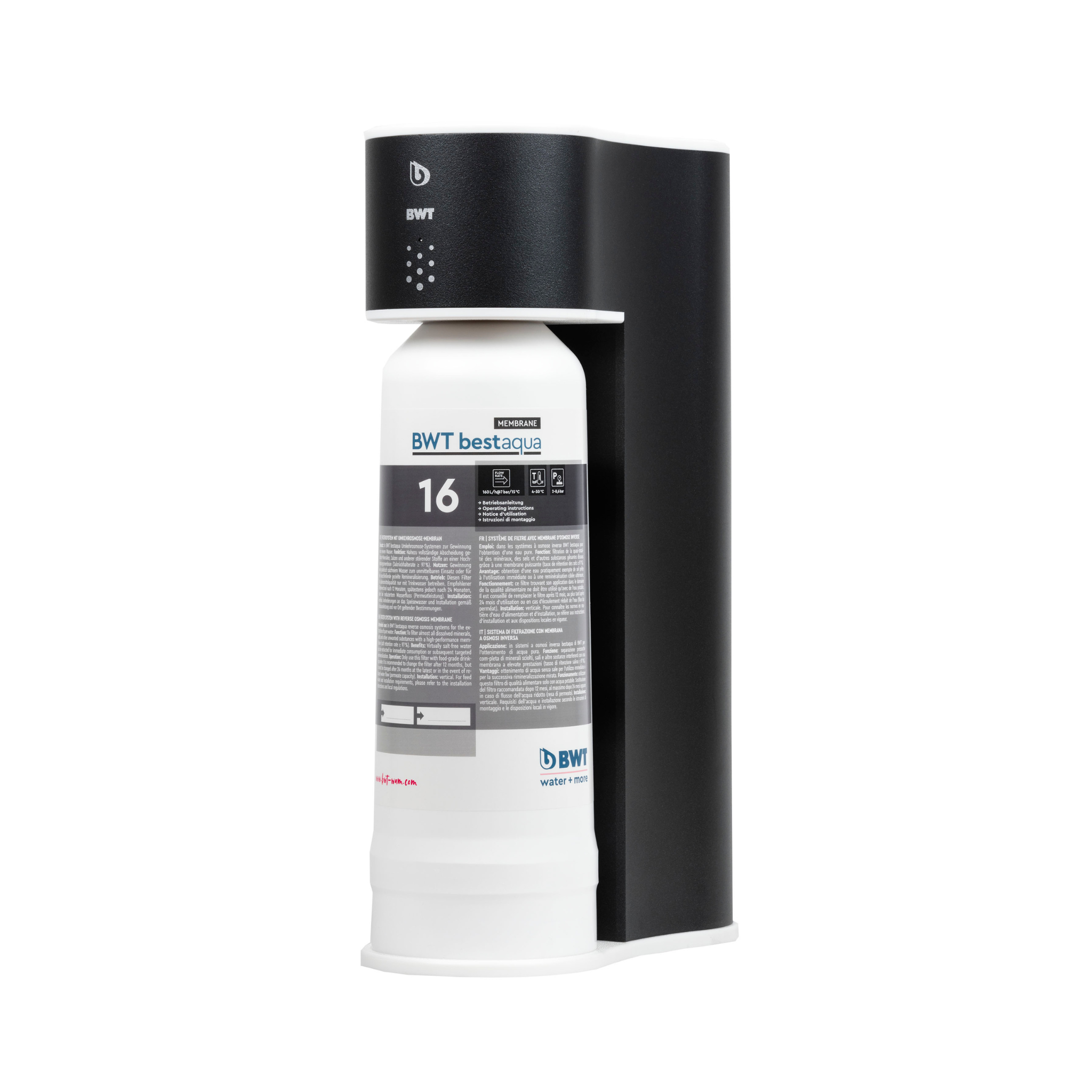

BWT bestaqua ROC 14 and ROC 16 | RS81M01A00 and 125255111 | Reverse osmosis system, complete


Size: BWT bestaqua 14 ROC | RS81M01A00 | 120 l/h
Price:
Sale price€2.346,19

Description

Ideal water for rinsing, ovens, combi steamers as well as for steam generation

  • Innovative reverse osmosis technology
  • Available in two product sizes with 120 l/h and 180 l/h permeate output
  • Highly efficient and powerful – tailor-​made for the catering industry
  • Ideal for use in rinsing technology and for ovens/combi steamers
  • Efficient production of demineralised water in large quantities
  • Sustainable due to very low wastewater generation
  • Resource-​saving plug-​and-play technology – unpack, connect and get started
  • Easy monitoring and control via Bluetooth app

Product details

BWT bestaqua ROC systems from BWT water+more were developed specificaly for use in the gastronomy and hotel industries. Its unique reverse osmosis technology sets new standards in water optimisation.

Equipped with the BWT bestaqua MEMBRANE module, it is highly efficient and produces purified water that is ideal for dishwashing technology and for steam generation for combi steamers or steam cookers, as well as for steam used in baking.

Technical benefits of the BWT bestaqua ROC system at a glance

  • High permeate capacity of 120 - 180 l/h
  • High salt retaining rate of > 97%
  • High permeate yield of up to 50%
  • Adjustable and monitored output quality avoids corrosion risk.
  • Very compact and service-​​friendly
  • Simple filter replacement without using tools

Technical details

 Specifications BWT bestaqua ROC 14  BWT bestaqua ROC 16
Permeate capacity 2 l/min = 120 l/h  3 l/min = 180 l/h
Salt retention rate > 97% > 97%
Permeate yield approx. 50 % approx. 50 %
Operating conditions
Feed water flow rate, min. 4.2 l/min = 250 l/h  6 l/min = 360 l/t
Concentrate flow rate approx. 2.0 l/min = 120 l/h  approx. 3.0 l/min = 180 l/h
Feed water pressure 0.15-0.4 MPa = 1.5-4 bar  0.15-0.4 MPa = 1.5-4 bar
Feed water temperature 5-30°C 5-30°C
Ambient temperature 5-40°C 5-40°C
Power
Power supply 230 V/50 Hz, ≥ 6 A, fused  220-​240 V/50-60 Hz
Protection rating IP 54 IP 54
Device fuse 1.25 A, time-​lag  1.25 A, standard
Power consumption 200 W, standby < 3 W  260 W, standby < 2 W
Device connection EC-​60320 C13
 IEC-​320
IEC power cable 1.8 m, CEE 7/4, IEC-​60320 C13  1.8 m, CEE 7/4, IEC-​60320 C13
Inlet and outlet lines
Feed water M ¾" M ¾"
Permeate JOHN GUEST 8 MM JOHN GUEST 8 MM
Concentrate JOHN GUEST 8 MM JOHN GUEST 8 MM
Dimensions and weight
Dimensions (W x D x H) 153 x 271 x 505 mm  158 x 337 x 531 mm
Weight 10.3 kg  15.95 kg
Product number
BWT bestaqua ROC RS81M01A00 125255111
BWT bestaqua MEMBRANE RS00Y61A00 125258720



Downloads

BWT bestaqua ROC 14, 16 EN

BWT 14 ROC customer drawing 2D

BWT 16 ROC customer drawing 2D

Reverse osmosis based kit

BWT bestaqua 14ROC Installation and operating instructions
