BWT BEWADES blue | UV disinfection systems | 0.5-3.5 m³/h

What is UV disinfection?

Disinfection generally means a reduction of around 99.999% of the pathogens present in the water. A dosage level of 400 J/m² is required to achieve this level of disinfection. The operational settings of the Bewades systems are calculated using numerical computer simulation, guaranteeing a UV dosage of at least 400 J/m². This dosage level has been biodosimetrically proved in the ‘N’ range systems and certified in accordance with ÖNORM M5873-1.

The number of UV disinfection systems installed is growing steadily and this ecologically-sound process is being used in an increasing range of applications owing to its extensive functionality and ease of use.

The BWT Bewades UV disinfection process will have no effect on the:

• Water hardness
• pH value
• Taste
• Smell
• Colour of the treated water

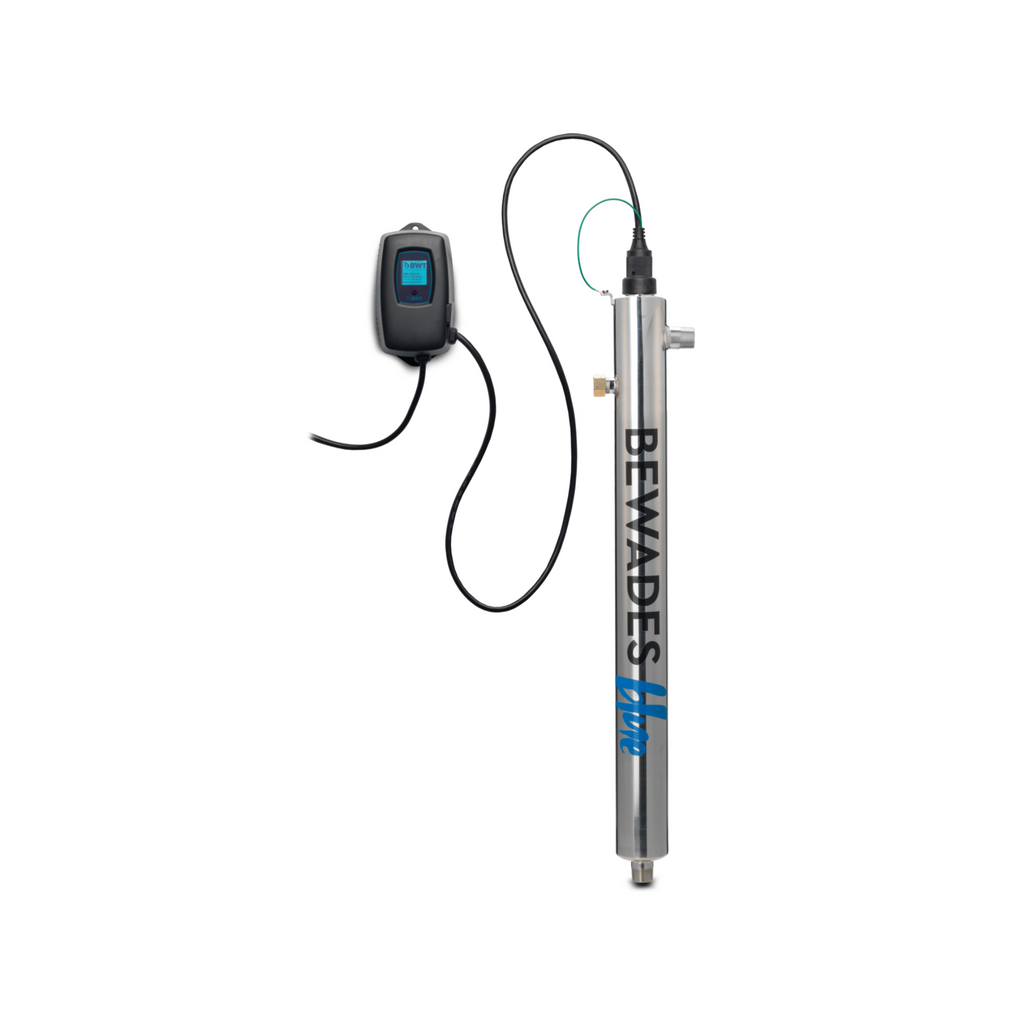

Bewades blue

Highest quality, best drinking water, no compromises!

The ultimate UV disinfection

If you are unsure of the microbiological quality of your water or if you are looking for additional security from municipal water source, BWT has the solution in the new residential series of BWT UV systems: Bewades blue

Advantages at a glance

• Intuitive handling via color display with clear text messages – One look info
• Very robust online sensor (optional) monitoring permanently the systems performance and alarming if the water is unsafe to drink
• High grade stainless steel reactor, very hygienic and corrosion resistant
• Reliable, robust UV lamp for durability and long life (9,000 hours)
• Electronic controller in a splash proof case, virtually eliminates common water damage issues
• Complete set - ready to install, inclusive wall mounting kit

Ultraviolet disinfection for apartment or landed houses

Bewades® Blue is designed for the disinfection of deep well water and city water for apartments and landed houses. Protect your family members against disease-causing pathogens with a compact ultraviolet disinfection system. The UV is monitored by a UVC sensor and kills 99% of disease-causing microorganisms.

MADE IN GERMANY

This range is suited for

• People with sensitive skin
• Families with young babies and elderly
• People who do not wish to use chemical for disinfection
• People who would like their entire house's apartment to be bacteria and virus-free

Product Features

• Remove 99% of bacteria and viruses in your water
• Effective Chemical-free disinfection of water for entire home
• Low maintenance and only need to replace UV lamp once every 365 days - Monitor your water with BWT LCD Screen on Controller on UV unit

The Bewades® Blue systems are available in 4 different models and sizes

• BWT Bewades® Blue 0.5: max. flow rate at 95% UVT - 0.5 m³/h*
• BWT Bewades® Blue 1.0: max. flow rate at 95% UVT - 1 m³/h*
• BWT Bewades® Blue 2.0: max. flow rate at 95% UVT - 2 m³/h*
• BWT Bewades® Blue 2.5: max. flow rate at 95% UVT - 2.5 m³/h*
• BWT Bewades® Blue 3.0: max. flow rate at 95% UVT - 3.5 m³/h*

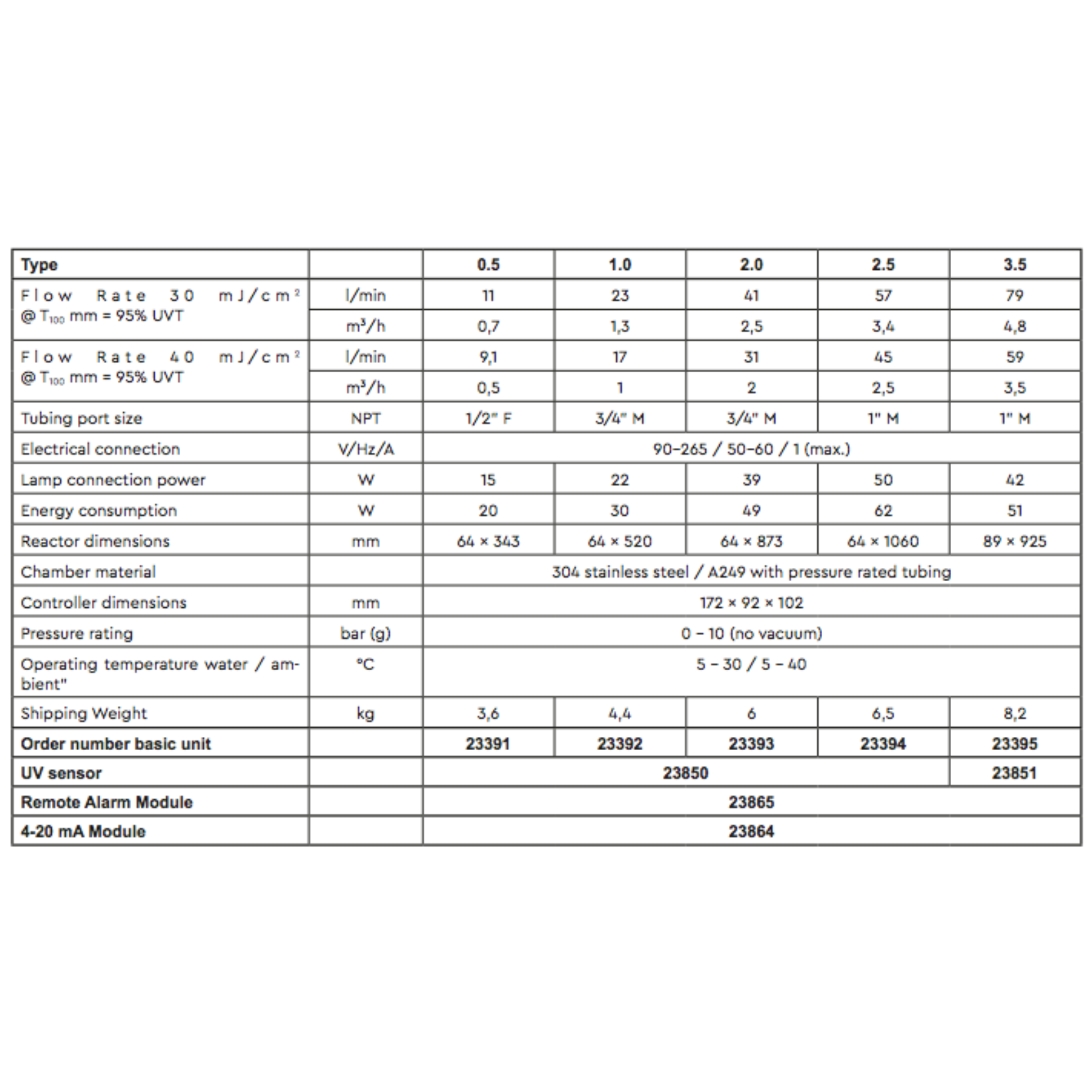

Type		0.5	1.0	2.0	2.5	3.5
Flow  Rate  30 mJ / cm2	l/min	11	23	41	57	79
@ T100 mm = 95% UVT	m³/h	0,7	1,3	2,5	3,4	4,8
Flow Rate 40 mJ / cm2	l/min	9,1	17	31	45	59
@ T100 mm = 95% UVT	m³/h	0,5	1	2	2,5	3,5
Tubing port size	NPT	1/2" F	3/4" M	3/4" M	1" M	1" M
Electrical connection	V/Hz/A		90-265	/ 50- 60/	1 (max.)
Lamp connection power	W	15	22	49	62	51
Energy consumption	W	20	30	60	60	60
Reactor dimensions	mm	64 x 343	64 x 520	64 x 873	64 x 1060	89 x 925
Chamber material		304	stainless	steel/ A249	with pressure	rated tubing
Controller dimensions	mm	172 x 92 x 102	172 x 92 x 102	172 x 92 x 102	172 x 92 x 102	172 x 92 x 102
Pressure rating	bar (g)		0 - 10	(no vacuum)
Operating temperature water / ambient"	°C		5 - 30 /	5 - 40
Shipping Weight	kg	3,6	4,4	6	6,5	8,2
Order number basic unit		23391	23392	23393	23394	23395
UV sensor		23850	23850	23850	23850	23851
Remote Alarm Module				23865
4-20 mA Module				23864
