Description
CONNECTION MODULE DR / HWS

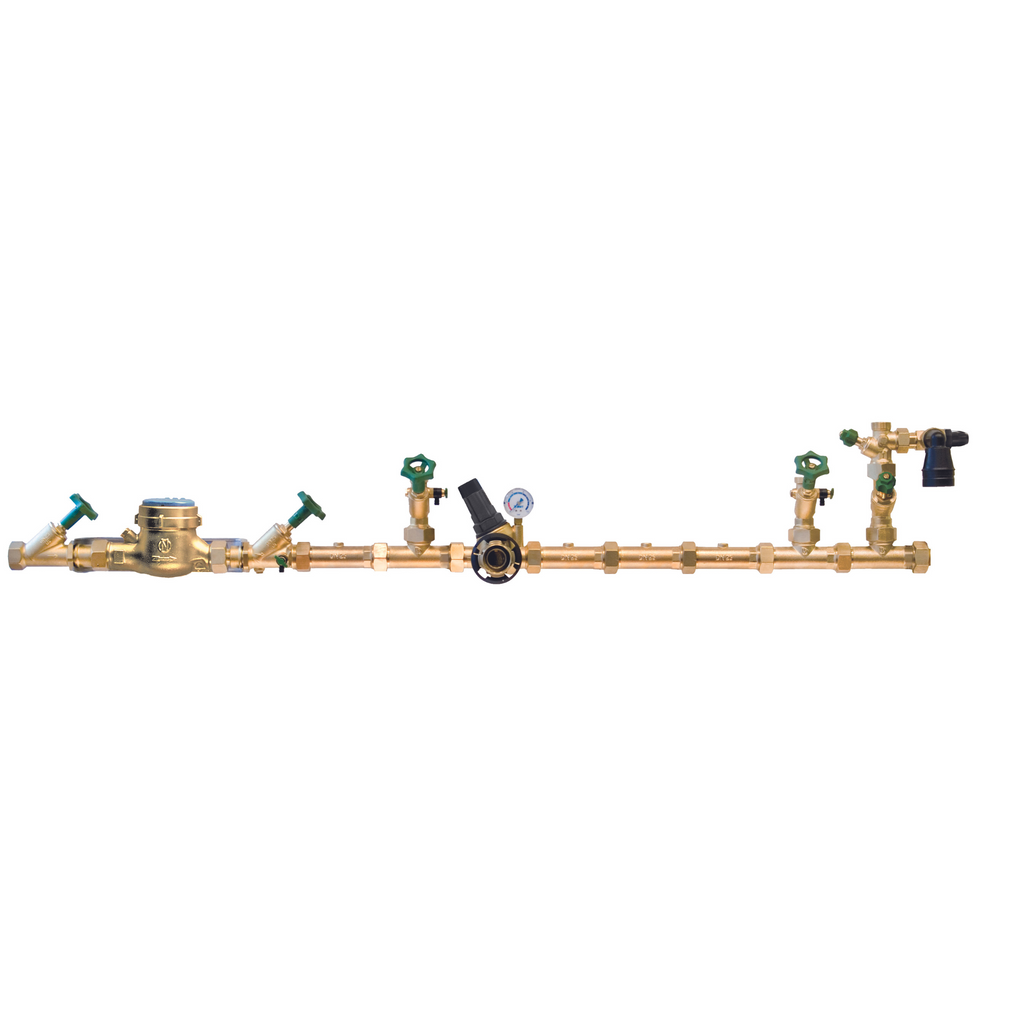

If you want a filter with pressure reducer, select the connection module Dr/HWS sound-proofed with integrated pressure reducer and pressure gauge. For Infinity size 1, E1 HydroMODUL size 1. The connection module DR can be installed vertically or horizontally. High-quality brass head connection equipment with spring, seal, cap nut, locking ring and connection unions.
TYPE | DN 20 | DN 25 | DN 32 | |
Nominal pressure | bar | 16 | 16 | 16 |
Installation length inc. screw connection | mm | 210 | 210 | 238 |
Installation length without screw connection | mm | 122 | 122 | 142 |
Order no. | 20860 | 20862 |
20861 |
