Description
Filter for perfect drinking water purity with a 10-year E1 guarantee
- Single-Lever Filter without pressure reducer
- Protects water-carrying devices from particles
- Easy and quick change of filter element under 30 seconds
- No touching of parts that come into contact with drinking water
- 10-year warranty (if registered)
Description
There are many filters on the market - all variants are state of the art to keep particles such as rust particles and sand grains away from the domestic installation. The installation of a filter in every domestic installation is even mandatory according to the relevant standards. But installation alone is only half the battle, because all filters unfortunately have one thing in common: the filter elements are not regularly backwashed or changed because it is often too complicated. And that is a big problem for the hygiene of drinking water pipes.

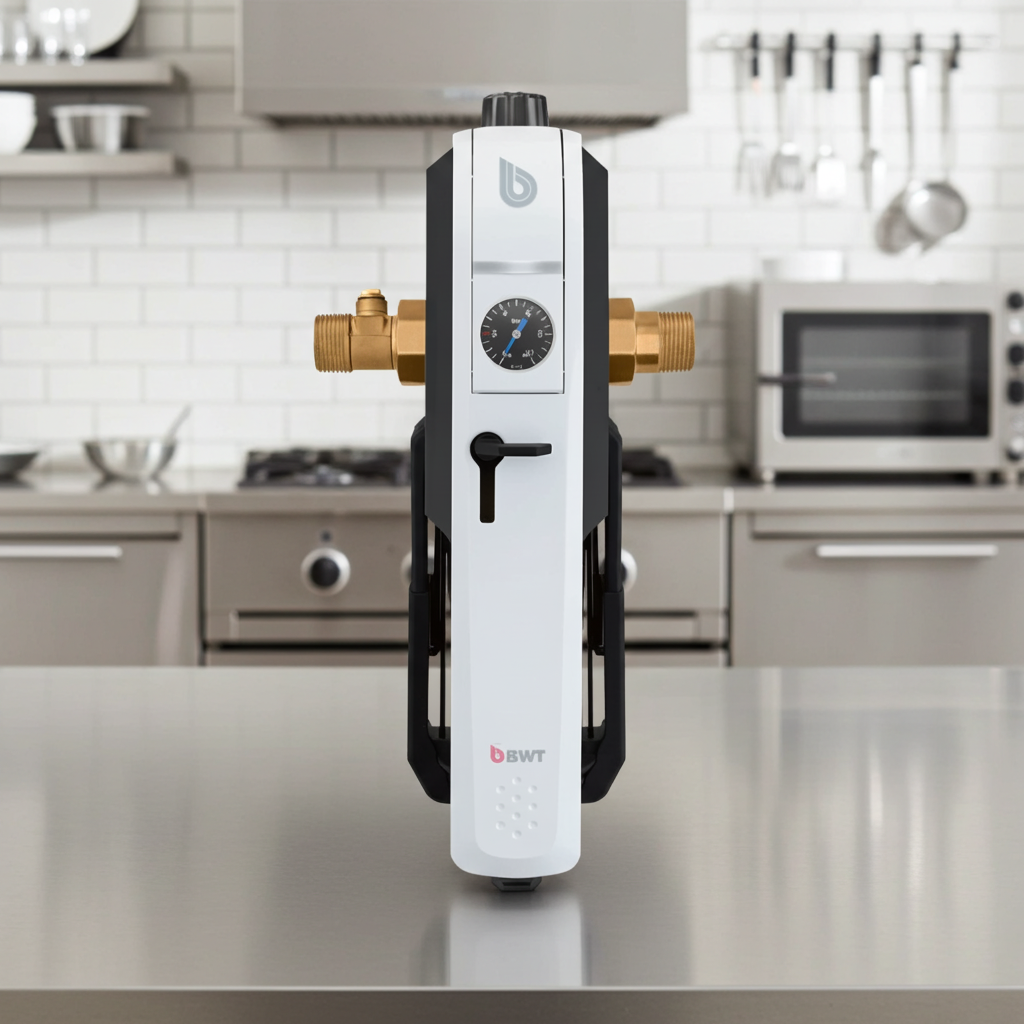

BWT has developed an ingenious solution for this: The BWT E1 single-lever filter - a protective filter with innovative comfort and hygiene benefits. Replacing the hygiene vault (this is the filter cup with the filter element) is so easy that the consumer can do it himself in just a few seconds.
- Unlock the safety catch and thus simultaneously shut off the water
- Pull up the lever and thus automatically eject the hygiene safe
- Insert the new hygiene safe. Close the lever. Lock. Done!
And all this in less than 30 seconds.
In this way, BWT has defused the hygiene risks of conventional filters, water-affected parts are no longer touched! In addition, the E1 also avoids splashing water when replacing the hygiene safe and the water pipe does not run empty.
The BWT E1 filter is available as E1 HWS (domestic water station) incl. Pressure reducer or as E1 EHF (single lever filter) for applications without pressure reducer.
Secure 10 years warranty!
With the E1 filter, changing the filter unit will never be forgotten again: An e- mail notification indicates that the hygiene safe needs to be changed. When registered, this also automatically gives you the 10-year factory warranty on the E1 single-lever filter.
Highlights:
- Easily change the filter unit - no tools, no dirt and no water splashing
- automatic shut-off of the water with just one handle
- no touching of water-impacted parts
- produced following HACCP food standards. Filter element change reminder: conveniently via email reminder service
- DVGW-tested
Technical details
| BWT E1 | EHF |
EHF | HWS | HWS | HWS | |
| Item no. | 125596627 | 125596628 | 125596629 | 125596630 | 125596631 | |
| Nominal width | DN | 20 | 25 | 20 | 25 | 25 |
| Connection thread | 3/4" and 1" | 5/4" | 3/4" | 1" | 5/4" | |
| Swivel nut thread | G 1 1⁄4“ | G 1 1⁄2“ | G 1 1⁄4“ | G 1 1⁄4“ | G 1 1⁄2“ | |
| Admission width | μm | 90-110 | 90-110 | 90-110 | 90-110 | 90-110 |
| Flow rate at Δp = 0,2 bar* | m3/h | 1,6 | 1,8 | - | - | - |
| Flow rate at Δp = 0,5 bar* | m3/h | 2,6 | 3,6 | - | - | - |
| HWS: Flow rate** | m3/h | - | - | 2,3 | 3,6 | 3,6 |
| Pressure after pressure reducing valve | bar | - | - | 2-6 | 2-6 | 2-6 |
| Nominal pressure (PN) | bar | 16 | 16 | 16 | 16 | 16 |
| Operating pressure, min./max. | bar | 2/16 | 2/16 | 2/16 | 2/16 | 2/16 |
| Water temperature, min./max. | °C | 5/30 | 5/30 | 5/30 | 5/30 | 5/30 |
| Ambient temperature, min./max. |
°C | 5/40 | 5/40 | 5/40 | 5/40 | 5/40 |
| Overall length without fitting | mm | 100 | 120 | 100 | 100 | 120 |
| Overall length with fitting | mm | 185 | 218 | 197 | 199 | 218 |
| Total height incl. hygienic vault | mm | 551 | 569 | 569 | 569 | 569 |
| Total height | mm | 381 | 399 | 399 | 399 | 399 |
| Minimum distance pipe centre to floor |
mm | 480 | 480 | 480 | 480 | 480 |
| Total height open | mm |
600 |
600 | 600 | 600 | 600 |
| Length of open lever | mm |
290 |
290 | 290 | 290 | 290 |
| Installation mass pipe centre to wall | mm |
80 – 120 |
80 – 120 | 80 – 120 | 80 – 120 | 80 – 120 |
| Approx. operating weight | kg | 3,5 | 4,0 | 4,0 | 4,0 | 4,0 |
* according to DIN EN 13443-1
** according to DIN EN 1567
| Flow rate with filter element (m3/h) | Pressure loss 0.2 bar | Pressure loss 0.3 bar | Pressure loss 0.5 bar | Pressure loss 0.8 bar |
| EHF DN20 (25) | 1.34 | 1.73 | 2.38 | 3.09 |
| EHF DN32 | 2.28 | 2.8 | 3.61 | 4.45 |
| HWS DN20 | 0.85 |
1.12 |
1.58 | 2.1 |
| HWS DN25 | 0.95 |
1.18 |
1.67 | 2.3 |
| HWS DN32 | 1.9 | 2.28 | 2.9 | 3.9 |
