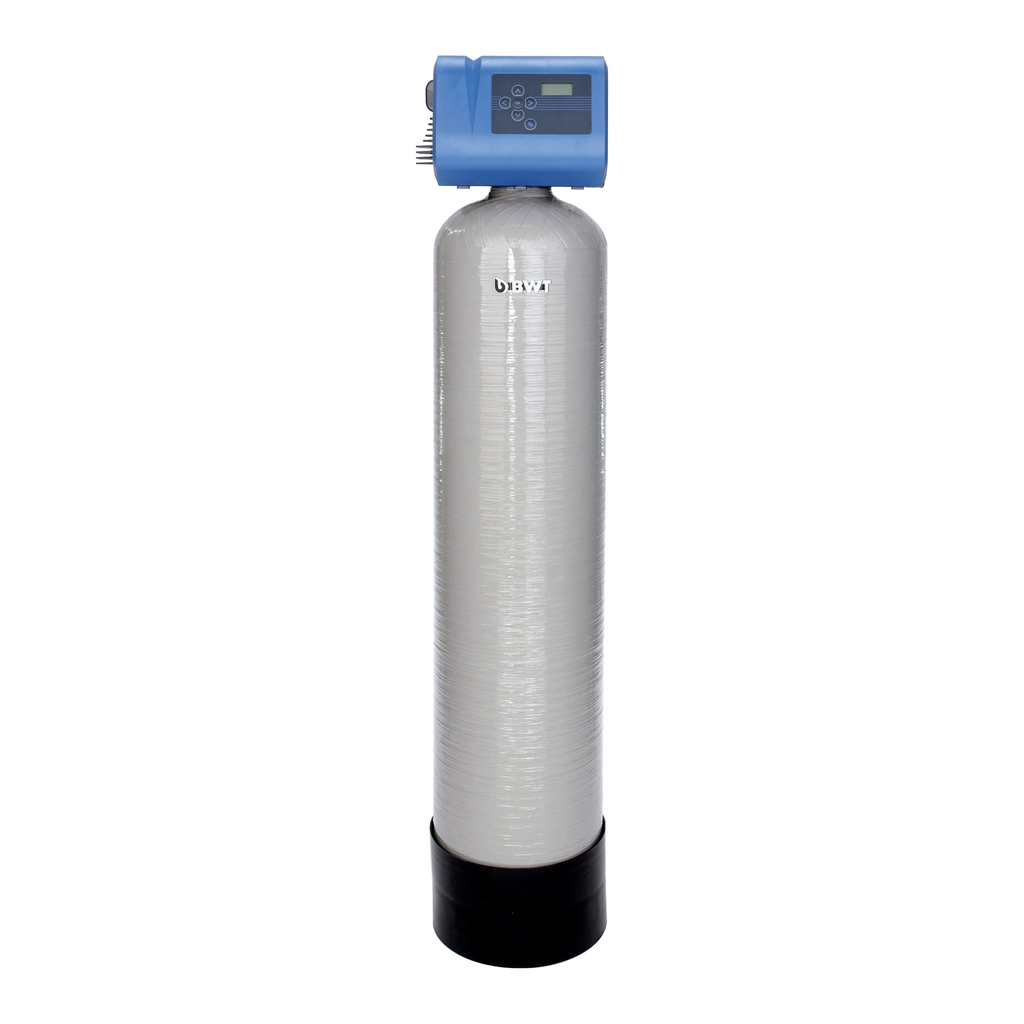

Description

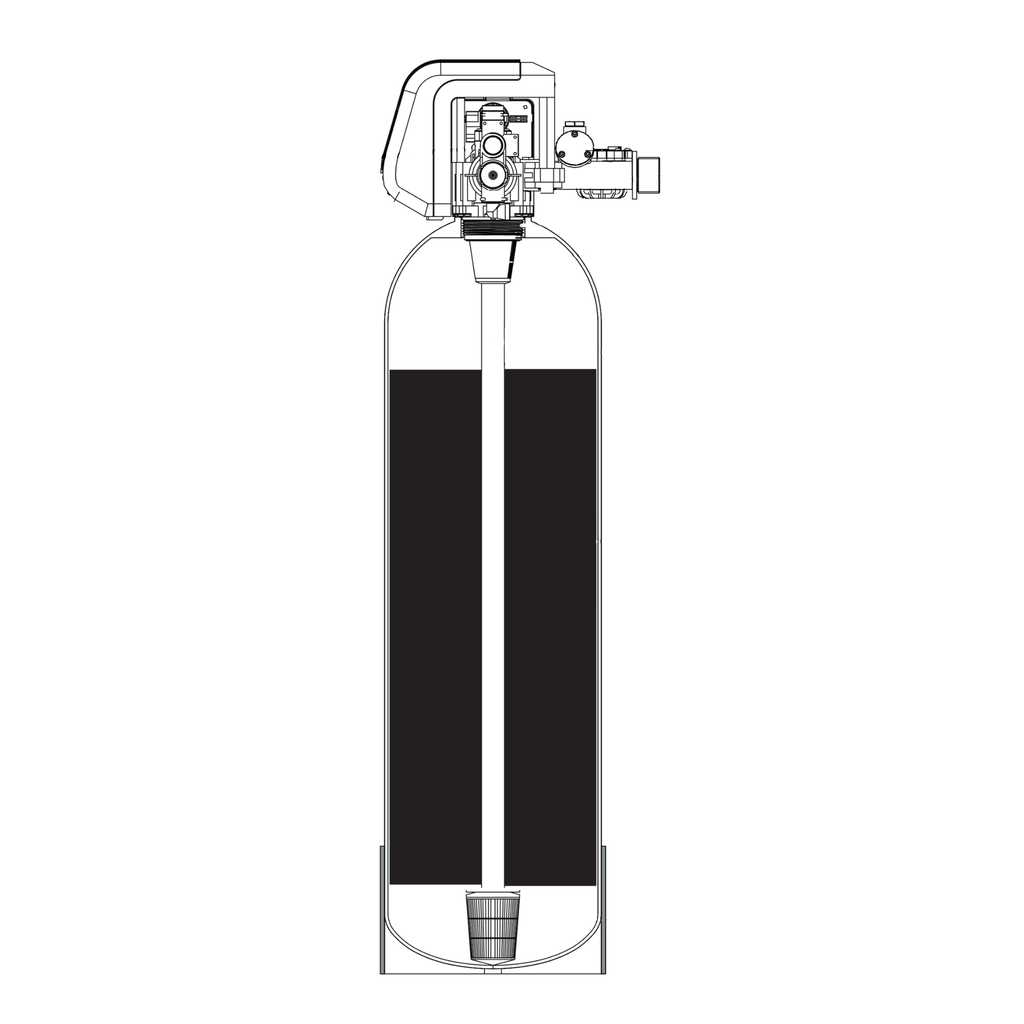

The BWT Multi C is an activated carbon filter which reduces extensively the concentration of chlorine (<2 ppm) and other colour- and smell causing contaminants in drinking water. During operation, water flows from top to bottom through the filter bed and impurities are filtered out or absorbed. After consumption of a predefined water volume, the filter is automatically backwashed at the set time. Water flows from bottom to top through the filter bed. This loosens the filter material and the impurities are flushed out. Operation during backwashing is possible via bypass valve with unfiltrated water.
- Fully automatic operation
- Little water wastage for backwash
- Water supply even during backwash
- Easy maintenance thanks to refill packages
Technical data
| MULTI C | Type | 2000 |
|
Connection width |
DN | 32 |
|
Max. flow rate |
m3 /h (gpm) |
2.0 (8.8) |
|
Nominal flow rate |
m3 /h (gpm) |
1.0 (4.4) |
|
Operating pressure min./max |
bar (psi) | 2-8 (29-116) |
|
Capacity |
l | 1800 |
|
Height |
mm | 1080 |
|
Diameter of tank |
mm | 254 |
| Order number | 13921 |
Connection equipment
Multiblock X, Order no. 30999
Using the Multiblock X, the water flow remains uninterrupted. The water supply is maintained via an integrated by-pass, so that maintenance work can be carried out without any problems.
Connection set DN 32/32, Order no. 11877
For installation of BWT Multi with nominal connection DN 32 to the Multiblock module consisting of: 2 flexible armoured hoses with formed angles and DN 32 cap nuts on both ends, TÜV tested, with 4 seals, 0.6 m.
