Description

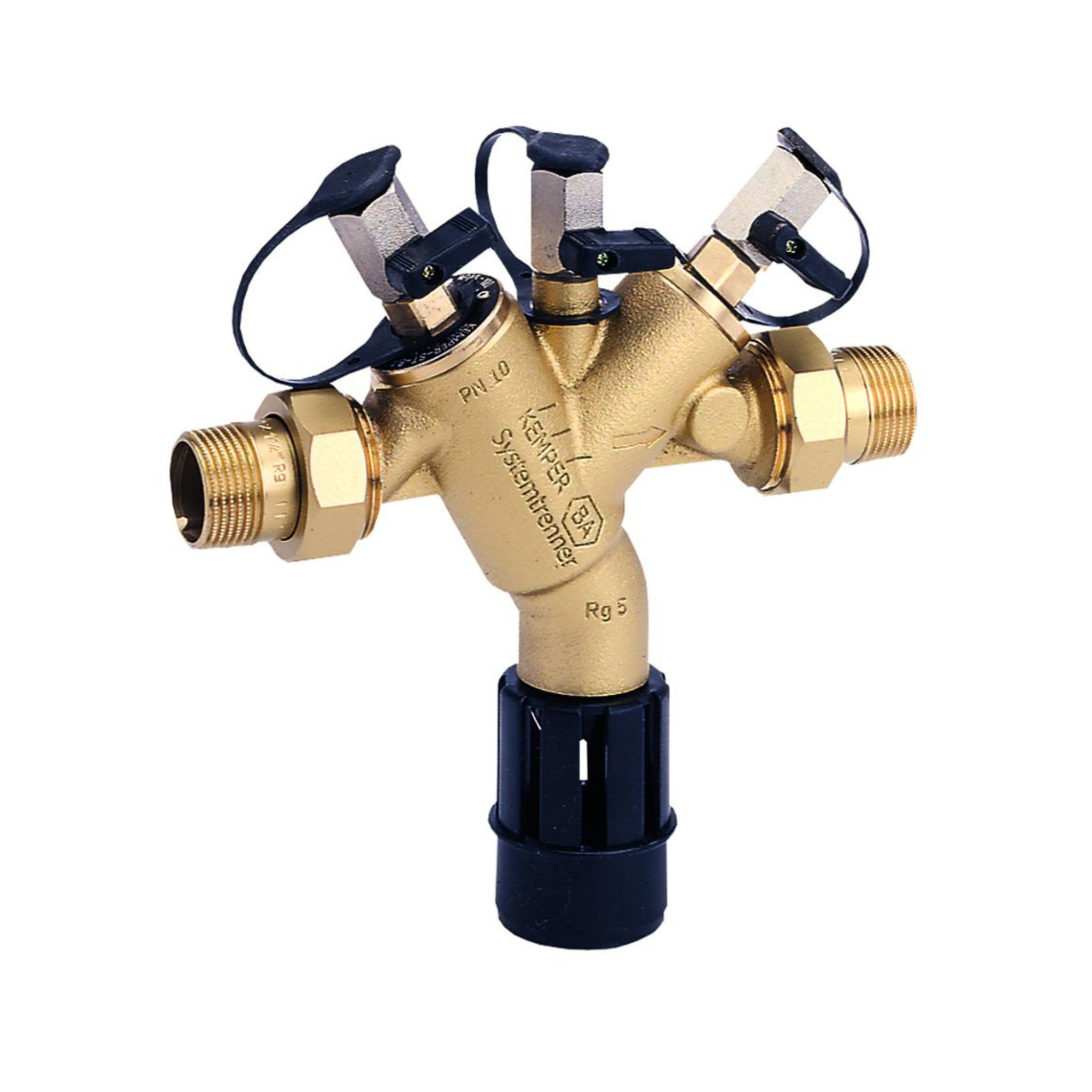

Multimat SYSTEM SEPARATOR
- independent from initial pressure (non-return valve included)
- no external energy necessary » no air intake to the pipe system
- approval equivalent to pipe disconnecting system. Installation type 2 and dangerous goods classification 1 - 4
- simple construction
- cheaper than pipe disconnecting system
- housing made of brass (DN 20 - 65) or grey cast iron (DN 80)
- epoxy coated (DN 80)
- spring and valve seat made of stainless steel
- lockable connection for pressure gauges
- non-return valve at water inlet
- release valve in middle chamber
- non-return valve at water outlet
Nominal Width | DN | 20 | 25 | 32 | 40 | 50 |
Connection threads G | 1“ | 1 1/4“ | 1 1/2“ | 1 3/4“ | 2 3/8“ | |
External thread connection R | 3/4“ | 1“ | 1 1/4“ | 1 1/2“ | 2“ | |
Nominal flow | m3 | 3.5 | 3.5 | 14 | 16 | 16 |
Pressure drop | bar | 1.0 at | nominal | flow | ||
Nominal pressure | PN | 10 | 10 | 10 | 10 | 10 |
Max. temperature | °C | 60 | 60 | 60 | 60 | 60 |

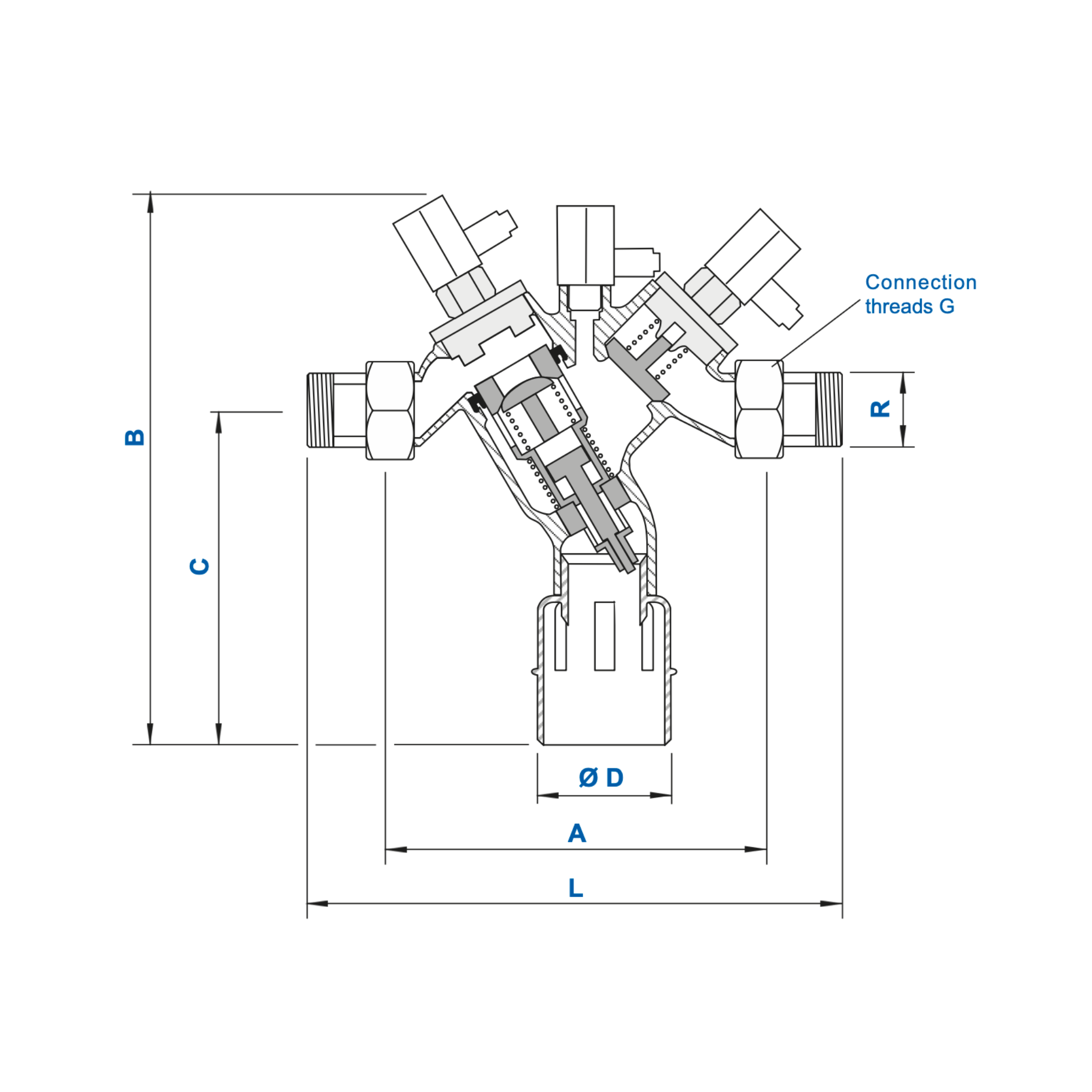

Installation length A | mm | 140 | 146 | 228 | 226 | 230 |
Installation length L | mm | 206 | 280 | 370 | 370 | 394 |
Installation height B | mm | 220 | 220 | 310 | 310 | 310 |
Installation height C | mm | 138 | 138 | 178 | 178 | 178 |
Waste water connection Ø D | mm | 50 | 50 | 70 | 70 | 70 |
Weight | kg | 1.55 | 1.65 | 5.1 | 5.2 | 5.3 |
Order no. | 11932 | 11933 | 11934 | 11935 | 11936 |
