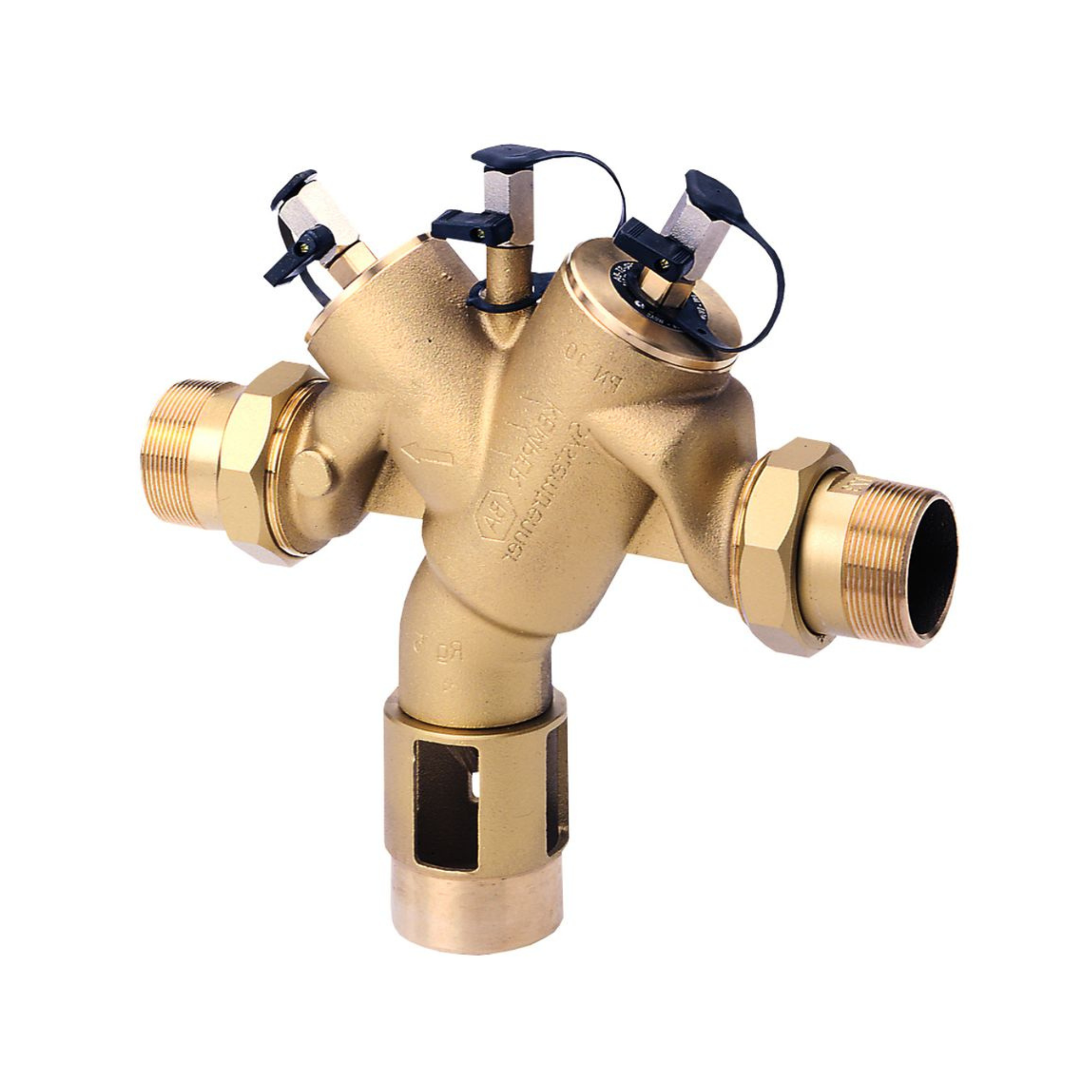

Multimat SYSTEM SEPARATOR
- independent from initial pressure (non-return valve included)
- no external energy necessary » no air intake to the pipe system
- approval equivalent to pipe disconnecting system. Installation type 2 and dangerous goods classification 1 - 4
- simple construction
- cheaper than pipe disconnecting system
- housing made of brass (DN 20 - 65) or grey cast iron (DN 80)
- epoxy coated (DN 80)
- spring and valve seat made of stainless steel
- lockable connection for pressure gauges
- non-return valve at water inlet
- release valve in middle chamber
- non-return valve at water outlet
| Nominal Width |
DN |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
| Connection threads G |
|
1“ |
1 1/4“ |
1 1/2“ |
1 3/4“ |
2 3/8“ |
- |
- |
| External thread connection R |
|
3/4“ |
1“ |
1 1/4“ |
1 1/2“ |
2“ |
- |
- |
| Nominal flow |
m3 |
3.5 |
3.5 |
14 |
16 |
16 |
35 |
56 |
| Pressure drop |
bar |
|
1.0 at |
nominal |
flow |
|
|
|
| Nominal pressure |
PN |
10 |
10 |
10 |
10 |
10 |
10 |
10 |
| Max. temperature |
°C |
60 |
60 |
60 |
60 |
60 |
60 |
60 |
| Installation length A |
mm |
140 |
146 |
228 |
226 |
230 |
460 |
460 |
| Installation length L |
mm |
206 |
280 |
370 |
370 |
394 |
- |
- |
| Installation height B |
mm |
220 |
220 |
310 |
310 |
310 |
321 |
321 |
| Installation height C |
mm |
138 |
138 |
178 |
178 |
178 |
151 |
151 |
| Waste water connection Ø D |
mm |
50 |
50 |
70 |
70 |
70 |
90-110 |
90-110 |
| Weight |
kg |
1.55 |
1.65 |
5.1 |
5.2 |
5.3 |
37.1 |
37.2 |
| Order no. |
|
11932 |
11933 |
11934 |
11935 |
11936 |
11937 |
11938 |
