Description
MULTIPUR backwash filters are designed for high flow rates up to 105 m³/h and are a perfect solution for industrial and building applications. Also here BWT offers you its patented two-phase backwash technology, an unique suction ring backwash system, 12 times faster than other systems
Which one to choose?
| MULTIPUR M | MULTIPUR AP | |
| Safe and reliable protection against sand and rust | x | x |
| No electricity required | x | |
| Unattended operation | x | |
| Automatic backwash if the mesh is dirty | x | |
| Automatic time-based backwash | x | |
| Lowest service costs in comparison | x |

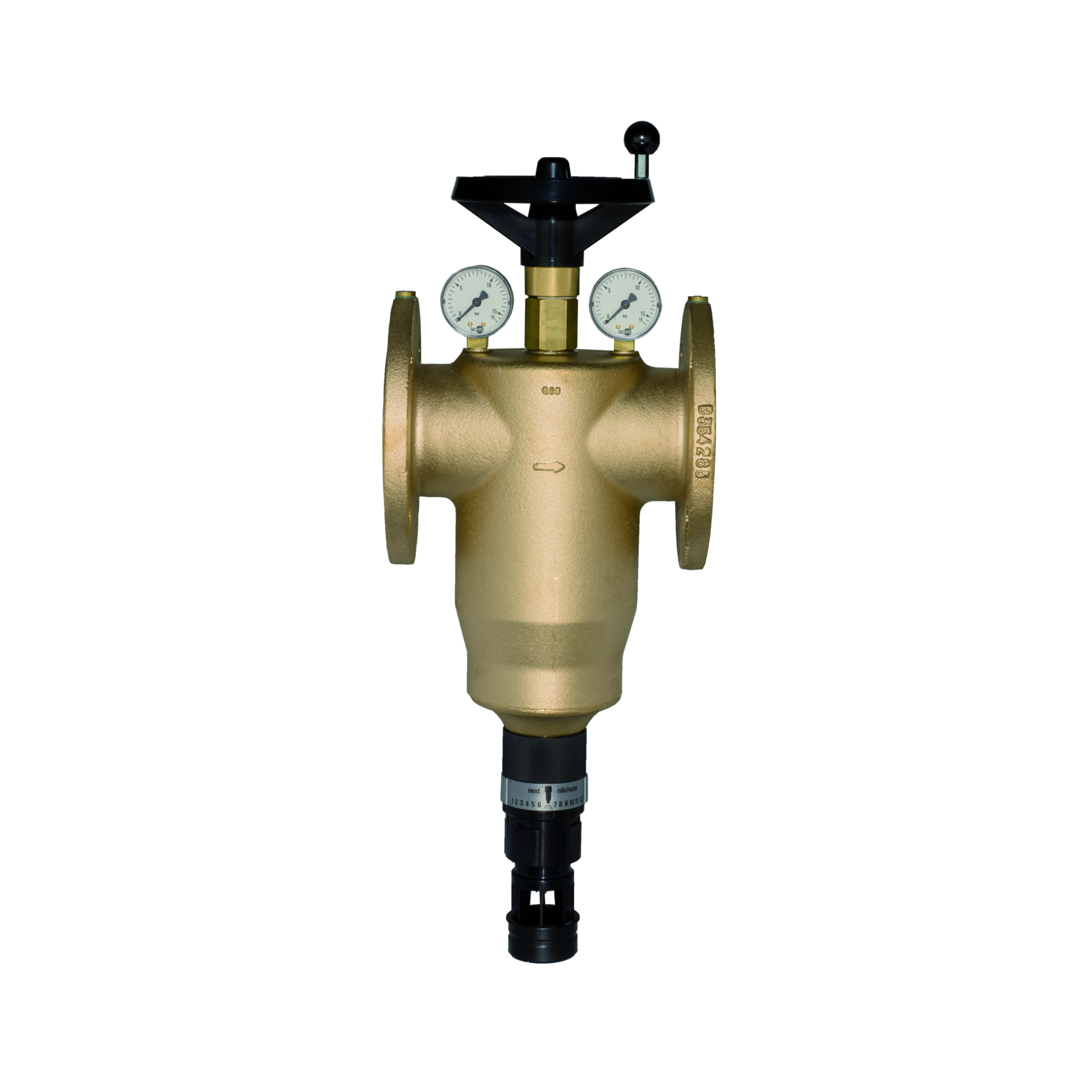

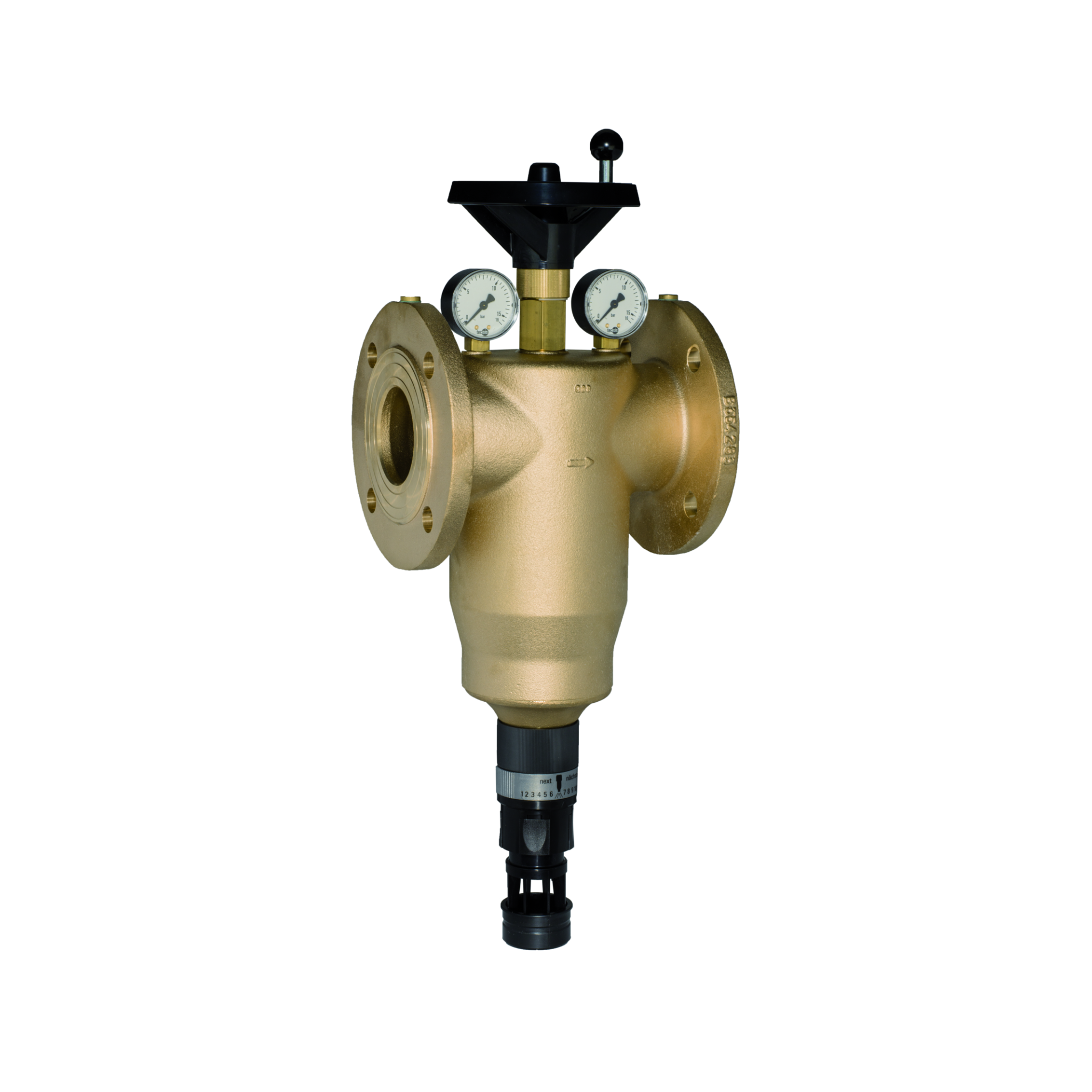

MULTIPUR M
- Efficient cleaning process due to suction ring system (12 times faster than others)
- 90 % of the filter surface is used for filtering during backwashing
- Economic solution - low backwash water consumption
- Integrated rinsing water connection according to DIN 1988
Technical Specifications
|
Multipur M |
Typ | 65 | 80 | 100 | 125 | 150 |
|
Nominal connection width |
DN | 65 | 80 | 100 | 125 | 150 |
|
Connection type |
|
Flanschanschluss |
DIN 2501, |
Teil 1 |
|
|
|
Flange Ø |
mm |
145 |
160 |
180 |
210 |
240 |
|
Flangebore Ø |
mm |
18 |
18 |
18 |
18 |
22 |
|
Nominal flow |
m3 /h |
58 |
58 |
82 |
91 |
105 |
|
Flow capacity at ∆p = 0,2 bar |
m3 /h |
35 |
35 |
56 |
57 |
61 |
|
Flow capacity at ∆p = 0,5 bar |
m3 /h |
58 |
58 |
82 |
91 |
105 |
|
Micron rating |
µm |
100 or 200 |
100 or 200 |
100 |
100 |
100 |
|
Nominal pressure (PN) |
bar |
10 |
10 |
10 |
10 |
10 |
|
Operating pressure po min./max |
bar |
2,5 – 10 |
2,5 – 10 |
2,5 – 10 |
2,5 – 10 |
2,5 – 10 |
|
Water temperature , min./max |
°C |
5 – 30 |
5 – 30 |
5 – 30 |
5 – 30 |
5 – 30 |
|
Ambient temperature, min./max. |
°C |
5 – 40 |
5 – 40 |
5 – 40 |
5 – 40 |
5 – 40 |
|
Rinsing water volume at 4 bar |
l |
16 (10 s) |
16 (10 s) |
24 (10 s) |
30 (10 s) |
30 (10 s) |
|
Water flow at backwashing |
l/s |
1,5 |
1,5 |
2,5 |
3,0 |
3,0 |
|
Drainage connection, min. |
DN |
50 |
50 |
50 |
75 |
75 |
|
Operating weight, approx. |
kg |
15 |
18 |
24 |
33 |
38 |
| Shipping weight, approx | kg | 13 | 16 | 21 | 28 | 32 |
|
Order no. (100 µm) |
10185 |
10186 |
10562 |
10563 |
10564 |
|
|
Order no. (200 µm) |
10187 |
10188 |
- |
- | - |

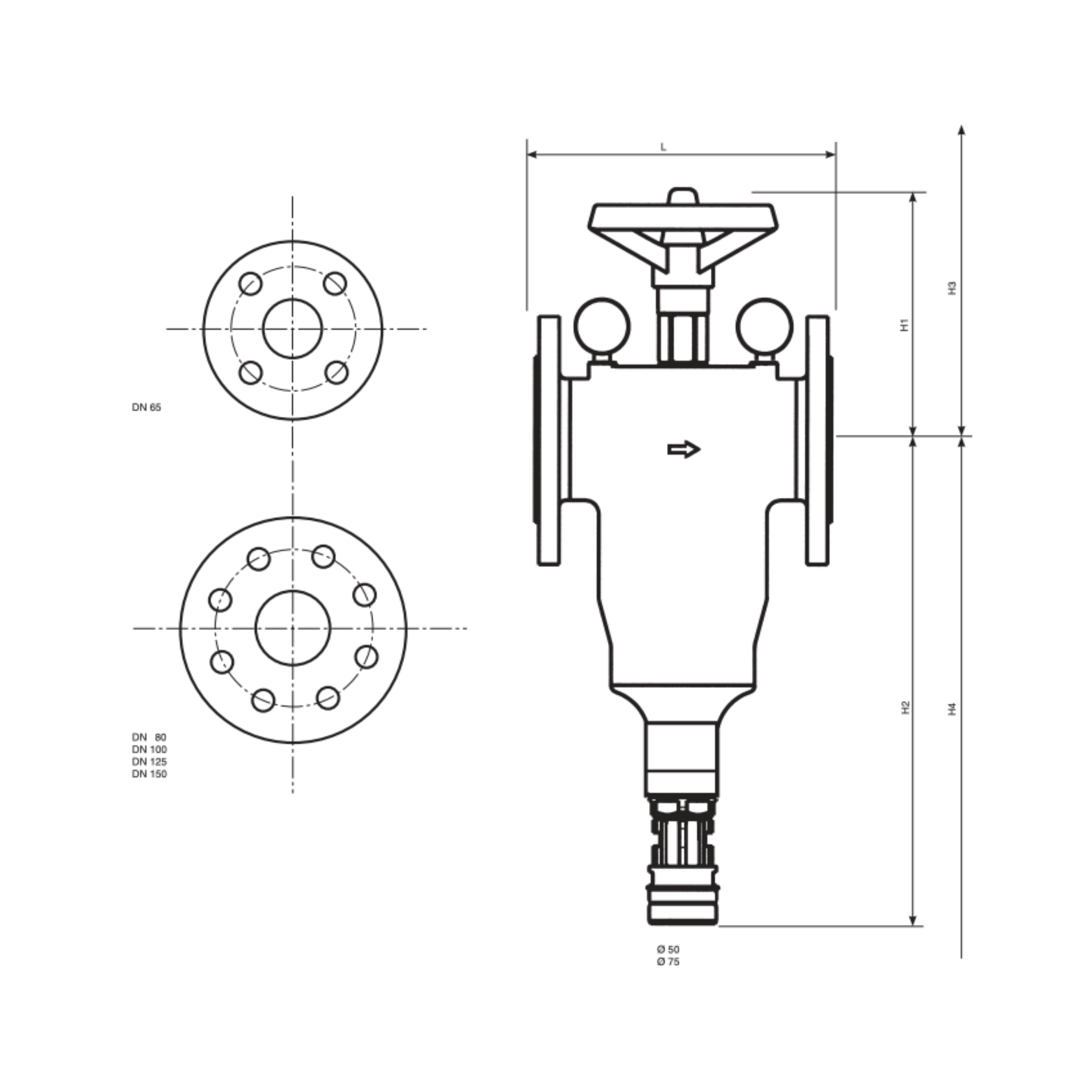

Dimensions
| Multipur M | Typ | 65 | 80 | 100 | 125 | 150 |
| Overall height | mm | 600 | 600 | 660 | 740 | 740 |
| Height, top edge to centre of tube (H1) | mm | 230 | 230 | 230 | 230 | 230 |
| Height, lower edge to centre of tube (H2) | mm | 370 | 370 | 430 | 510 | 510 |
| Minimum distance, centre of tube to ceiling (H3) | mm | 300 | 300 | 300 | 300 | 300 |
| Minimum distance, centre of tube to floor (H4) | mm | 400 | 400 | 450 | 640 | 640 |
| Minimum distance, centre of tube to wall | mm | 100 | 105 | 115 | 130 | 145 |
| Installation length (L) | mm | 220 | 220 | 220 | 220 | 220 |
