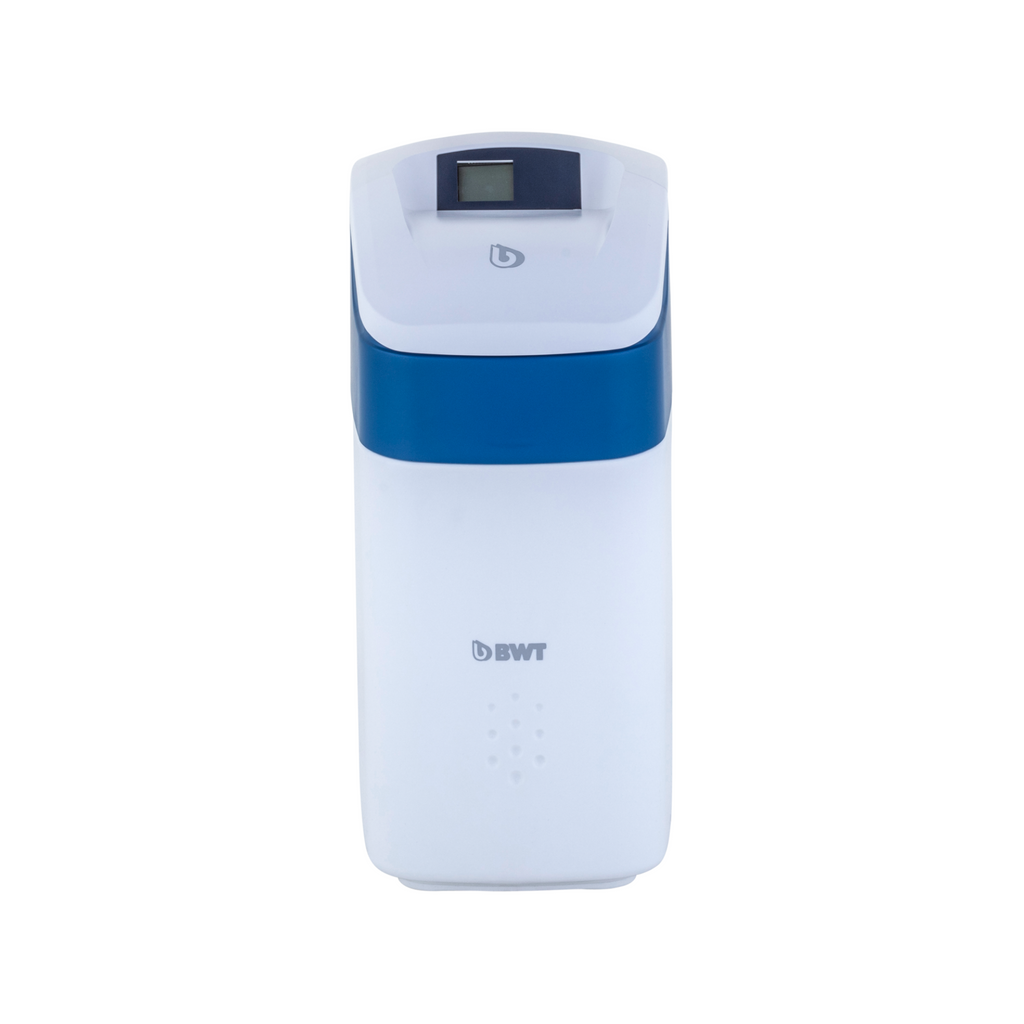

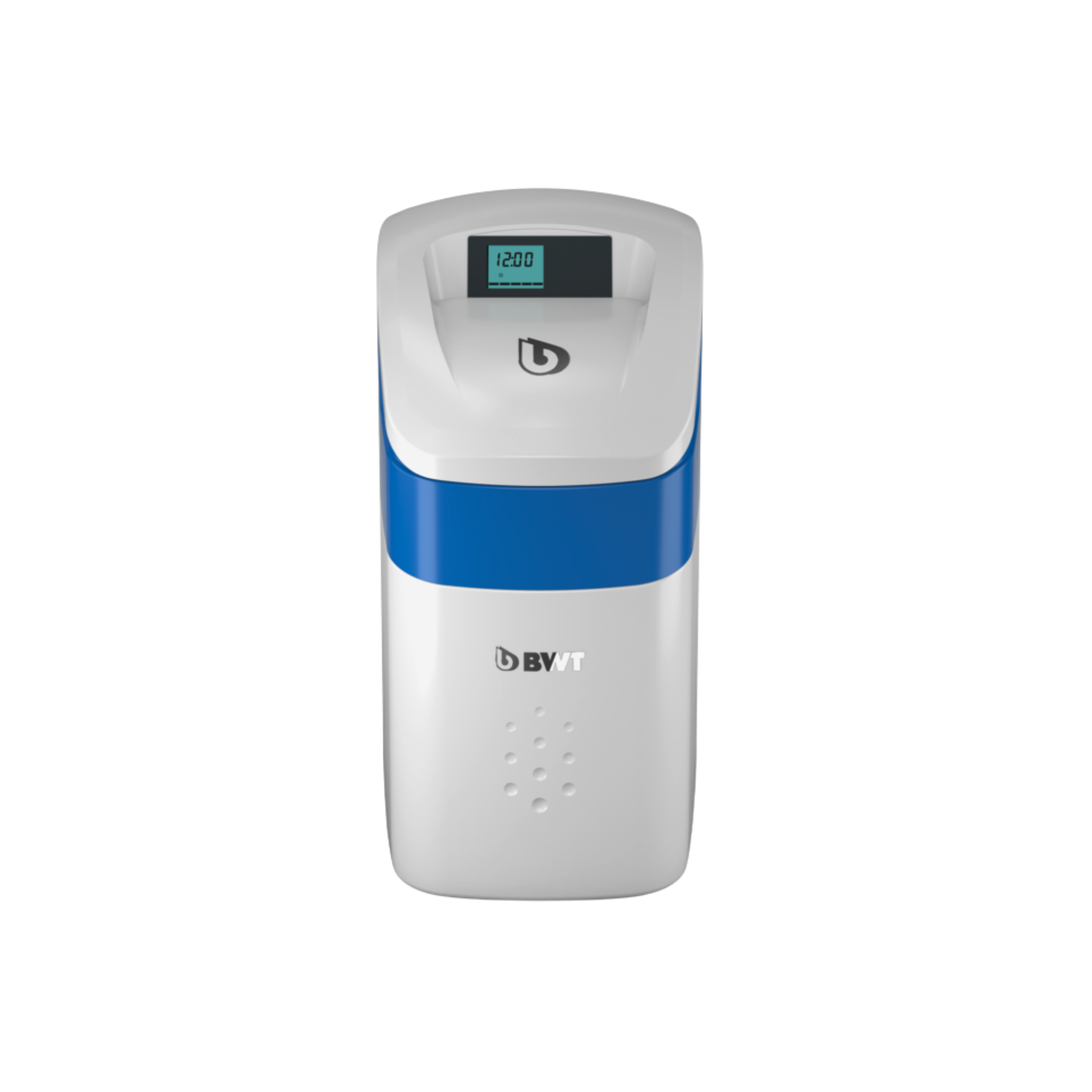

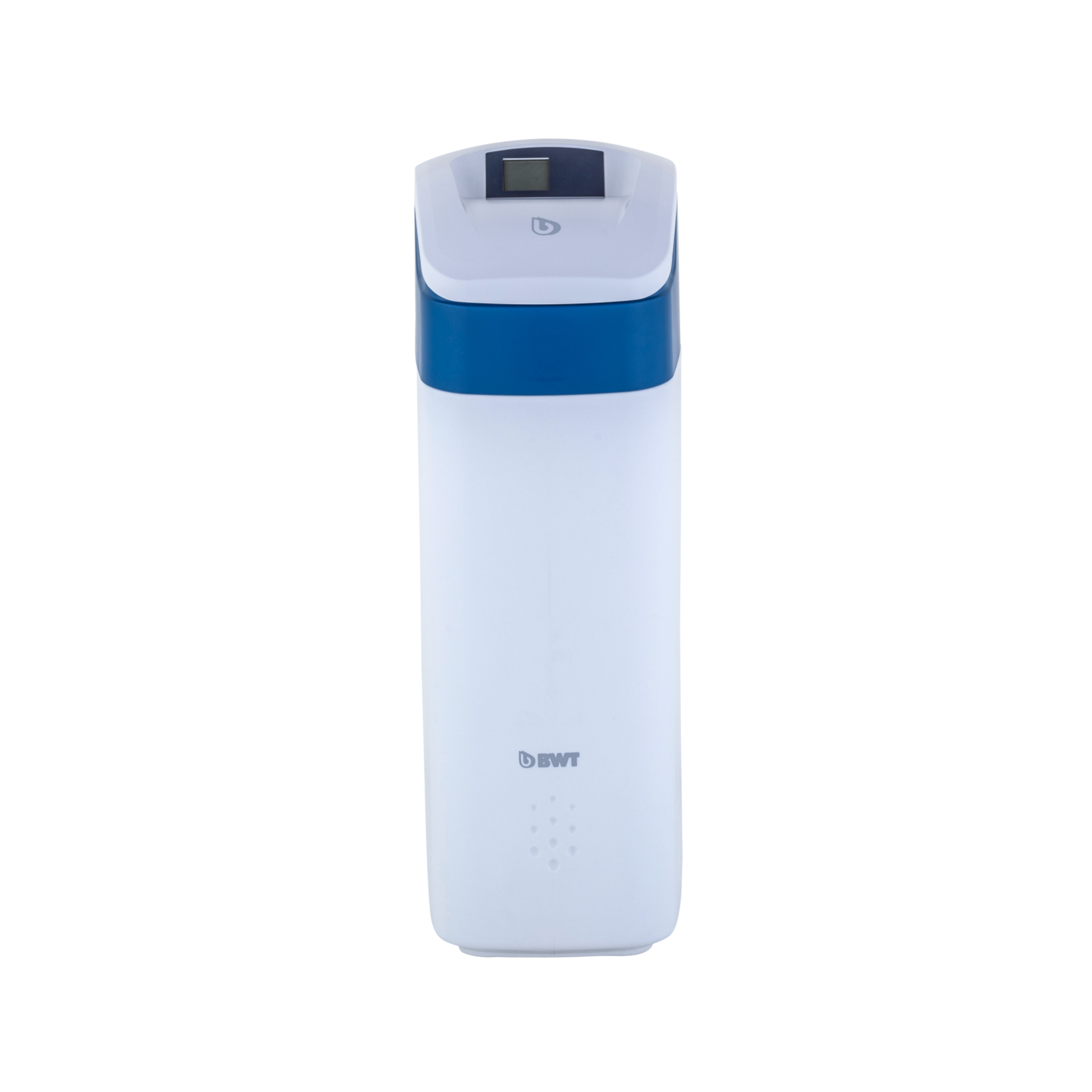

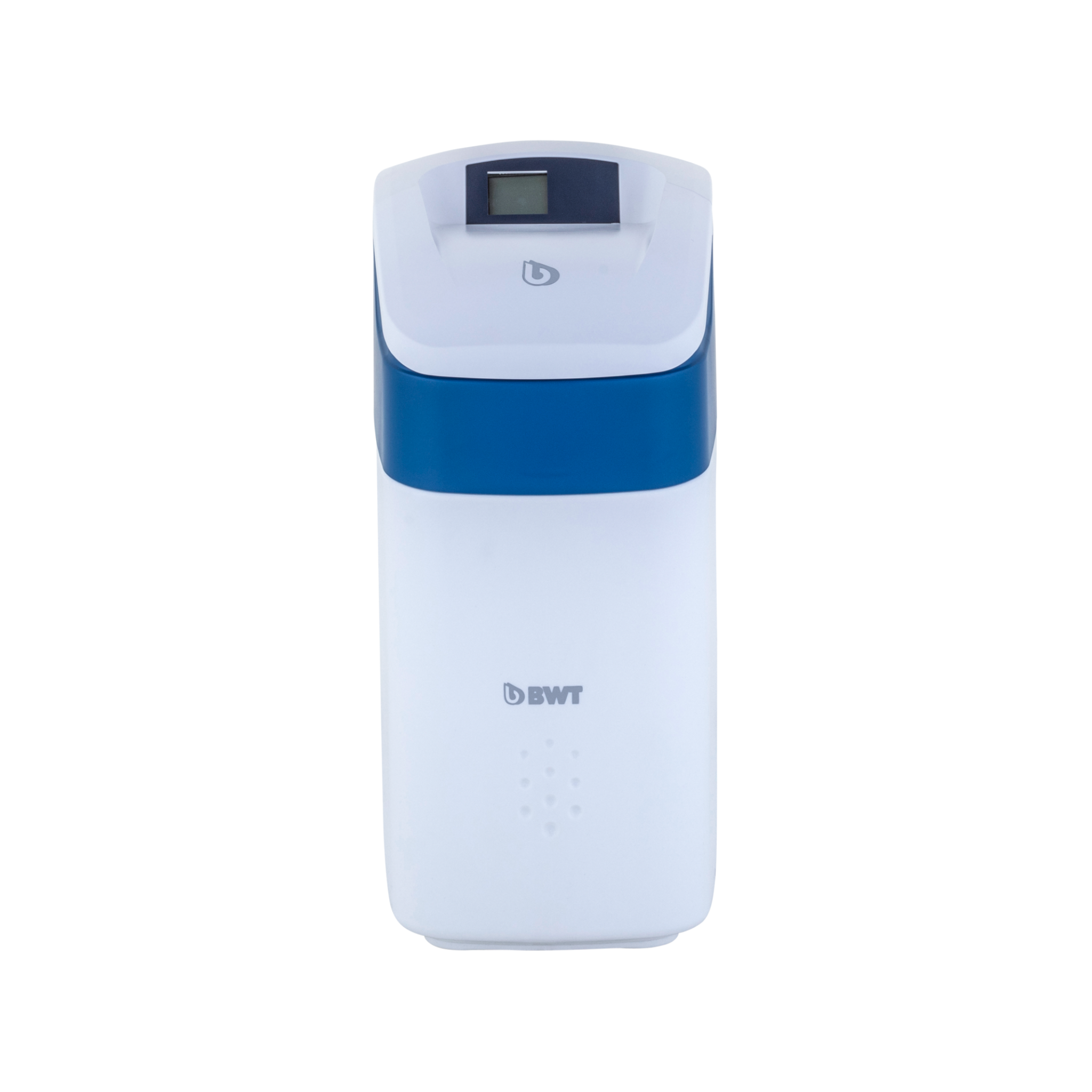

BWT Perla silk Bio | Domestic water softener S, M, XL

BWT
No reviews

Size: BWT Perla silk Bio S | 11020
Price:
Sale price€1.327,07

Tax included

Description

BWT Perla silk

Small but powerful. Enjoy, protect and save with BWT Pearl Water

Smart design - performance driven

The BWT Perla silk has been designed to compliment today's busy lifestyles, and to deliver copious amounts of perfect softened water efficiently with very low levels of water and salt consumption.

Meeting the demands of modern living

Luxurious silky-soft BWT Pearl Water is great for the whole family. Tough on sacale and scum, kitchen and bathroom cleaning times are reduced, leaving more free time for you and the family.

It will bring a new dimension to washing, bathing and showering. Used shampoo, soaps and detergents wash away more easily leaving your hair clean and shiny and clothes soft to the touch.

With WiFi connection

Get connected with the BWT App, your entry into a new era of customer satisfaction. Your personal water consultant for countless BWT products brings added value in terms of information, saftey and comfort and a whole world of advantages.

SMART ENABLED DOMESTIC WATER SOFTENER – THE PERFECT LIFESTYLE CHOICE

Key features

  • Fully automatic operation
  • Intuitive customer interface
  • Proportional brining – more capacity, less salt consumption
  • New brine check valve prevents overfilling
  • Automatic resin disinfection during regeneration (Bio function)
  • WiFi versions available

How to calculate the PEARL water capacity?

Example Bewamat

 IN: 20°dH / 356 ppm
OUT: 5°dH / 89 ppm
Difference: 15°dH / 267 ppm

Bewamat 25A:

25.000* / 15 = 1.666 litre

Bewamat 75A:

75.000* / 15 = 5.000 litre

Example BWT Perla silk / Aquadial bio

 IN: 20°dH / 356 ppm
OUT: irrelevant
Difference: irrelevant

BWT Perla Silk S / Aquadial 10 Bio:

26.000* / 20 = 1.300 litre

BWT Perla Silk XL / Aquadial 25 Bio:

75.000* / 20 = 3.750 litre

* Nominal capacity according to EN 14743

Technical Specifications

 BWT Perla - Silk Type S Bio M Bio XL Bio
Nominal connection (outside thread) BSP 3/4" (DN 20) 3/4" (DN 20)
3/4" (DN 20)
Nominal flow rate in accordance with EN 14743 l/h 1440 1560 1680
Operating pressure EU (min./max.) bar 1.0/8.0 1.0/8.0 1.0/8.0
Pressure drop down at nominal flow in accordance with EN 14743
bar 1.0 1.0 1.0
Quantity of ion-exchange resin
l 10 15 25
Nominal capacity (EN 14743) / (CaCO3 mmol/l)
m³x°dH / mol / ppm 26 / 4.6 / 460 43 / 7.7 / 770 75 / 13.4 / 1340
Capacity salt reservoir
kg 12 16 24
Salt consumption per regeneration
kg 1.5 2.0 3.0
Water consumption per regeneration
l 85 105 145
Protection class
IP 51 51 51
Water temperature (min./max.)
°C 5 / 30 5 / 30 5 / 30
Ambient temperature (min./max.)
°C
5 / 40
5 / 40
5 / 40
Electrical connection
V / Hz 230 / 50 230 / 50 230 / 50

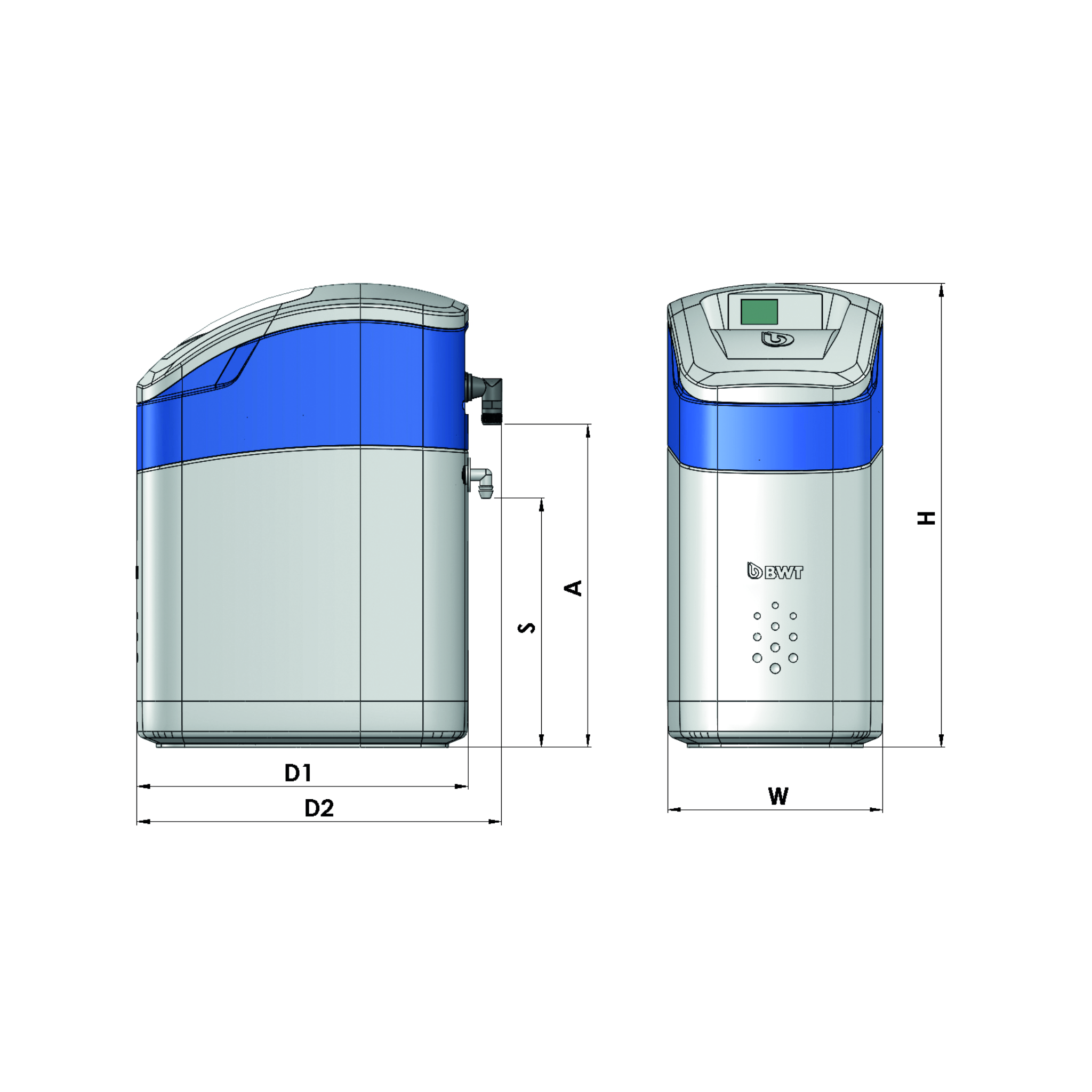

Dimensions: Width x depth x height (W x D2 x H)
mm 276 x 470 x 526
276 x 470 x 596
276 x 470 x 803
Connection height (A) / Overflow height (S)
mm 345 / 250
415/ 320
622 / 527
Operating weight, approx.
kg 40 50 70
Order no.
11020 11021 11022
Order no. Wifi
11040 11041 11043

*Tested with HiFlow connection available in option

Downloads

Installation and operating manual

Technical Data Sheet
