Description
Drinking water softeners

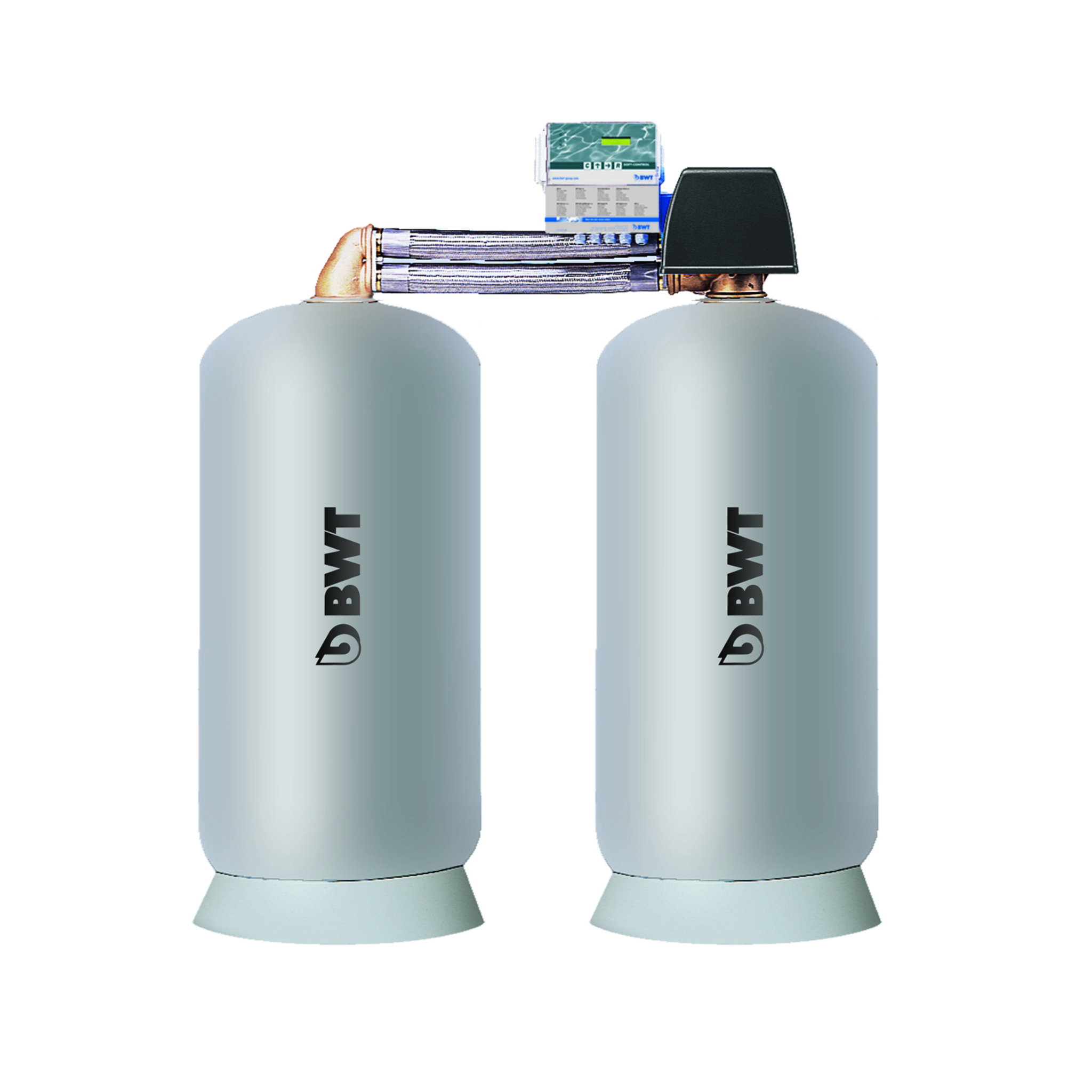

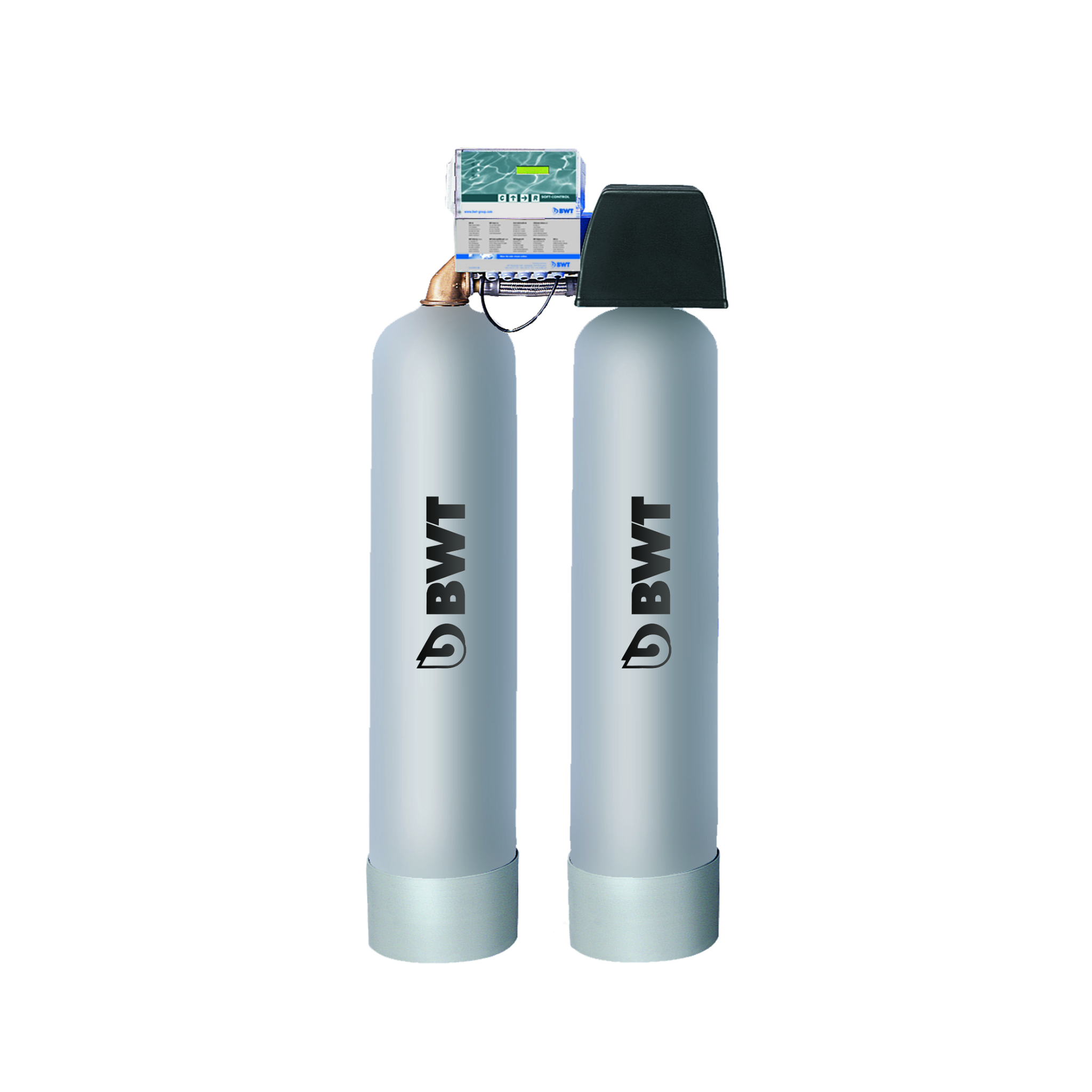

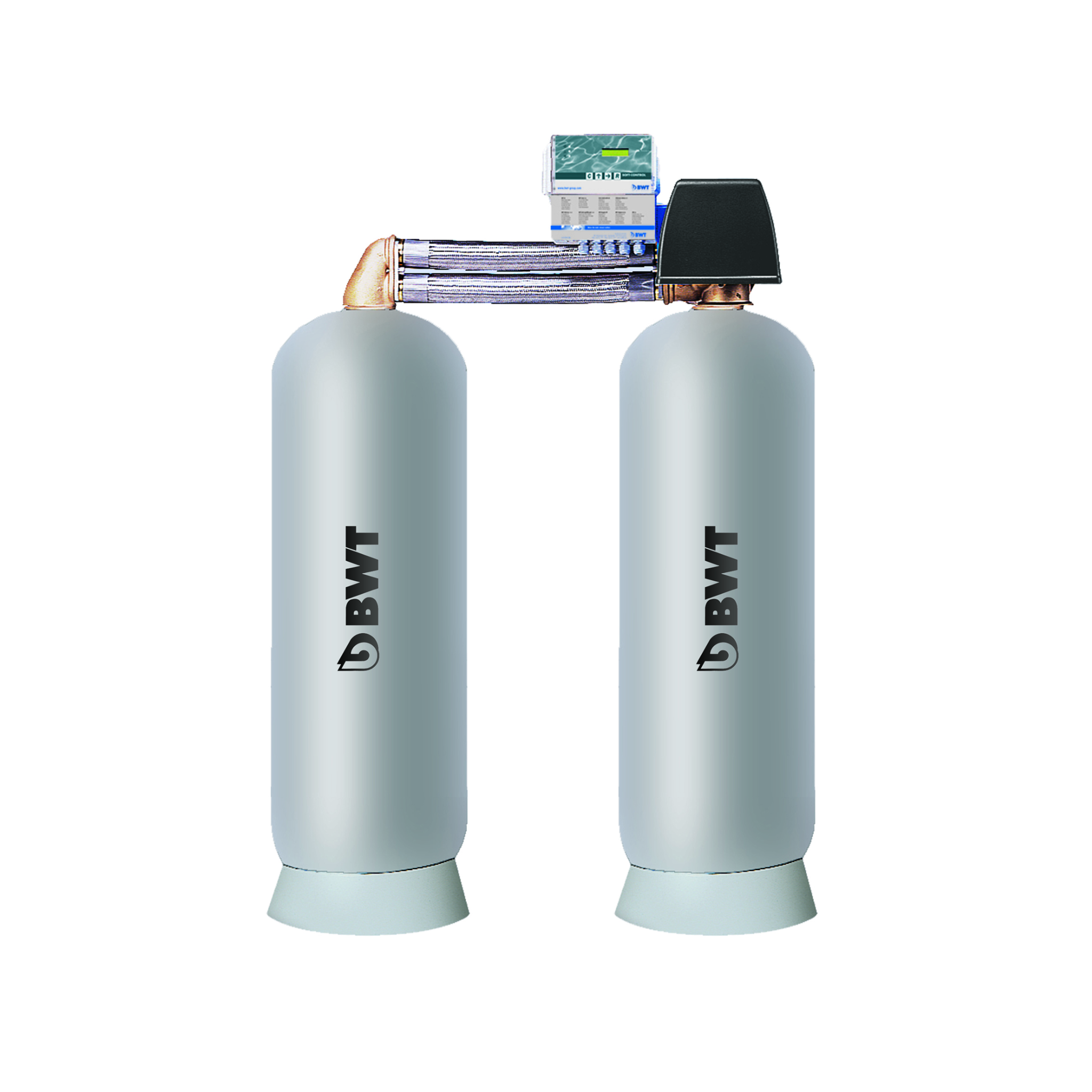

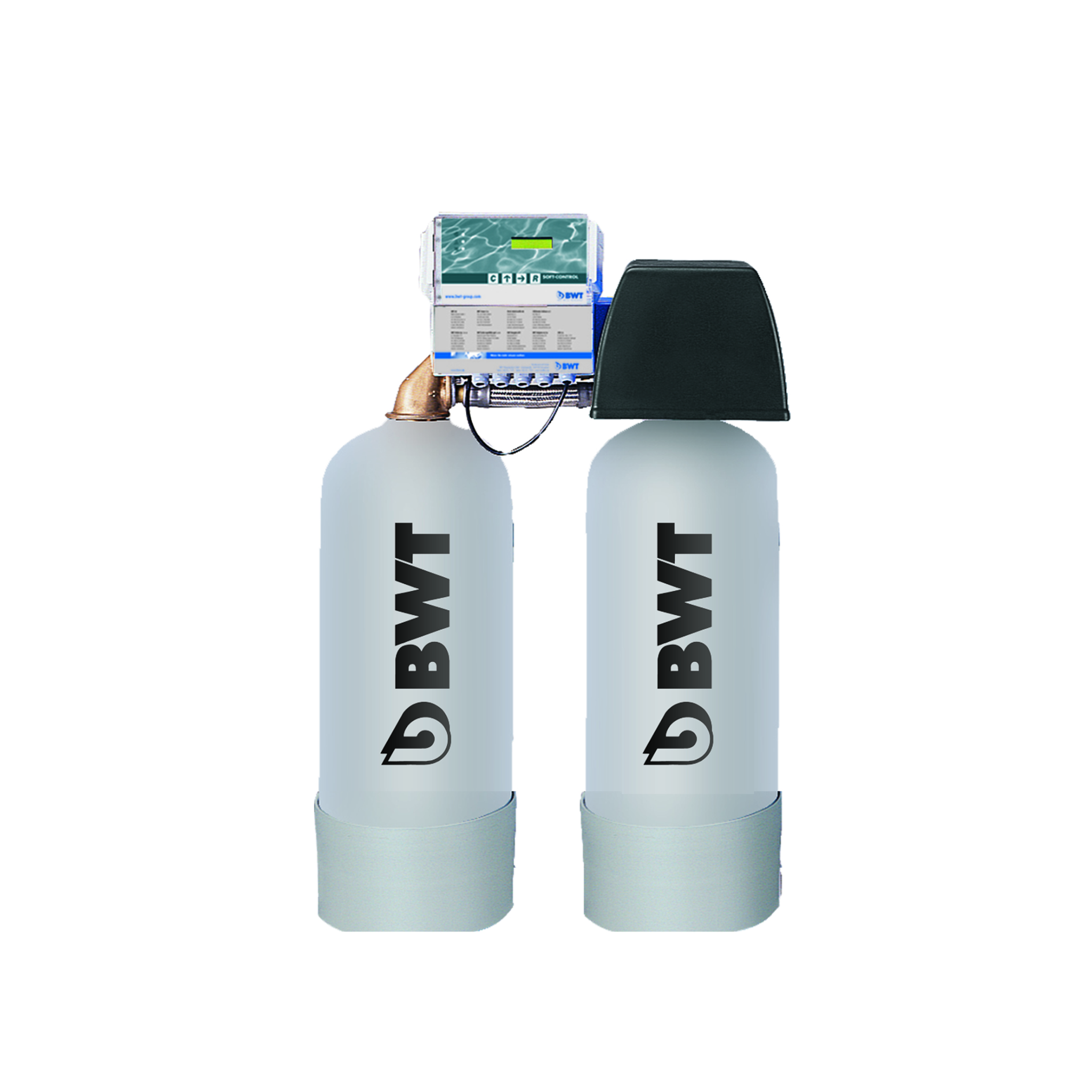

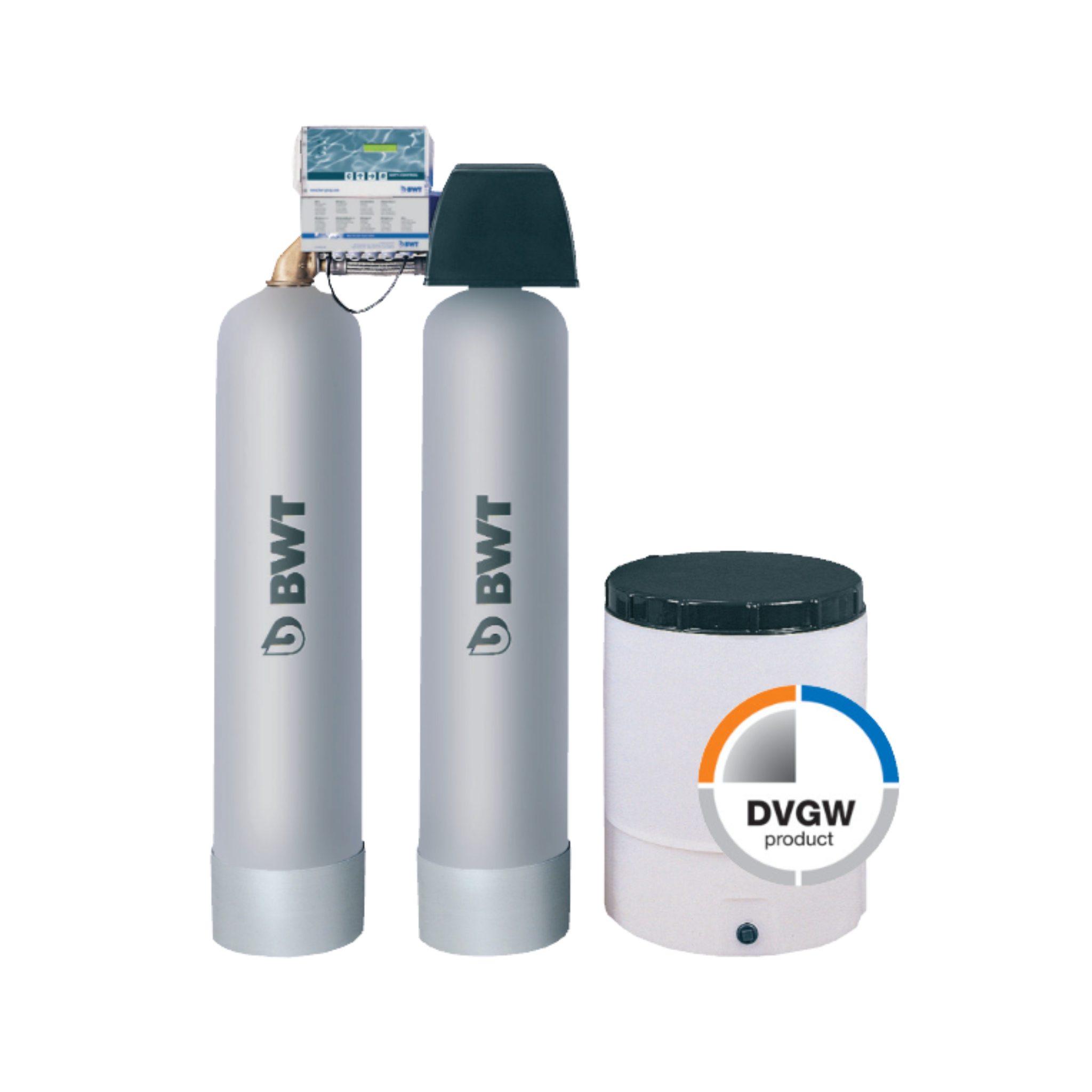

RONDOMAT DUO - DVGW Type 2 - 10
Quantity dependent controlled soft water pendular unit, with soft water short cycle generator, intelligent control electronics with control head and control device with ZLT-connection, individual setting of the raw water hardness at the press of a button, no additional system or pipe partition required, regeneration ends shortly before switching cycle, noticeable space-saving, integrated germ protection system, short and fast regeneration, optimal salt and flushing water consumption - independent of the prescribed water pressure. Scope of delivery: complete unit, hardness testing device.
Installation requirements:
- Nominal pressure 10 bar
- Operating pressure 2.5 - 8.0 bar
- Mains connection 230/50 - 60 V/Hz
- Protection class IP54
Technical data
| Type | Duo 2 | Duo 3 | Duo 6 | Duo 10 | |
| Nominal connection width | DN | 32 | 32 | 50 | 50 |
|
Nominal pressure (PN) |
bar |
10 | 10 | 10 | 10 |
|
Operating pressure |
bar | 2,5–8,0 | 2,5–8,0 | 2,5–8,0 | 2,5–8,0 |
|
Flow pressure, at least |
bar |
2,5 | 2,5 | 2,5 | 2,5 |
|
Rated capacity to DIN 19636 |
mol (°d x m3 ) | 6,4 (36) | 17,2 (96) | 44,7 (250) | 64,4 (360) |
|
Capacity / kg regenerative |
mol | 4,5 | 5,0 | 5,6 | 5,2 |
|
Ion exchange material in the softening column |
l | 2 x 18 | 2 x 43 | 2 x 100 | 2 x 150 |
| Max. supply of regenerative | kg | 75 | 75 | 150 | 150 |
|
Regenerative consumption per regeneration |
kg |
1,44 | 3,4 | 8,0 | 12,5 |
|
Flushing water consumption per regeneration at 4 bar, ca. |
Litre | 75 | 140 | 350 | 440 |
|
Flushing capacity, max. |
l/s | 0,14 | 0,14 | 0,31 | 0,31 |
|
Mains power |
V/Hz | 230/50-60 | 230/50-60 | 230/50-60 | 230/50-60 |
|
Degree of protection |
IP54 |
IP54 |
IP54 |
IP54 |
|
|
Max. water/ambient temperature, DVGW / I |
°C |
20/25 / 30/40 |
20/25 / 30/40 |
20/25 / 30/40 |
20/25 / 30/40 |
|
Number of housing units |
WE |
12 - 40 |
40 - 60 |
50 - 100 |
100 - 200 |
|
Nominal flow without dilution, According to DIN EN 14743 |
m3 /h |
2,0 |
3,0 |
6,0 |
10,0 |
|
Pressure drop at nominal flow without dilution, According to DIN EN 14743 |
bar |
0,7 |
1,0 |
1,0 |
1,0 |
|
Momentary peak flow at dilution 8 °d, Entries assume an untreated-water hardness of 20 °d |
m3 /h |
3,5 |
5,0 |
10,0 |
17,0 |
|
Pressure drop at dilution 8 °d, Entries assume an untreated-water hardness of 20 °d |
bar |
0,6 | 0,8 | 0,7 | 0,8 |
|
Electrical connection capacity |
Watt |
55 |
55 |
75 |
120 |
| Order number |
11151 |
11152 |
11153 |
11154 |
Dimensions
| Type | Duo 2 | Duo 3 | Duo 6 | Duo 10 | ||
|
Connection height (hard-water input), DVGW / I |
A | mm |
617 |
1138 | 1375 | 1259 |
|
Dist. between hard-water and soft-water outputs |
B | mm | 67 | 67 | 108 | 108 |
|
Total height, DVGW / I |
C | mm | 951 | 1472 | 1747 | 1631 |
|
Total depth |
D | mm |
900 |
900 | 1200 | 1200 |
|
Dist. between axes of ionizing bottles (for DVGW) |
F | mm | 362 | 362 | 728 | 728 |
|
Height of overflow (BOB design) |
G | mm | 295 (620) | 295 (620) | 620 | 620 |
|
Diameter of ionizing bottles |
H | mm | 261 | 261 | 417 | 559 |
|
Diameter of brine container (BOB design) |
J | mm | 470 (650) | 470 (650) | 650 (750) | 650 (750) |
| Height of brine container (BOB design) | K | mm |
630 (880) |
630 (880) | 880 (1160) | 880 (1160) |
| Min. filling height (BOB design) | M | mm |
|
|
||
| Wall distance, approx. | N | mm |
400 |
400 | 600 | 600 |
| Minimum sewage system connection | DN | 50 | 50 | 70 | 70 | |
| Approx. operating weight, DVGW / I | kg | 200 | 200 / 280 | 650 | 780 | |
| Approx. operating weight, IBOB | kg | 320 | 400 | 860 | 990 |
