Description
Woda-Pure
The BWT Woda-Pure series turns ordinary tap water into best drinking water. Define your own water quality at your home: water free of particles, odour, chlorine, bacteria, etc. with or Mg2+ Mineralizer technology. And choose your BWT cartridge systems for your water issues.
- Use local tap water | Local tap water is treated onsite and turned into safe drinking water. Best of all: the great-tasting BWT Magnesium Mineralized Water.
- Conservation of resources | No need to buy and transport water in plastic bottles any longer - this saves resources and reduces the CO2 footprint.
- Reduce plastic waste | Less production and use of plastic water bottles reduce the amount of plastic waste drastically - it's a contribution to sustainability.
- Save money | Avoiding plastic bottles and using local tap water can also save cash - in short, an economic and ecological investment.
Woda-Pure S-UF
ANTI-BACTERIAL
* Removal of bacteria and thus ideal protection from microorganisms for the best hygiene through ultra filtration membrane with hollow fibre
Capacity up to
S-UF | 12 000 L
We recommend to replace the filter cartridge at least after 6 months - independent of the remaining capacity. Also after shut down of more than four weeks. To maximize filter capacity we recommend to use a pre-filter of 5 μm or 1 μm.
Technical details
| Woda-Pure filter cartridge | S-UF |
| Overall height without fixture in mm | 360 |
| Overall height with fixture in mm | 385 |
| Connection height in mm | 310 |
| Fitting length in mm | 125 |
| Connection thread (inlet/outlet) | 3/8" |
| Maximum flow rate (l/h) | 200 |
| Nominal pressure, min - max. in bar | 2-8 |
| approx. pressure loss at 200 l/h in bar | 0.8 |
| Operating temperature, min. – max. in °C | 4-30 |
| Filter No. | 12566 |

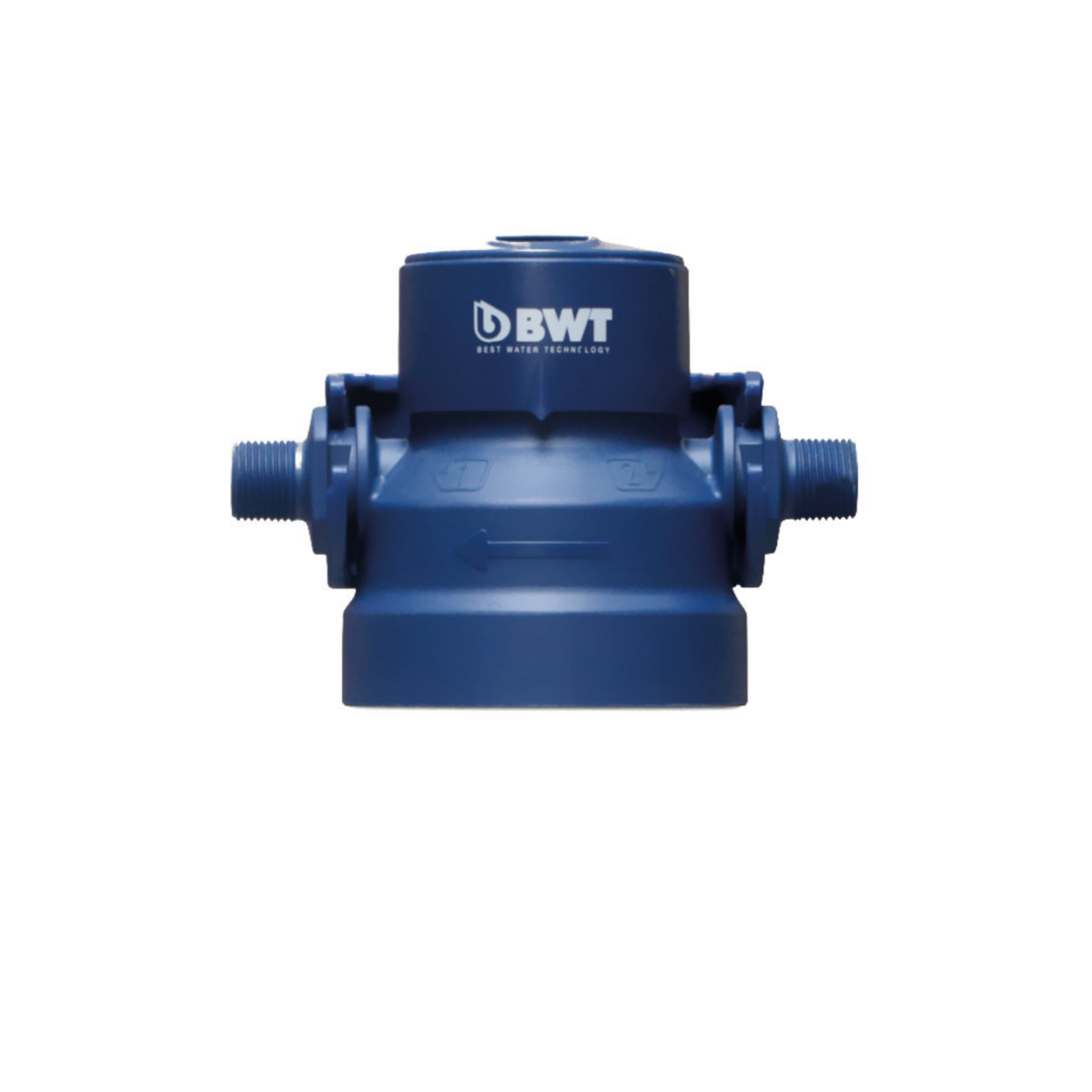

| Filter Head without bypass | 12533 |
| Filter Head with bypass (blend settings 0) | 12580 |
