Description
- For use with filter head 12580 (not for BWT GROHE, BWT BLANCO or BWT w+m filter heads)
Woda-Pure
The BWT Woda-Pure series turns ordinary tap water into best drinking water. Define your own water quality at your home: water free of particles, odour, chlorine, bacteria, etc. with or Mg2+ Mineralizer technology. And choose your BWT cartridge systems for your water issues.
- Use local tap water | Local tap water is treated onsite and turned into safe drinking water. Best of all: the great-tasting BWT Magnesium Mineralized Water.
- Conservation of resources | No need to buy and transport water in plastic bottles any longer - this saves resources and reduces the CO2 footprint.
- Reduce plastic waste | Less production and use of plastic water bottles reduce the amount of plastic waste drastically - it's a contribution to sustainability.
- Save money | Avoiding plastic bottles and using local tap water can also save cash - in short, an economic and ecological investment.

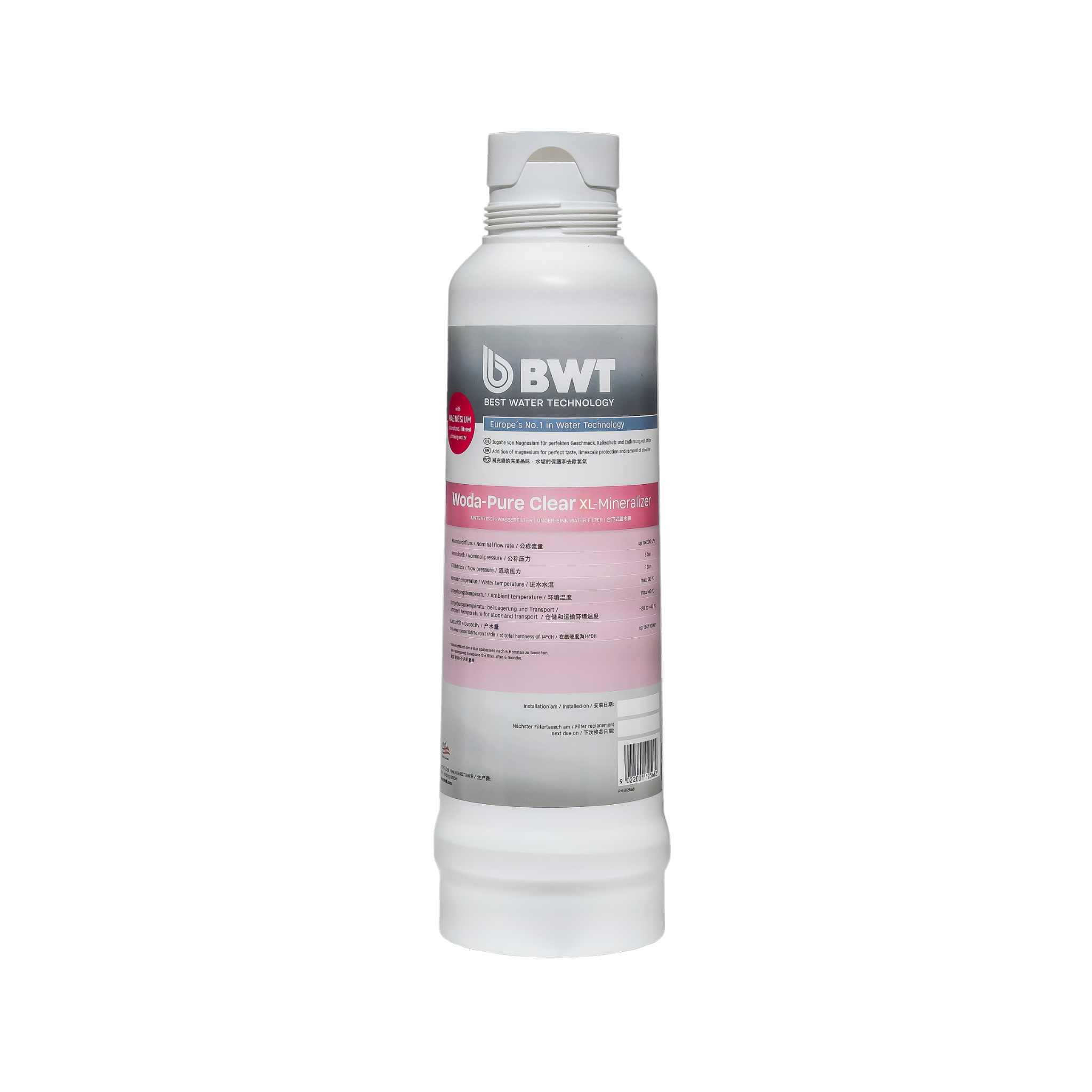

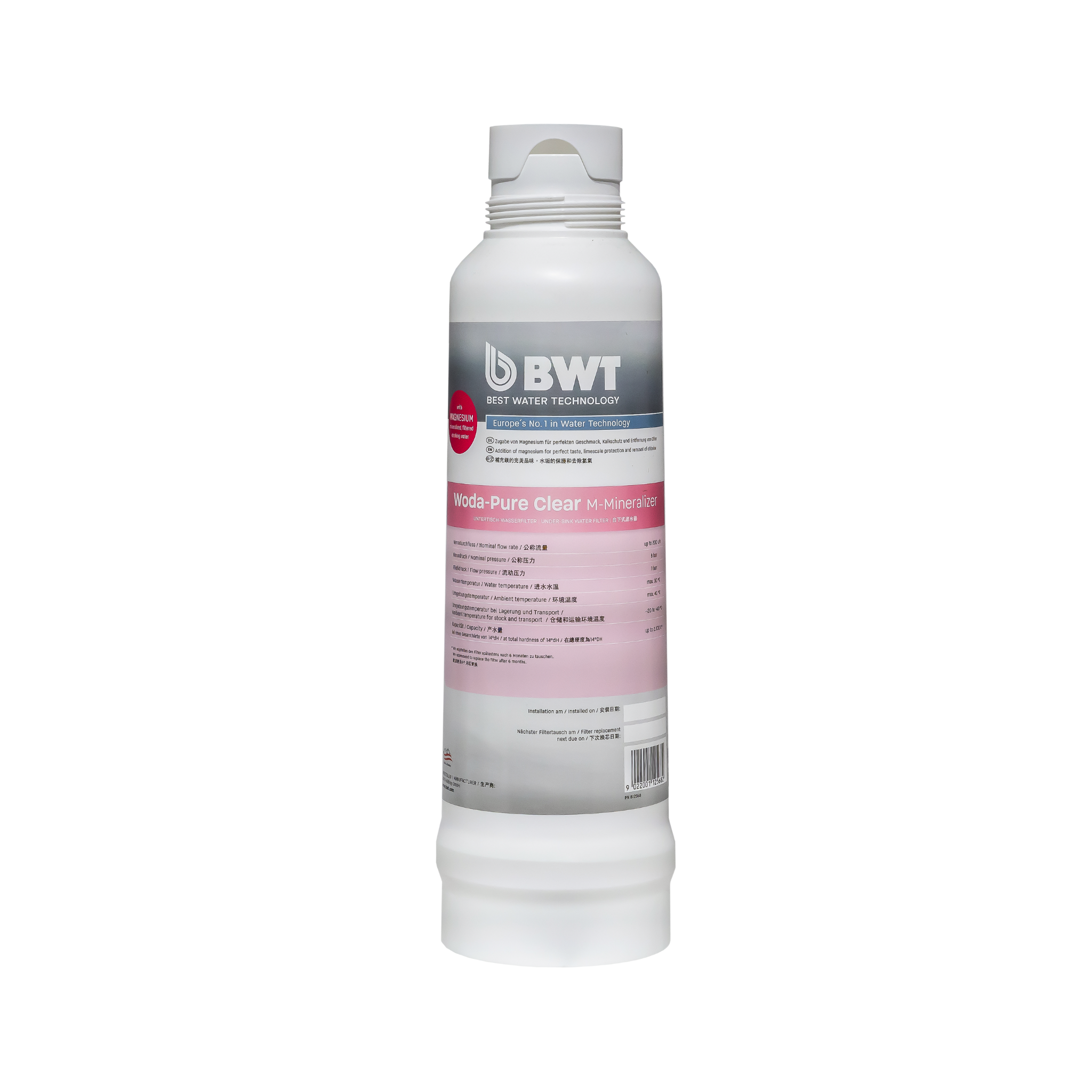

Woda-Pure Clear V, M, XL Mineralizer
ADDS MAGNESIUM
* Better taste for tea, coffee and drinking water with magnesium minerals.
* Removal of Calcium (hardness) to prevent limescale deposits in hot/cold water machines.
Capacity up to (1)
Clear V | 2 500 L
Clear M | 3 800 L
Clear XL | 6 100 L
We recommend to replace the filter cartridge at least after 6 months - independent of the remaining capacity. Also after shut down of more than four weeks. To maximize filter capacity we recommend to use a pre-filter of 5 μm or 1 μm.
(1) For Woda-Pure Clear Mineralizer a special filter head/Bypass is required. Capacity depends on water hardness. Mineralizer capacity at 6 °dH.
Technical details
Woda-Pure Clear filter cartridge | V | M |
XL |

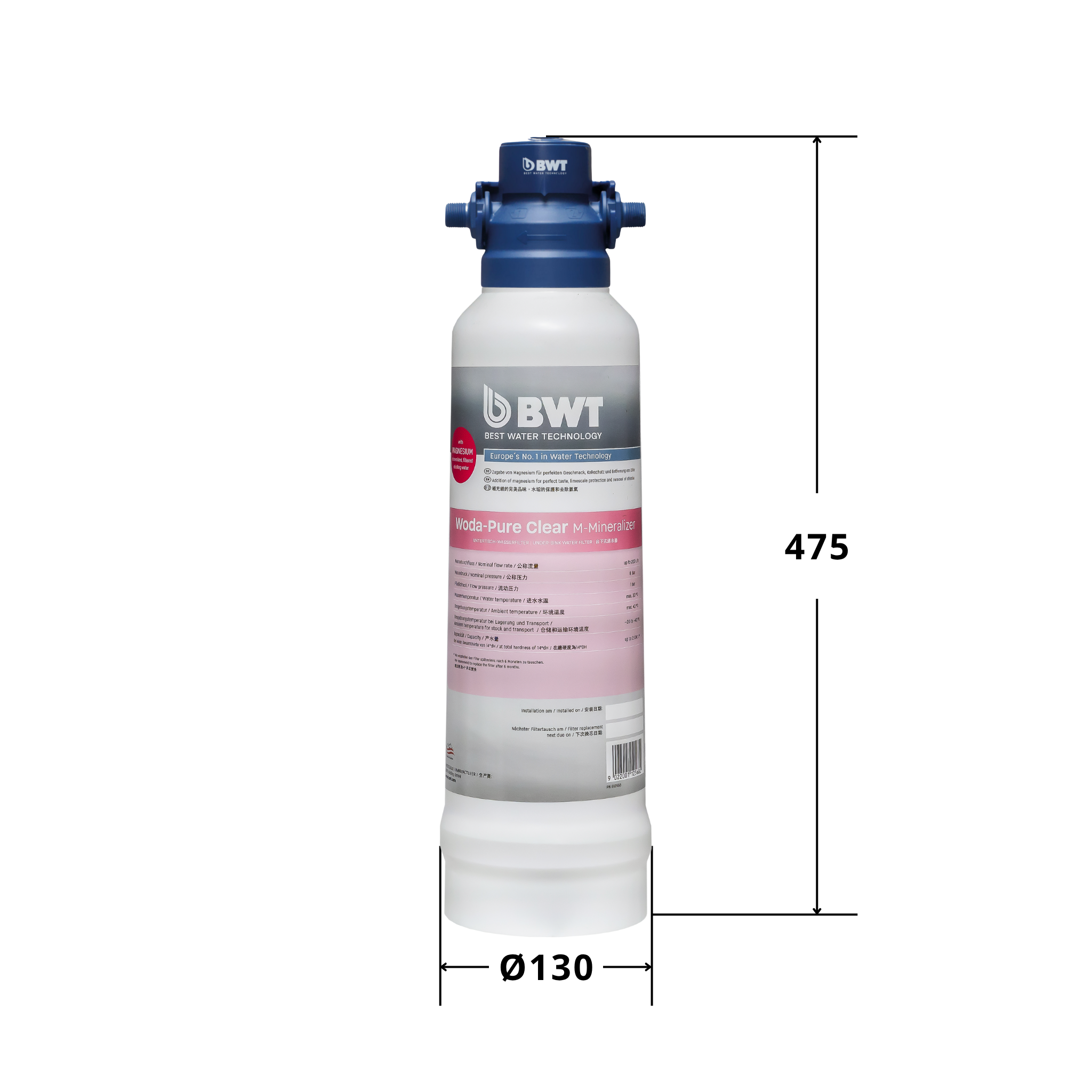

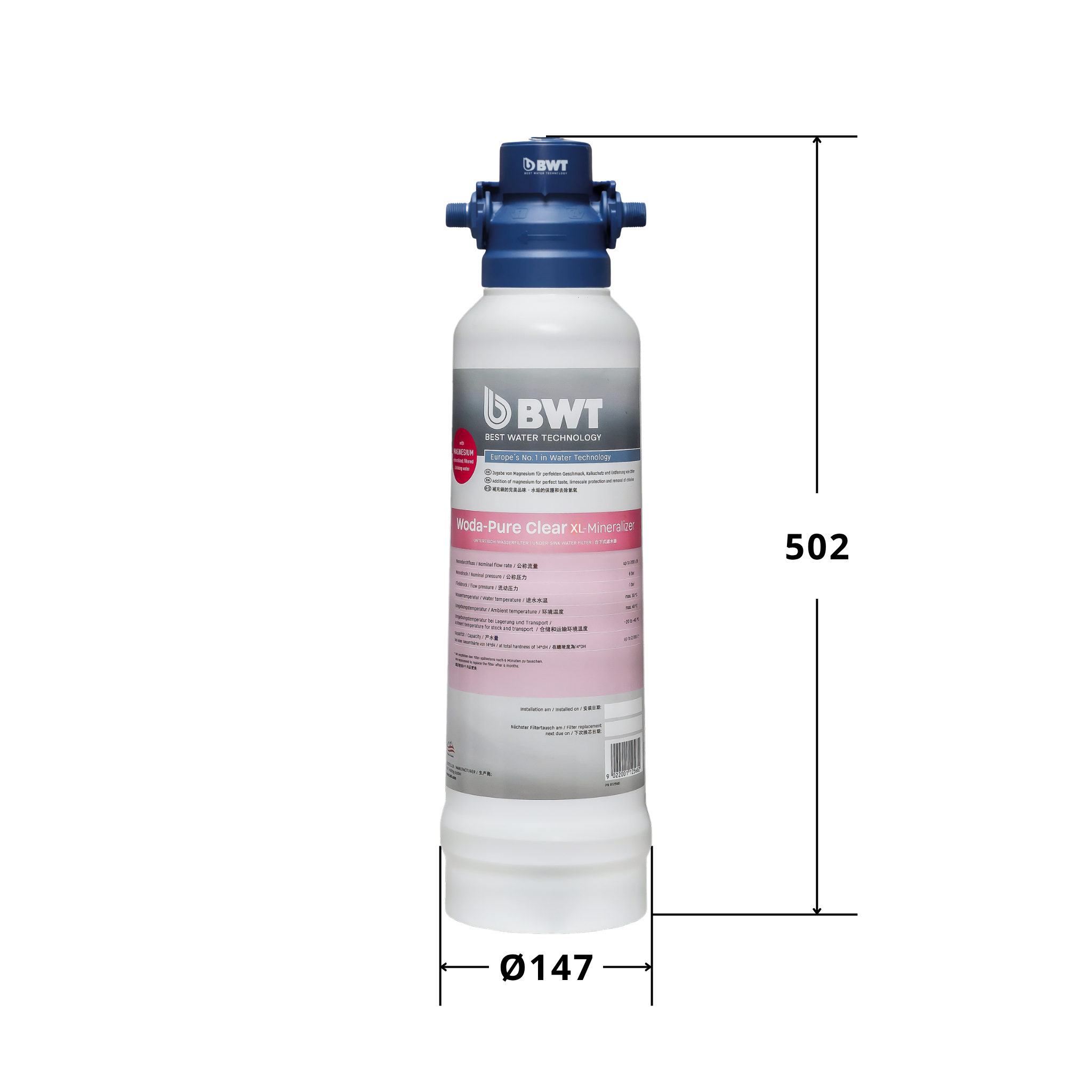

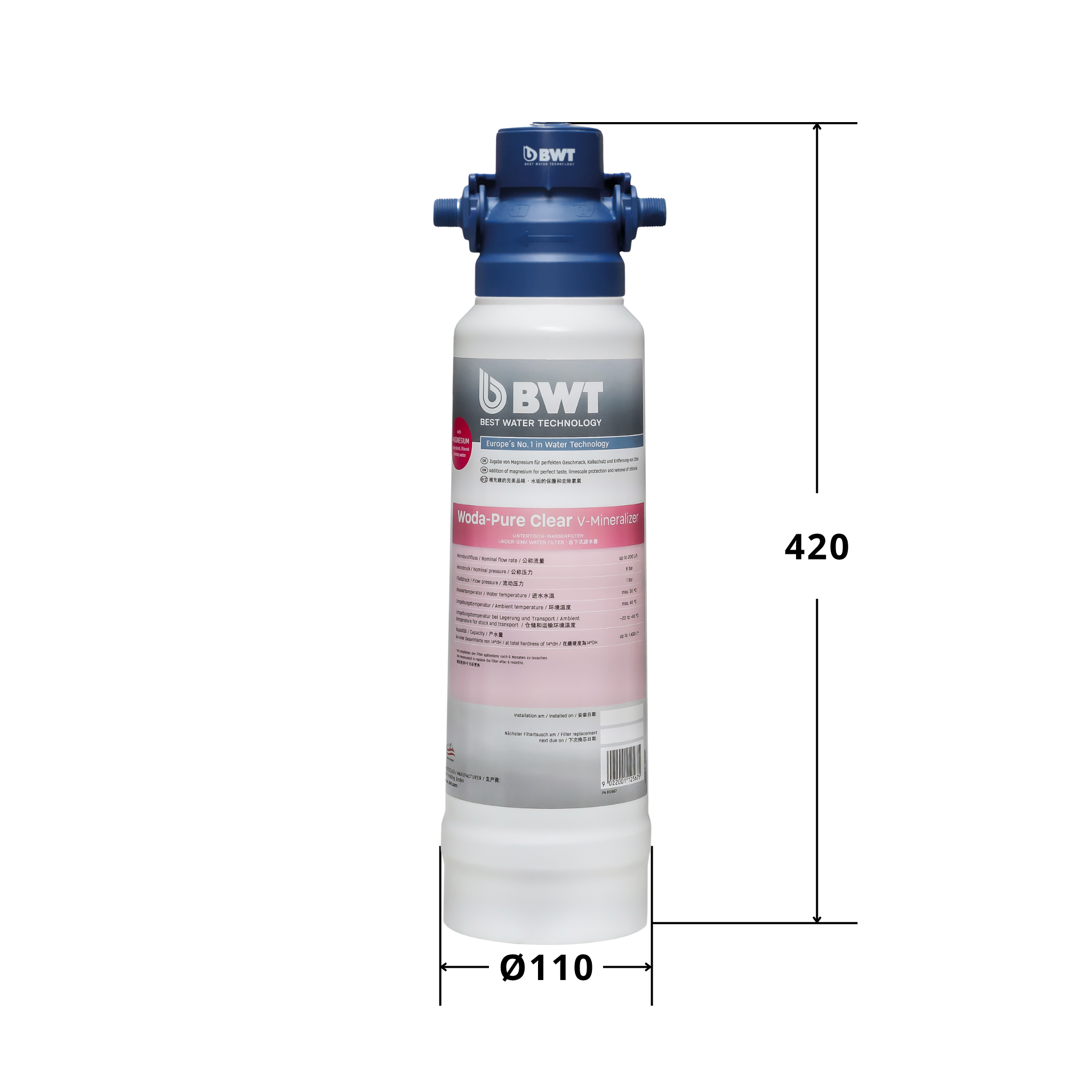

Overall height without fixture in mm | 420 |
475 |
502 |
Overall height with fixture in mm | 445 |
500 |
527 |
Connection height in mm | 366 |
421 |
448 |
Fitting length in mm | 125 | 125 | 125 |
Connection thread (inlet/outlet) | 3/8" | 3/8" | 3/8" |
Maximum flow rate (l/h) | 60 |
60 | 60 |
Nominal pressure, min - max. in bar | 2-8 | 2-8 | 2-8 |
approx. pressure loss at 200 l/h in bar | 0.5 |
0.5 | 0.5 |
Operating temperature, min. – max. in °C | 4-30 | 4-30 | 4-30 |
Filter No. | 12567 |
12568 | 12569 |

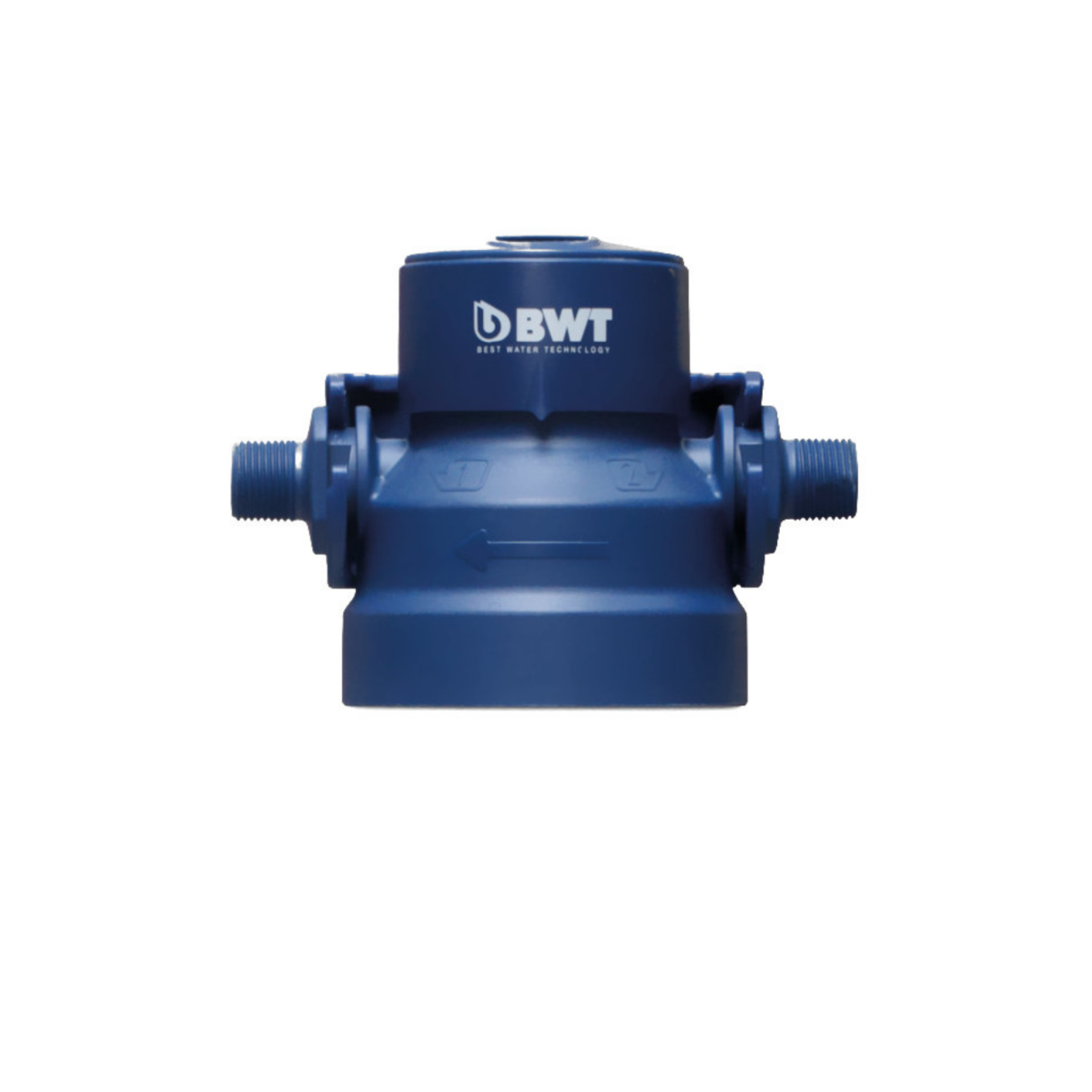

Filter Head with bypass | 12580 | 12580 | 12580 |
Downloads
Installation and operating manual
