Shower Series

BASE MODEL M-FS64

FOOT SHOWER

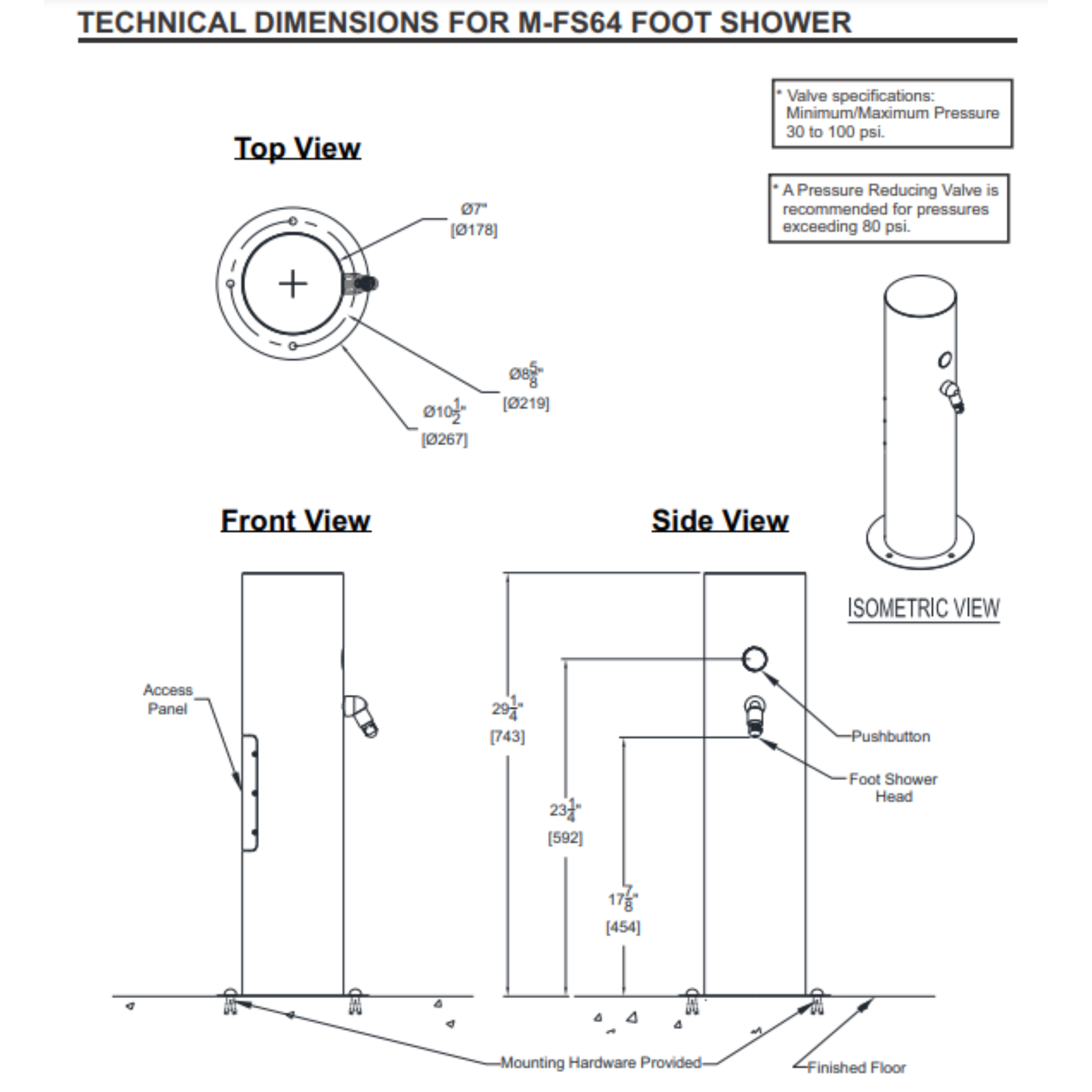

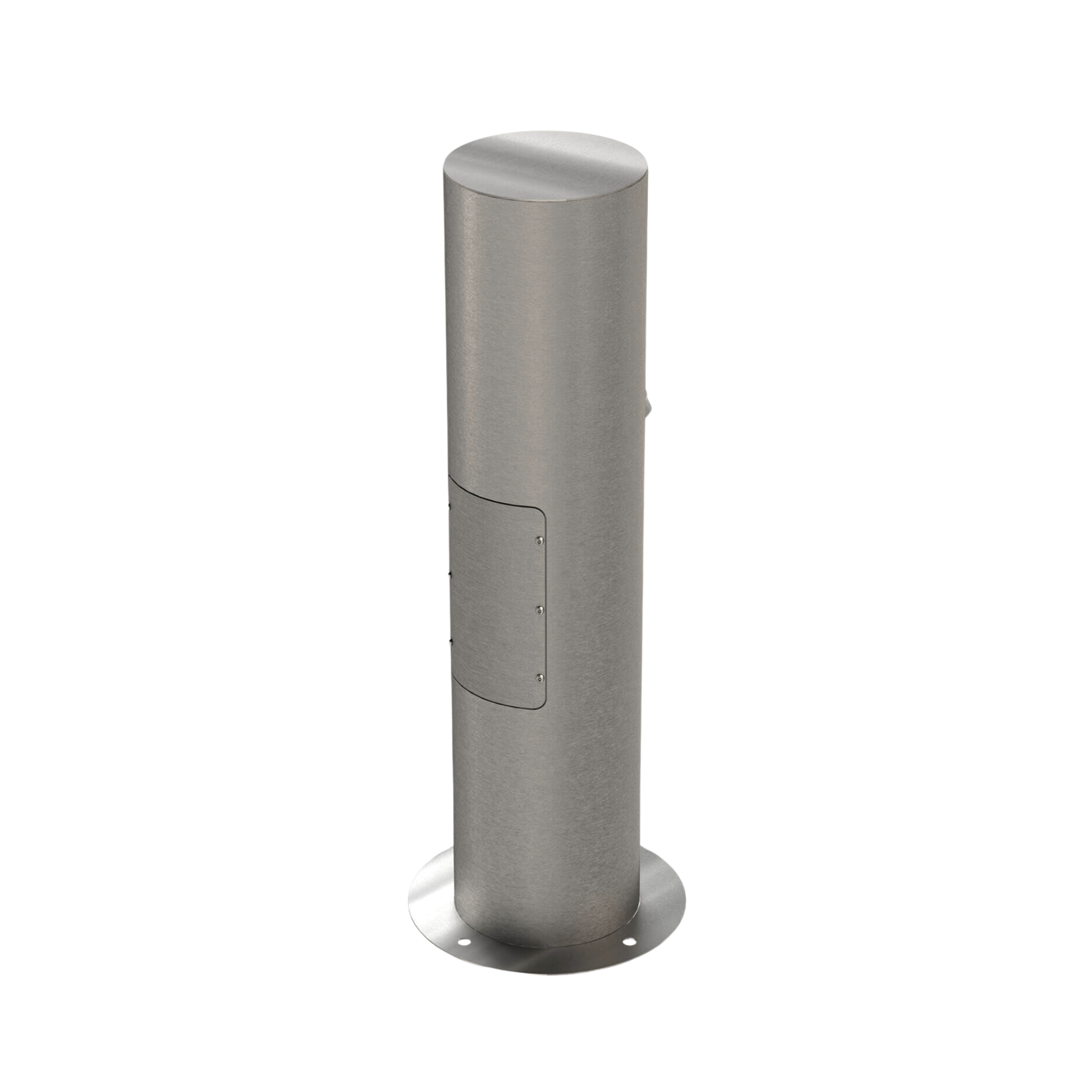

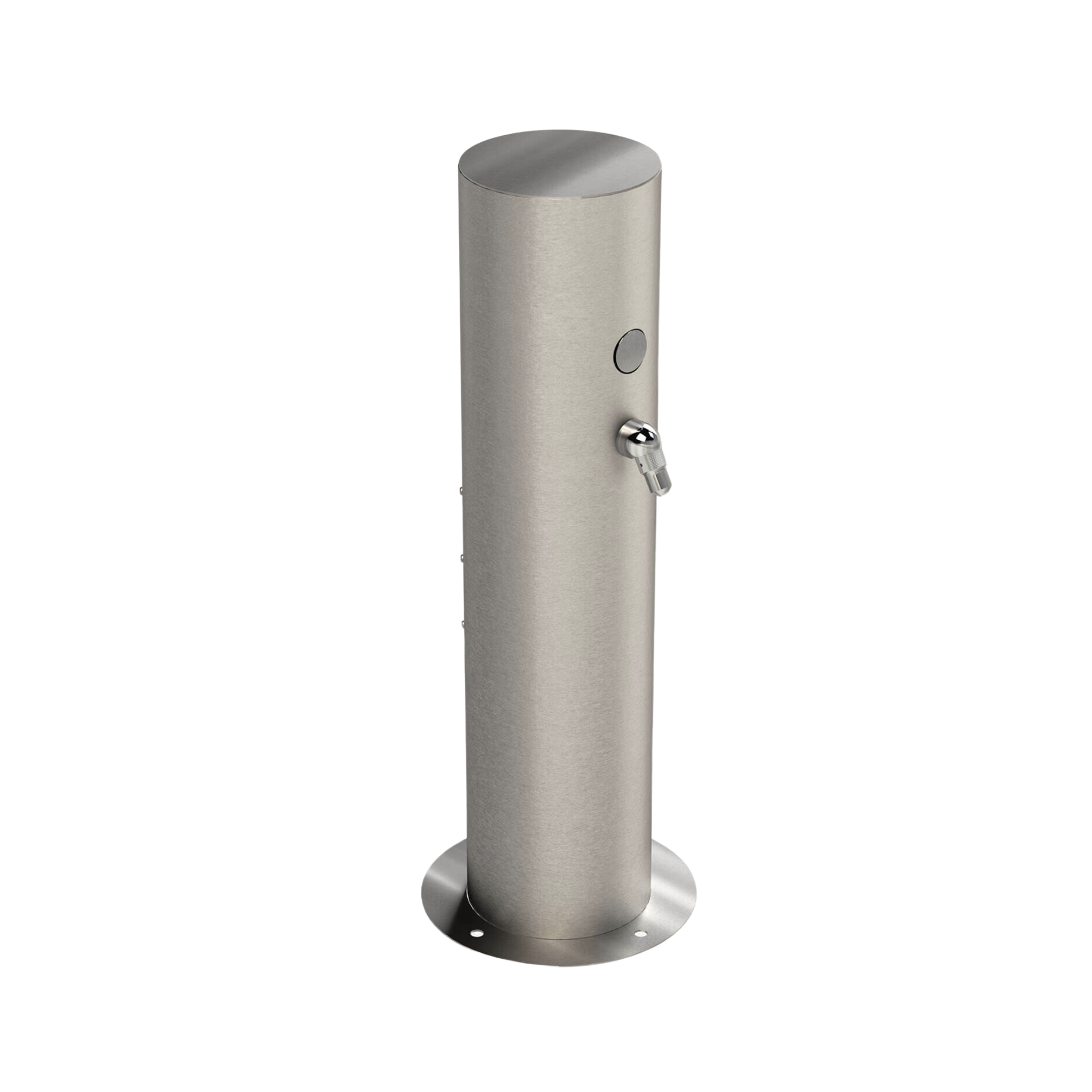

M-FS64 Series is a pedestal cylindrical foot shower. The pedestal measures 29-1/4" (742.95 mm) tall and 7" (177.8 mm) in diameter. A Logan nozzle showerhead is 17-7/8" (454 mm) above grade (orifice height). The pushbutton is approximately 5-3/8" (137 mm) above the showerhead. The fixture is mounted securely with four mounting holes on a 10-1/2" (266.7 mm) diameter base flange. The fixture is manufactured with heavy-duty stainless steel. Standard powder coating colors are available.

STANDARD FEATURES

• Chrome plated brass shower head with adjustable spray pattern
• Adjustable Valve timing from 5 to 60 seconds
• Pushbutton requiring less than 5 pounds for activation
• Vandal resistant stainless steel Access Panel
• Heavy duty, type 304 stainless steel housing

• 100-Mesh Inlet Strainer
• Available polished to a #4 satin finish


Downloads

Submittal M-FS64 Series Shower

Installation Instructions Install Guide M-FS64 Series Shower
