Description

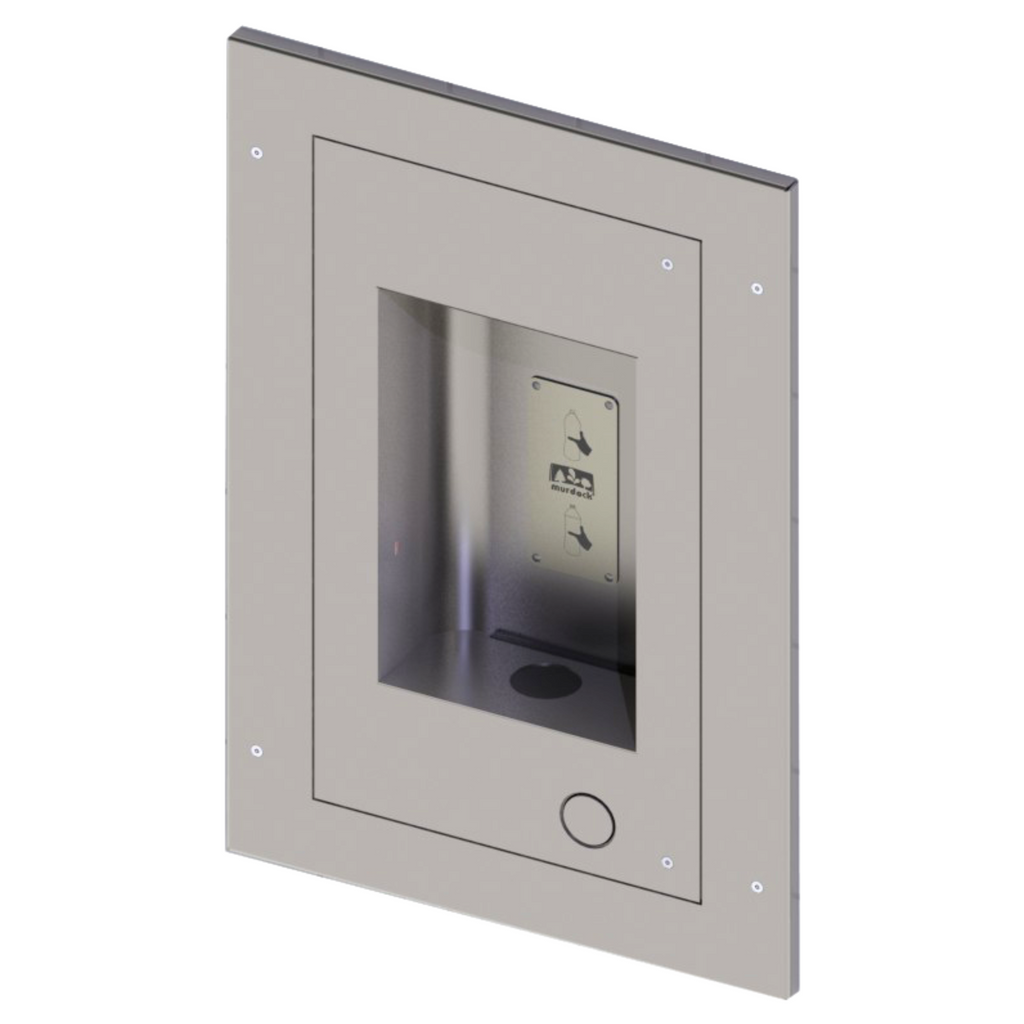

This durable, stainless steel, recessed outdoor water bottle has a slim and trim look that blends into your environment. Unit also has a strong vandal-resistant design for years of trouble-free service.
- When installed properly, the bottle filler complies with ADA forward and side reach requirements.
- Bottle filler is fabricated of type 304 stainless steel polished to a satin finish.
- Bottle filler shall be activated by a 9 volt sensor or a pushbutton as standard. When installed properly, the bottle filler complies with ADA forward and side reach requirements. In standard in stainless steel finish. Custom colors and design can be accommodated.
GW Series overview
| Product code |
Housing material |
Activation |
Refrigerator |
ADA | Freeze-resistan | |
|
BF3 |
142.100.100 |
Stainless Steel |
Push Button |
No |
Yes |
No |
|
BF4 |
142.700.328 |
Stainless Steel |
Sensor |
No | Yes |
No |
|
M-OBR4 |
142.200.300 |
Stainless Steel |
Sensor, Push Button |
No | Yes |
Available Option |
Downloads
Submittal M-OBR4 Series Bottle Filler
Installation Instructions Manual M-OBR4 Series Bottle Filler
