Description

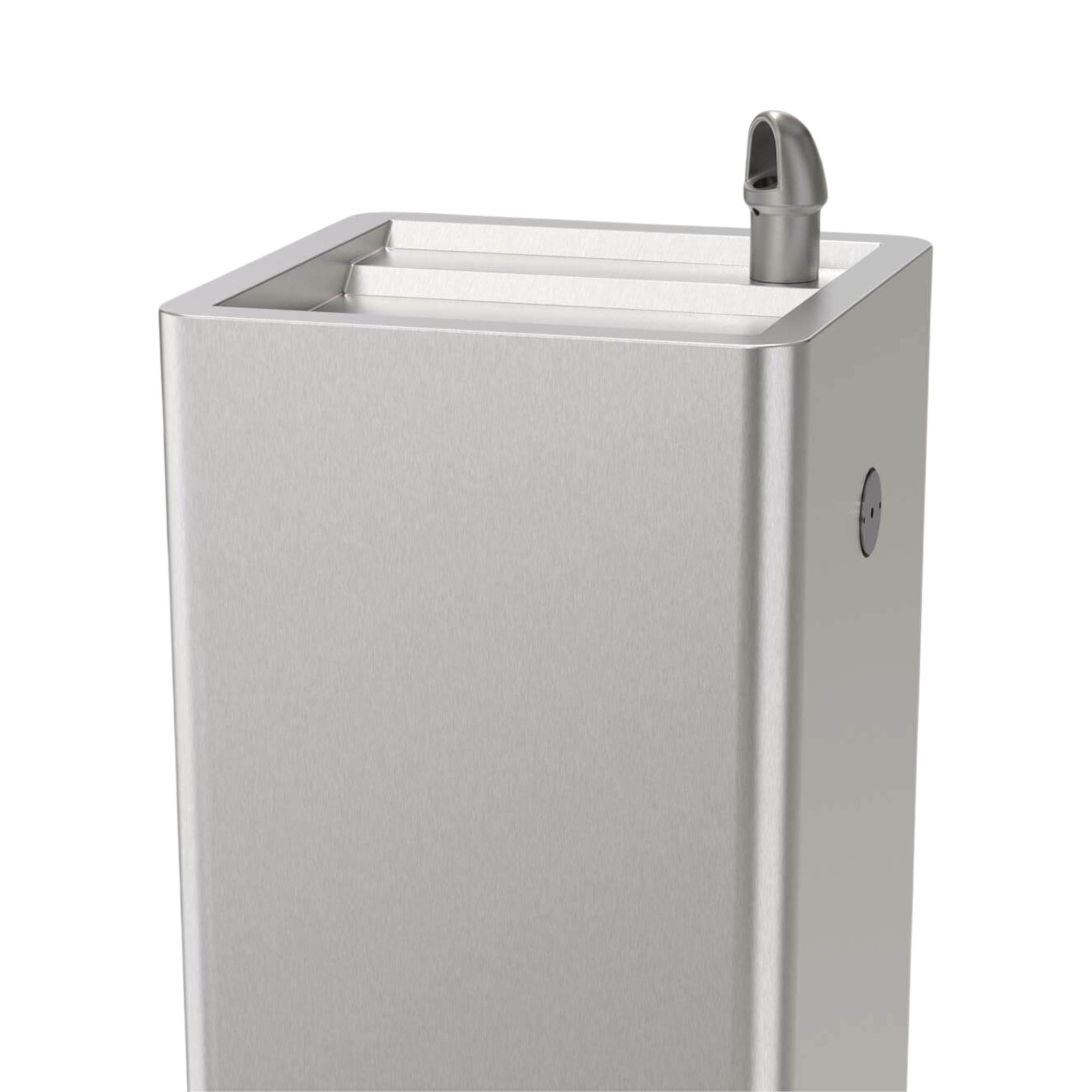

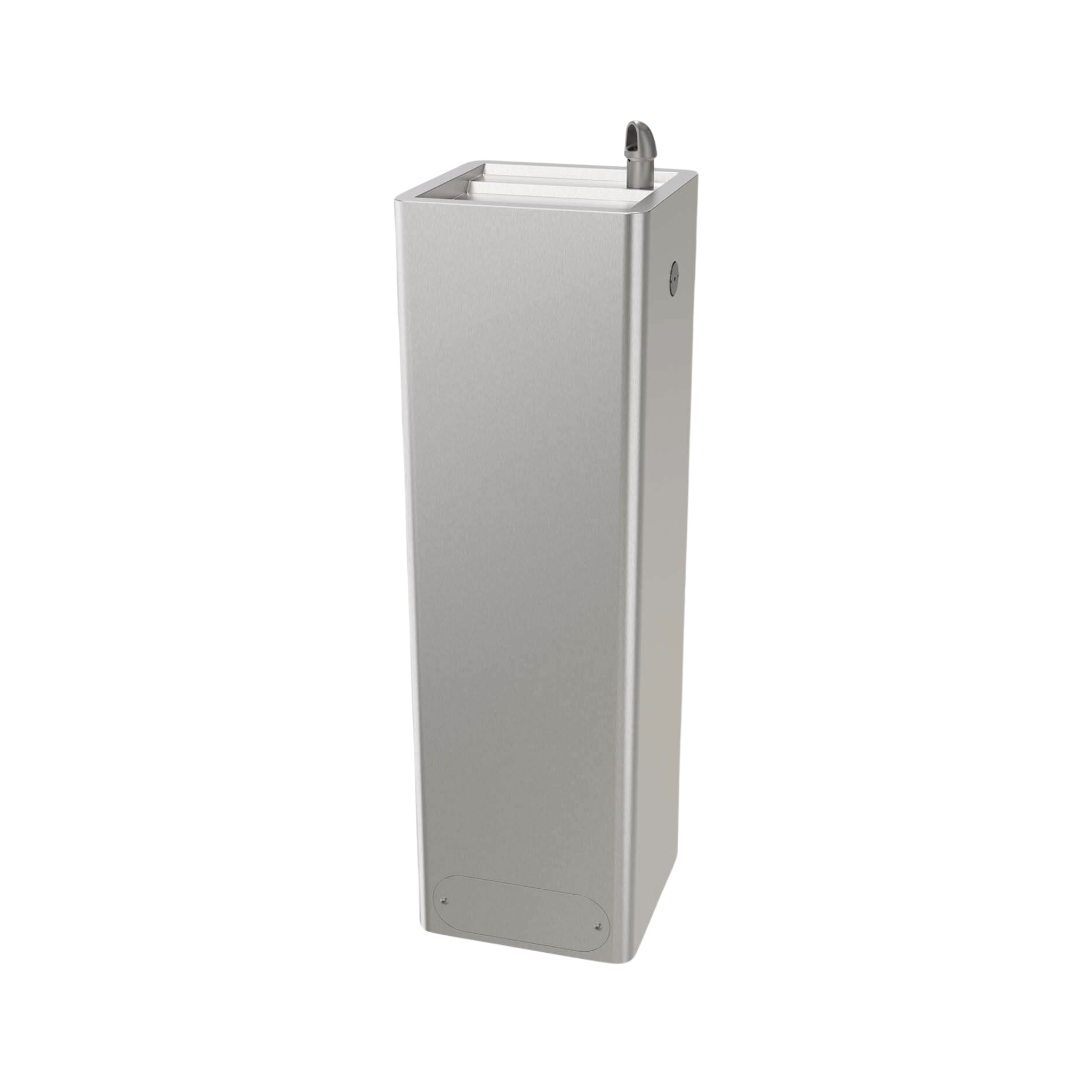

ECO-DF is an economical drinking fountain. The square pedestal fountain is 11-3/4" (298 mm) wide x 11-3/4" front-to-back.
- Standard height unit has a 39-1/2" (1.003 mm) bubbler orifice height
- Children height unit has a 33-1/2" (851 mm) bubbler orifice height
- Hand button operation is standard
- Optional foot button for dual hand/foot control
- All-Stainless steel construction
- 100 mesh inlet strainer
Model ECO‑DF Drinking Fountain shall be pushbutton operated requiring less than 5 pounds of force to activate an internally mounted self closing valve. (Foot Button for dual operation is optionally available.) Drinking Fountain shall include Stainless Steel Drinking Bubbler and Drain Grate. Housing and Pedestal shall be 18 gauge type 304 stainless steel with all exposed surfaces polished to a #4 satin finish. Pedestal base shall include concealed bolt holes for securing unit to floor. Drinking Fountain shall include Drain Grate with 7/8” O.D. flexible waste hose for trench drain waste (below grade). Provide stainless steel Access Panels to service and install unit with vandal‑resistant, stainless steel fasteners. Side Access Panel shall include a Cylinder Lock vandal esistance and ease of removal. Unit shall contain a 100 mesh inlet strainer. Unit shall be certified to meet NSF/ANSI 61, Section 9, Public Law 111‑380 (No‑Lead) and CHSC 116875. Dimensions: H*W*D 1003*298*298 mm.
ECO-DF Series
| ECO-DF | Pushbutton Operated Drinking Fountain (Standard) |
| ECO-DF-F | Hand/Foot Button Operated Drinking Fountain (In addition to Pushbutton Operation) |
| ECO-DF-CH33 | Child Height Pushbutton Operated Drinking Fountain |
| ECO-DF-CH33-F | Child Height Hand/Foot Button Operated Drinking Fountain (In addition to Pushbutton Operation) |
