Description
- Lead Free
- ADA Compliant
- ANSI A177.1, NSF/ANSI 61, Section 9

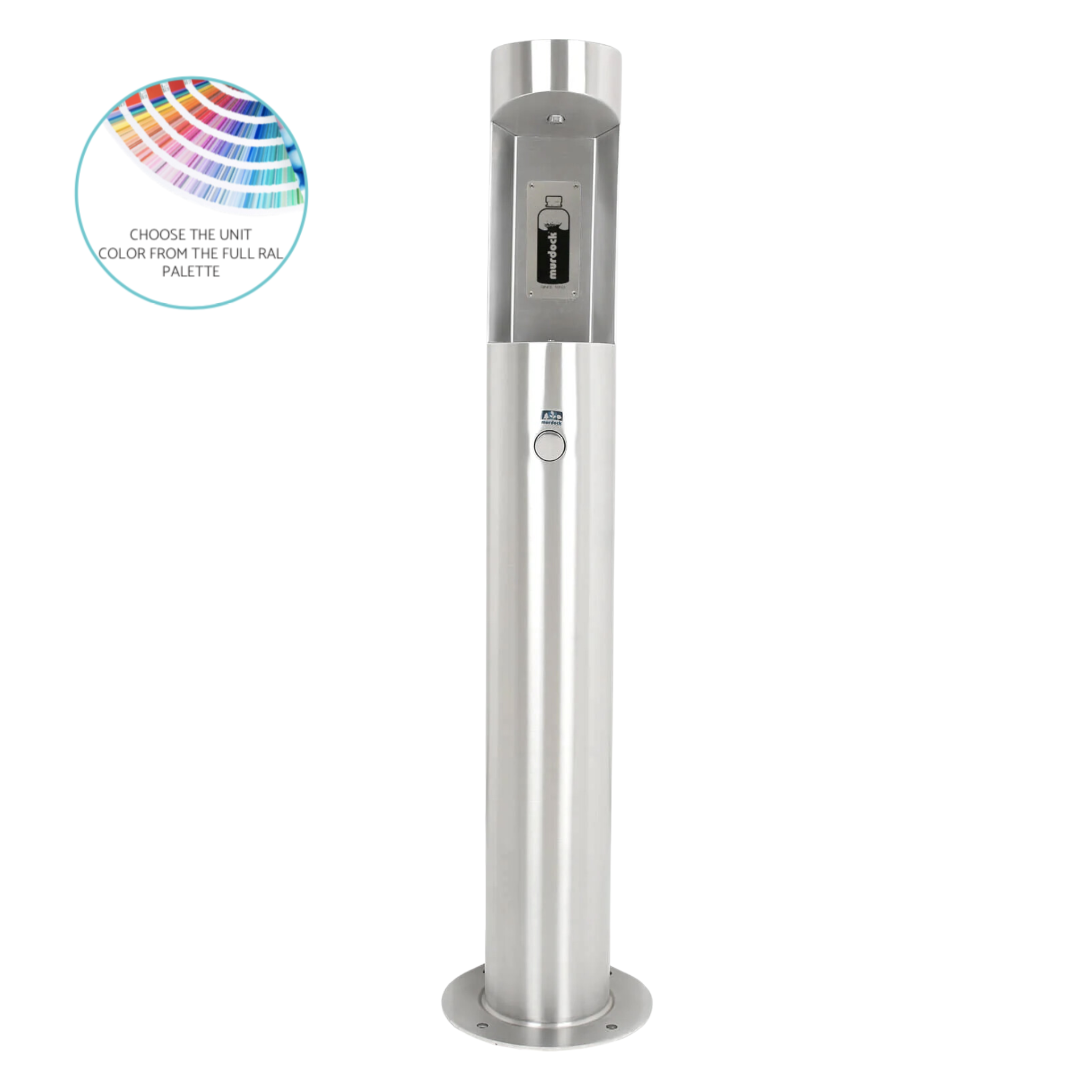

Stainless Steel Outdoor Pedestal Bottle Filler is operated by a Push Button.
Construction shall be heavy gauge, all stainless steel and pedestal base of bottle filler shall have four mounting holes.
Access covers shall be secured with vandal-resistant stainless steel screws. A self-closing push-button, needing less than 5 pounds force, shall activate an internally mounted valve.
Unit is certified to meet NSF/ANSI 61, Section 9, Public Law 111-380 (No-Lead) and CHSC 116875.
A pet fountain version is available with a -PF suffix option.
STANDARD FEATURES
- Adult ADA compliant
- Pushbutton operated Bottle filler
- Laminar flow water supply to bottle filler
- Resistant to sunlight, heat, moisture and wear
-
14 Gauge, Heavy Duty Stainless Steel Construction with Corrosion and Scratch Resistant Finish
- 100-Mesh Inlet Strainer
- Access Cover, Heavy Duty Stainless Steel, Vandal Resistant
OPTIONS
| FRU1 | Underground freeze-resistant single valve (push-button operation only, less filter) |
| FRU2 | Underground freeze-resistant double valves (push-button operation only, less filter)¹ |
| HB1 | Hose bibb with vacuum breaker ¹ ² |
| HB3 | Vandal resistant Hose bibb with vacuum breaker ¹ ² |
| IAP | In-ground anchor plate ¹ |
| LOGO | Customer specified logo ¹ |
| PF | Pet fountain receptor ¹ |
Options Notes:
¹ See separate option sheet.
² This option is not available freeze-resistant.
GY Series overview
| Product code | Material | No. of bowls | Pet fountain | Bottle filler | Barrier-free | Freeze-resistan | |
| GYM | 142.400.119 | Steel | 1 | No | Yes | Yes | Optional |
| GYM-PF | 142.400.113 | Steel | 1 | Yes | Yes | Yes | Optional |
| GYQ | 142.400.210 | Steel | 2 | No | Yes | Yes | Optional |
| GYQ-PF | 142.400.209 | Steel | 2 | Yes | Yes | Yes | Optional |
| M-OBF | 142.200.200 | Steel | - | No | Yes | No | Optional |
| M-OBF-PF | 142.200.105 | Steel | - | Yes | Yes | No | Optional |
| GYE14 | 142.400.214 | Steel | 1 | No | Yes | Yes | Optional |
| GYE24 | 142.500.928 | Steel | 2 | No | Yes | Yes | Optional |
